Intake Manifold Removal
WARNING: This page is about a different variant/trim than selected.

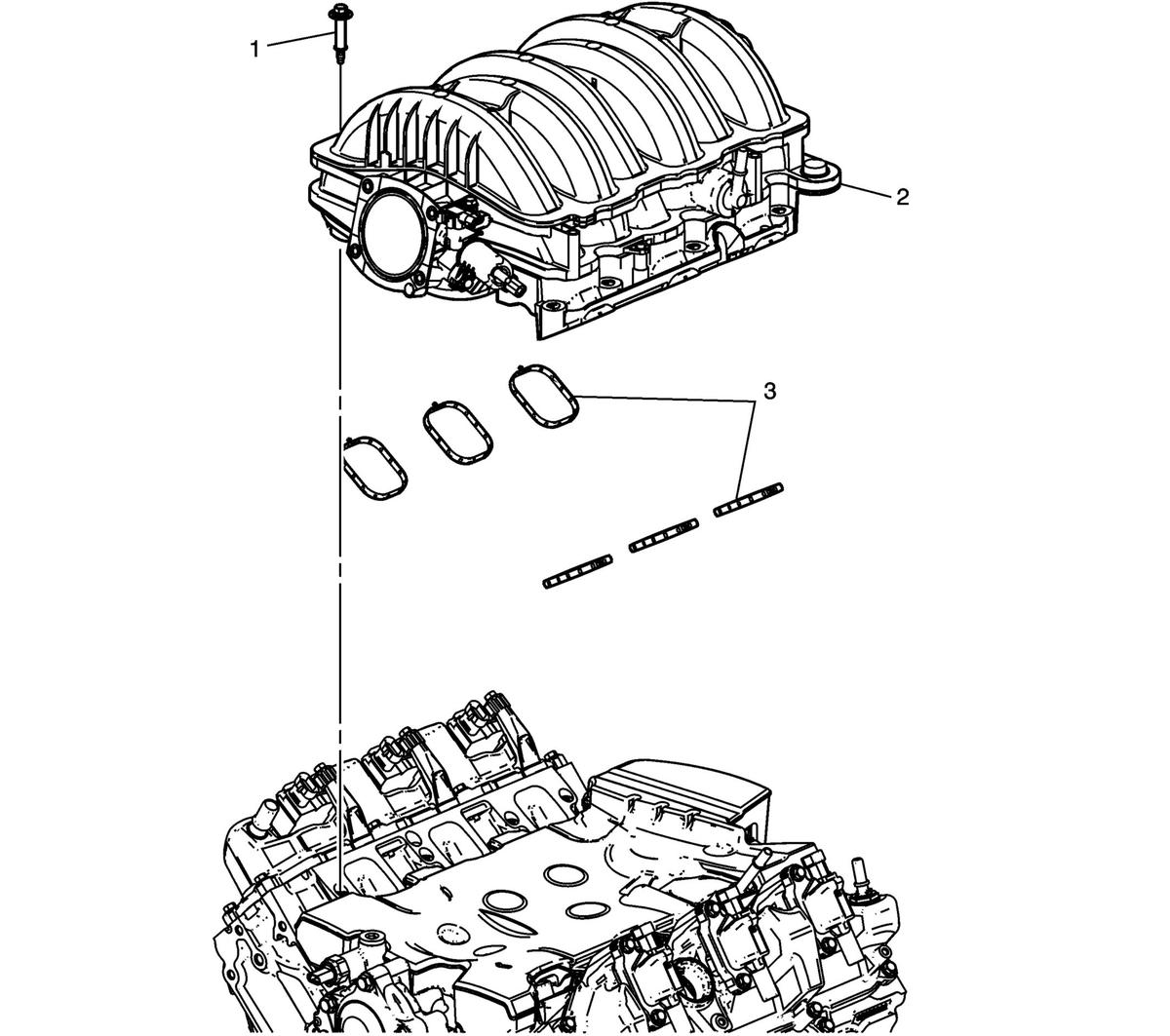

Intake Manifold Removal
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Bolt |
| 2 | Intake Manifold |
| 3 | Intake Manifold Gasket Refer to Replacing Engine Gaskets . |
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Bolt |
| 2 | Intake Manifold |
| 3 | Intake Manifold Gasket Refer to Replacing Engine Gaskets . |
