Exhaust Manifold Removal - Right Side
WARNING: This page is about a different variant/trim than selected.

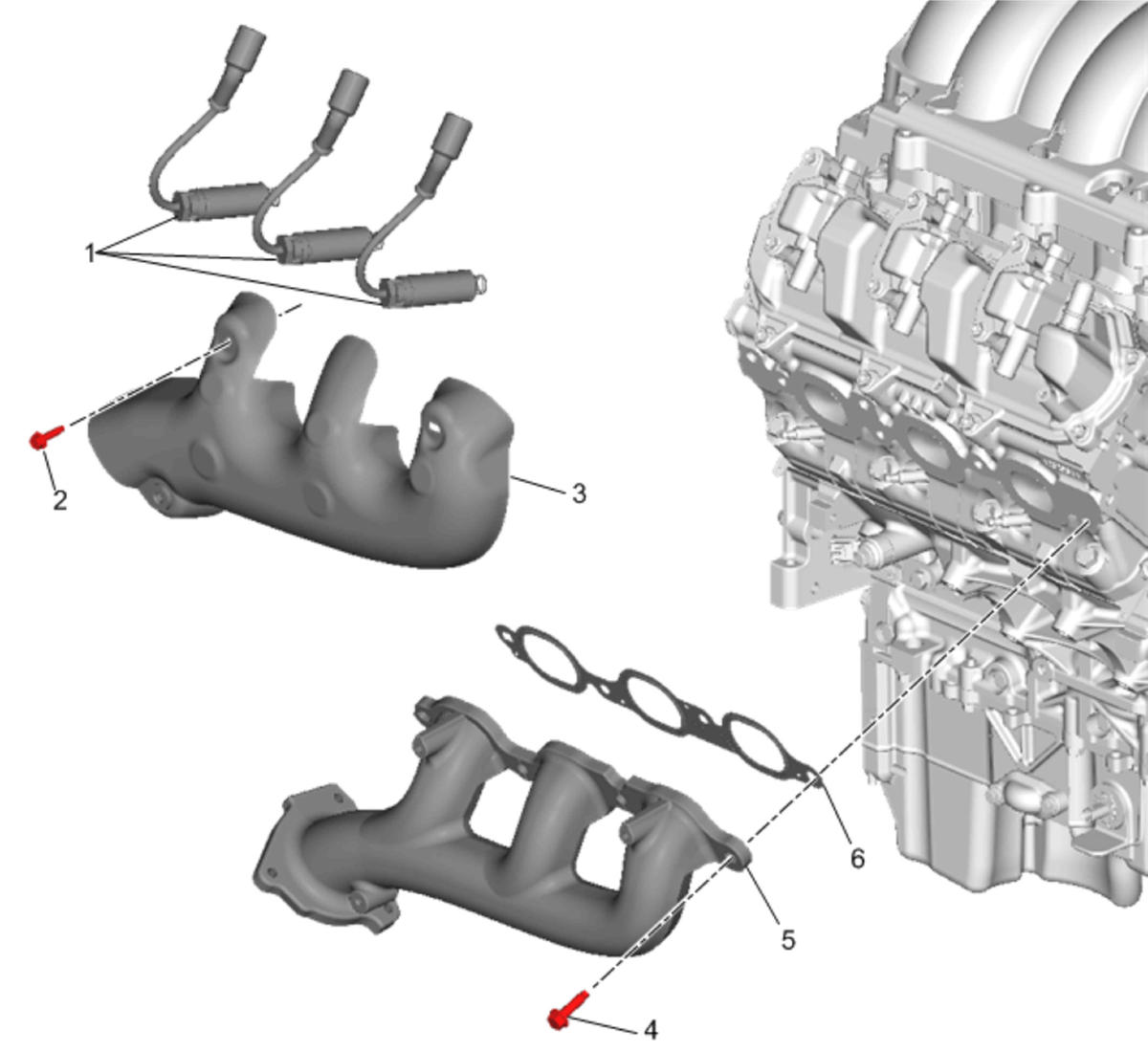

| Callout | Component Name |
|---|---|
| 1 | Spark Plug Wire |
| 2 | Heat Shield Bolt |
| 3 | Exhaust Manifold Heat Shield |
| 4 | Exhaust Manifold Bolt Procedure Discard bolt. DO NOT reuse. |
| 5 | Exhaust Manifold |
| 6 | Exhaust Manifold Gasket Procedure Discard gasket. DO NOT reuse. Replacing Engine Gaskets |
