Drive Belt Tensioner Replacement - Accessory

WARNING: This page is about a different variant/trim than selected.

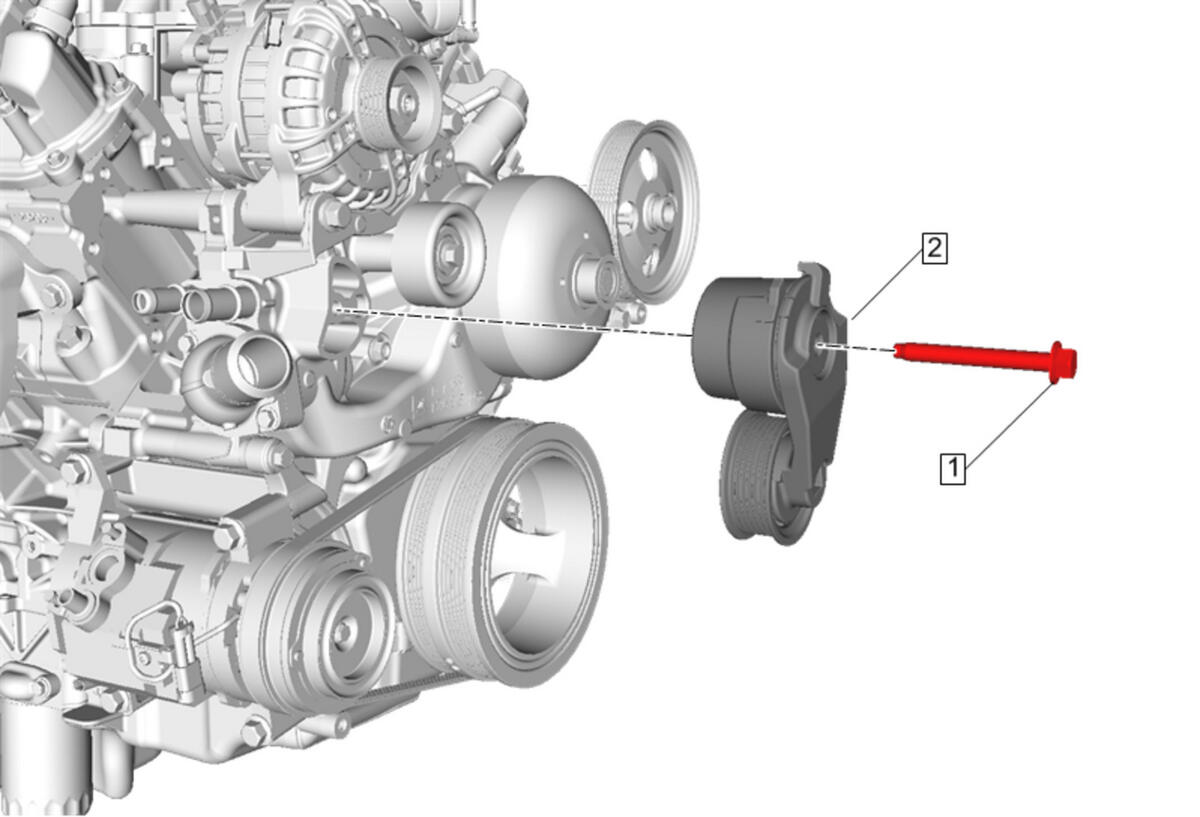

GM4846797Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drive Belt Replacement - Accessory
1 Drive Belt Tensioner Bolt
CAUTION:

Refer to Fastener Caution .


tighten
58 N.m (43 lb ft)
2 Drive Belt Tensioner
