Drive Belt Idler Pulley Replacement

WARNING: This page is about a different variant/trim than selected.

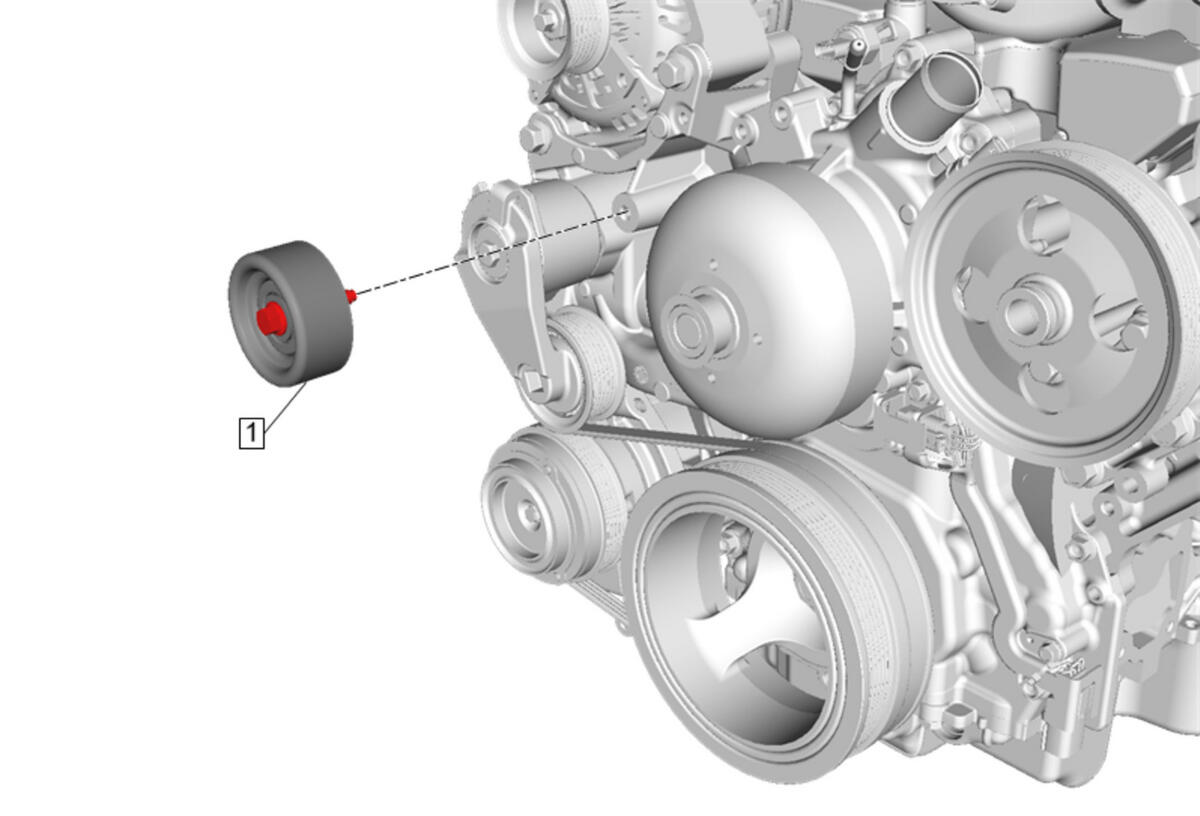

GM4845700Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drive Belt Replacement - Accessory
1 Belt Idler Pulley
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Loosen belt idler pulley fastener.
  2. Remove the belt idler pulley assembly.

tighten
25 N.m (18 lb ft)
