Installation Procedure

WARNING: This page is about a different variant/trim than selected.

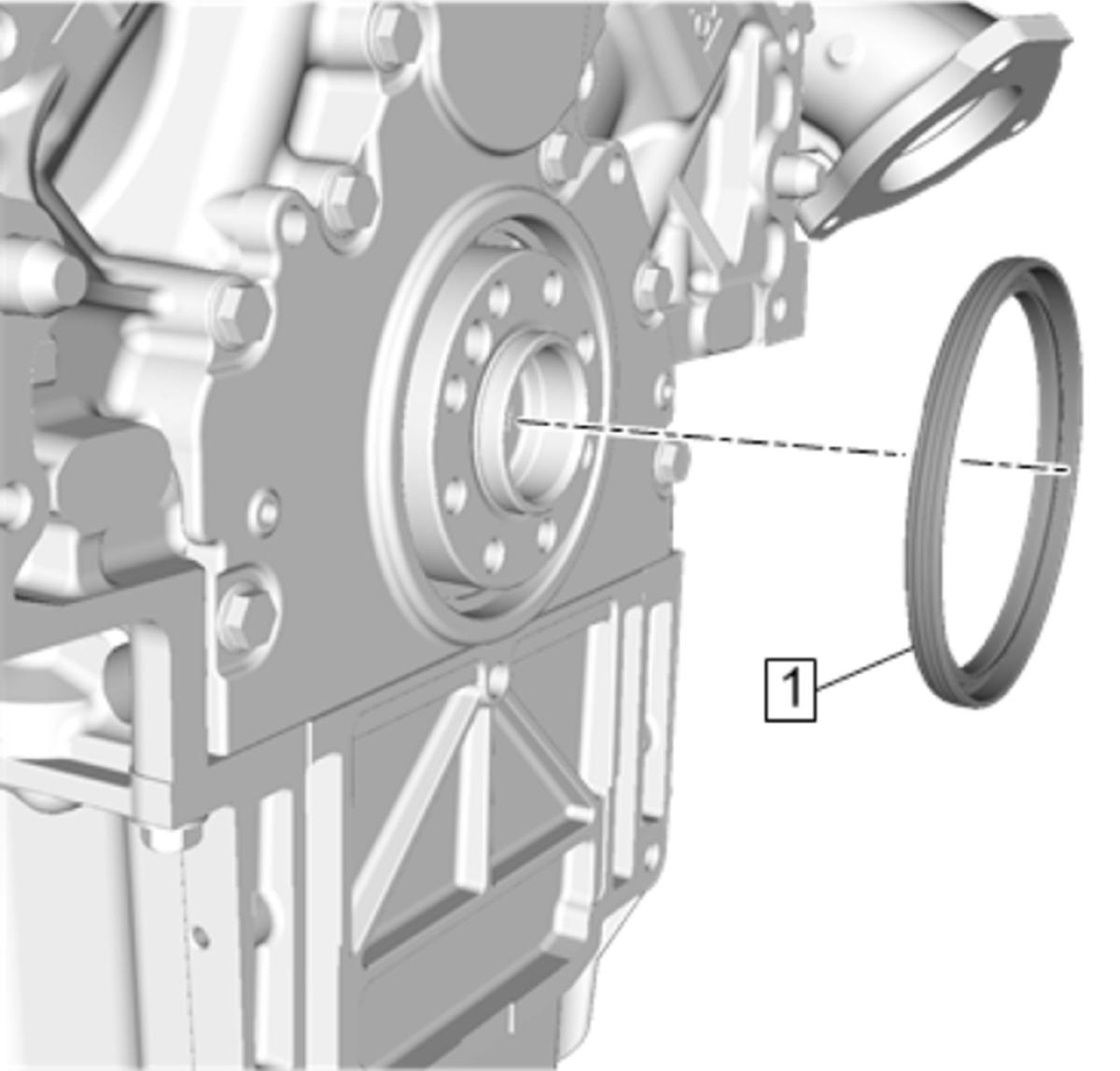

  1. GM4866297Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Rear Oil Seal (1) - Install NEW - Crankshaft Rear Oil Seal Installation

  2. GM4861721Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Flex Plate (2) - Install - Automatic Transmission Flex Plate Replacement
