Installation Procedure

WARNING: This page is about a different variant/trim than selected.

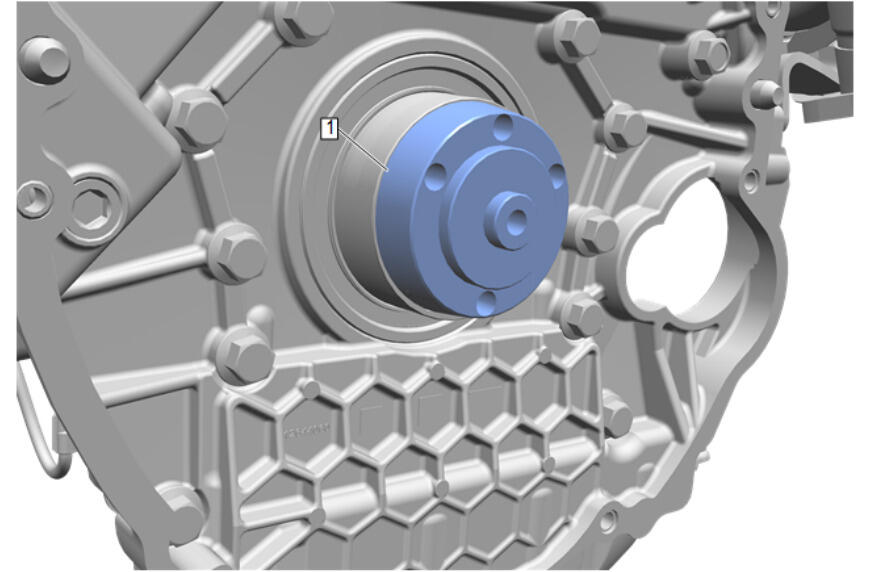

  1. GM5438940Courtesy of GENERAL MOTORS COMPANY

    Install the J-41479-2A  Crankshaft Rear Oil Seal Installation Guide (1)

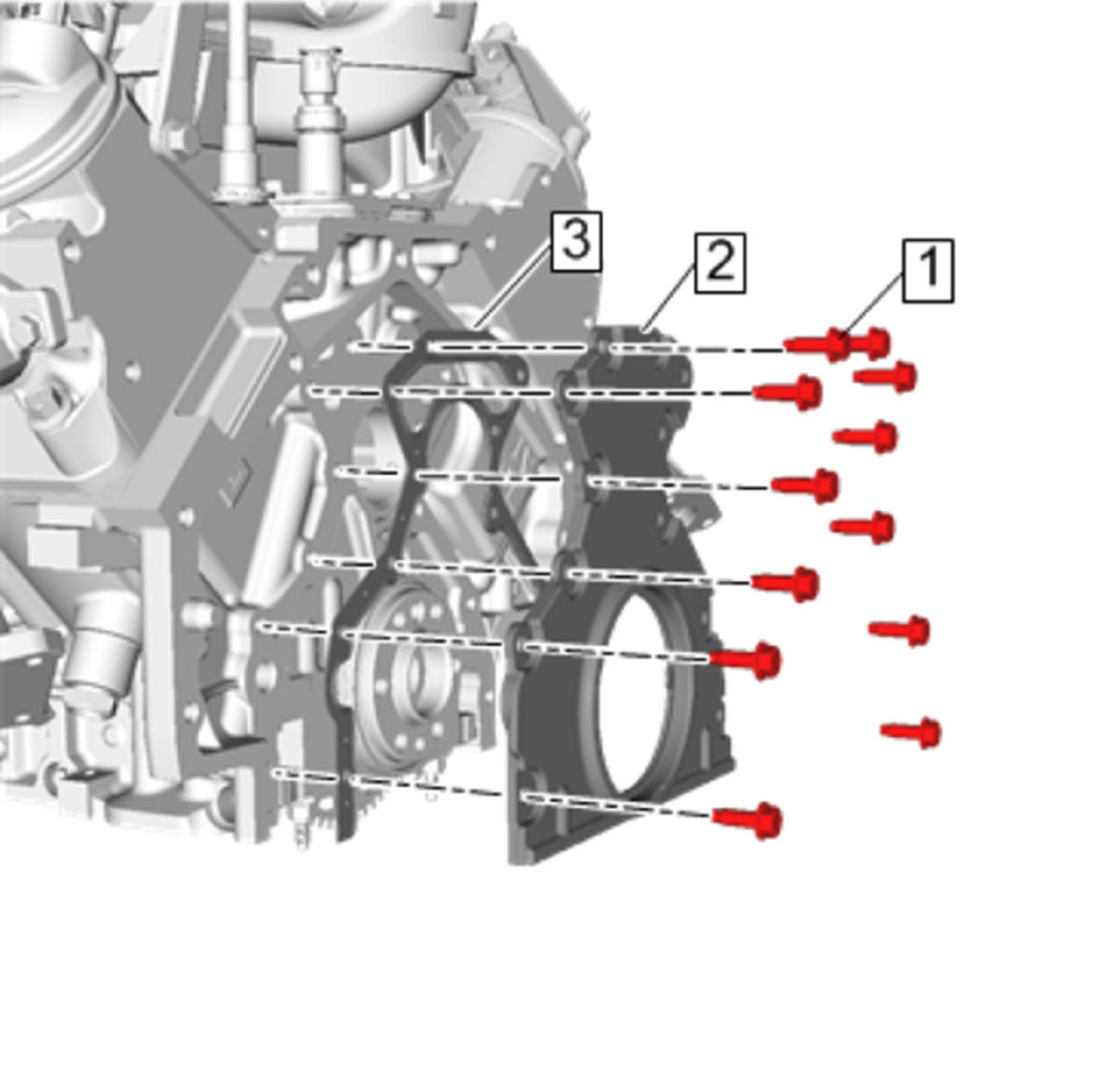

  2. GM4866804Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Rear Oil Seal Housing (2) - Install - Crankshaft Rear Oil Seal Housing Installation

  3. GM5022568Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Rear Oil Seal (1) - Install NEW - Crankshaft Rear Oil Seal Replacement

  4. Oil Pan - Install - Oil Pan Replacement
  5. GM4861721Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Flex Plate (2) - Install - Automatic Transmission Flex Plate Replacement
