Crankshaft Rear Oil Seal Housing Removal
WARNING: This page is about a different variant/trim than selected.

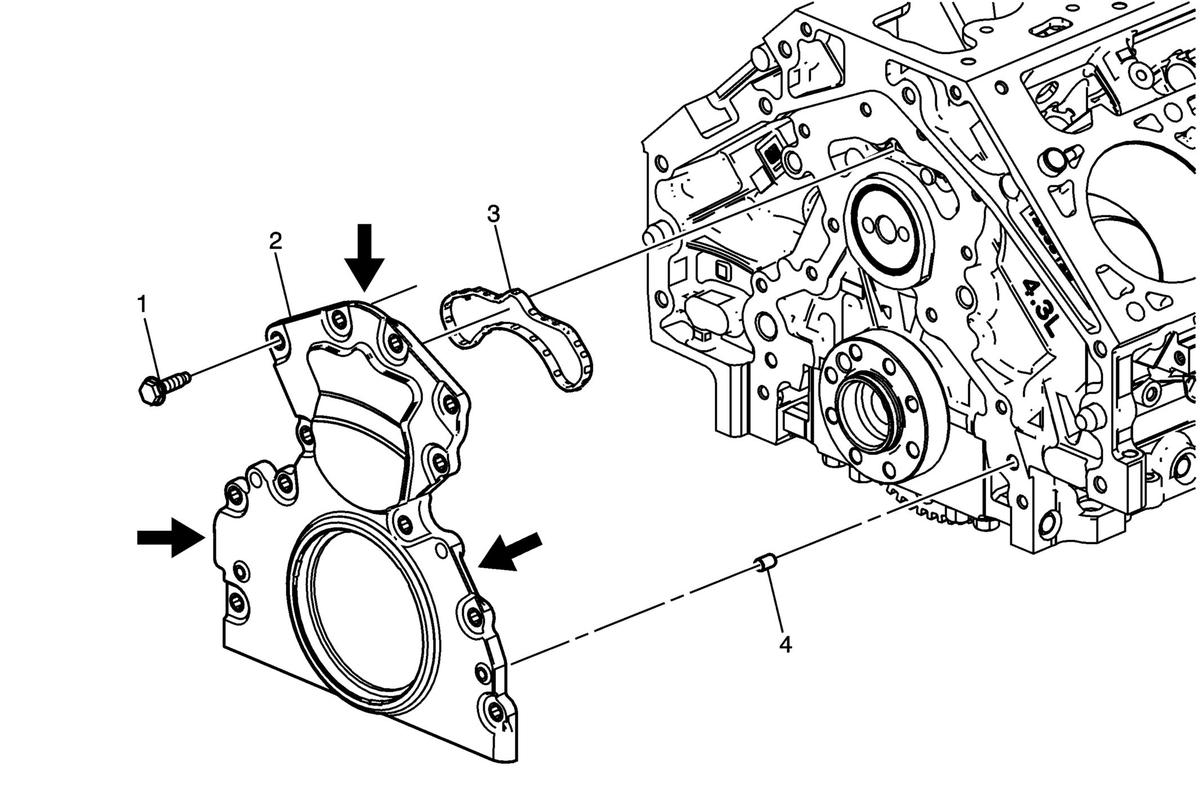

| Callout | Component Name |
|---|---|
| 1 | Crankshaft Rear Oil Seal Housing Bolt |
| 2 | Crankshaft Rear Oil Seal Housing
NOTE:
To separate the rear housing from the engine, pry at the points that are shown by the arrows. |
| 3 | Crankshaft Rear Oil Seal Housing Gasket Refer to Replacing Engine Gaskets . |
| 4 | Crankshaft Rear Oil Seal Housing Locating Pin |
