Removal Procedure
WARNING: This page is about a different variant/trim than selected.
Crankshaft Balancer (2) - Remove - Crankshaft Balancer Replacement
- Install EN-51096 crankshaft rear seal remover onto GE-23907-1 slide hammer.

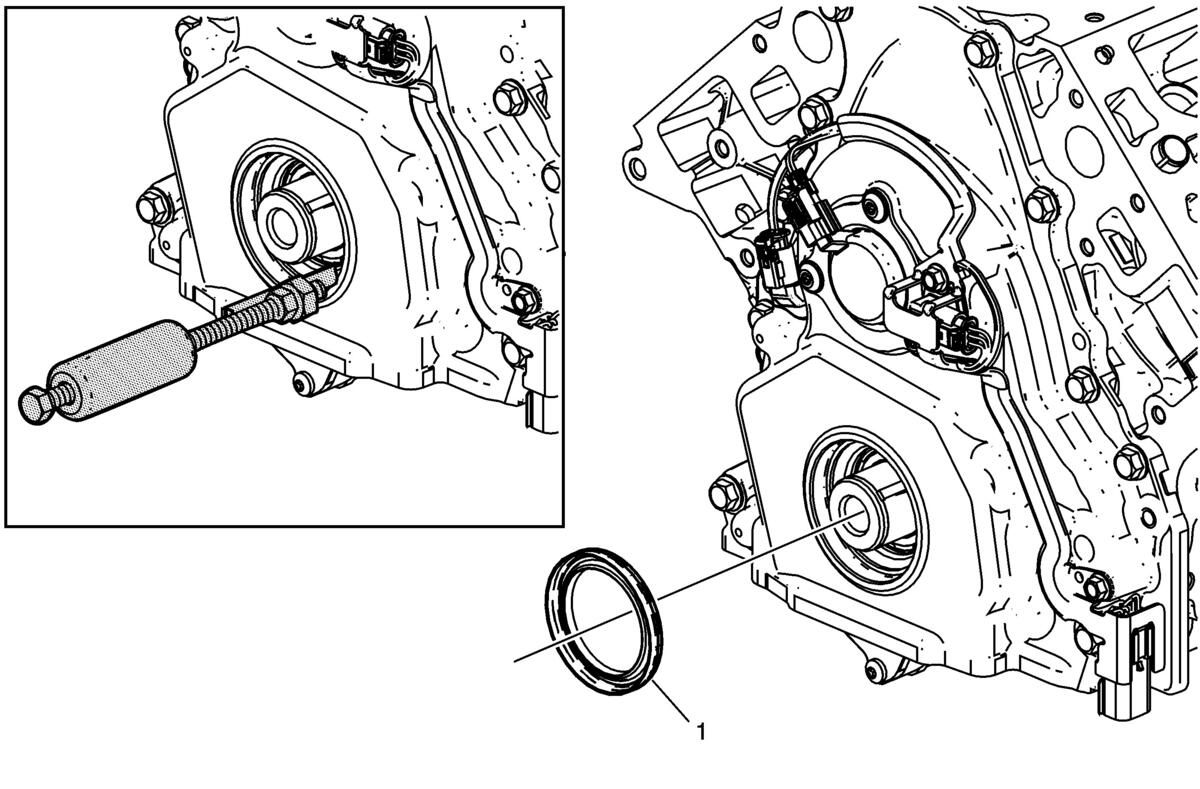

Slide the small bend of EN-51096 crankshaft rear seal remover between the lip of the front seal and crankshaft. Ensure that the small bend of EN-51096 crankshaft rear seal remover engages the rear side of the front seal (1). While rotating EN-51096 crankshaft rear seal remover and GE-23907-1 slide hammer around the seal, use the slide hammer to remove the seal.
NOTE:
EN-51096 crankshaft rear seal remover has two ends. The end with the small bend will be used to remove the seal.
