Crankshaft Front Oil Seal Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name

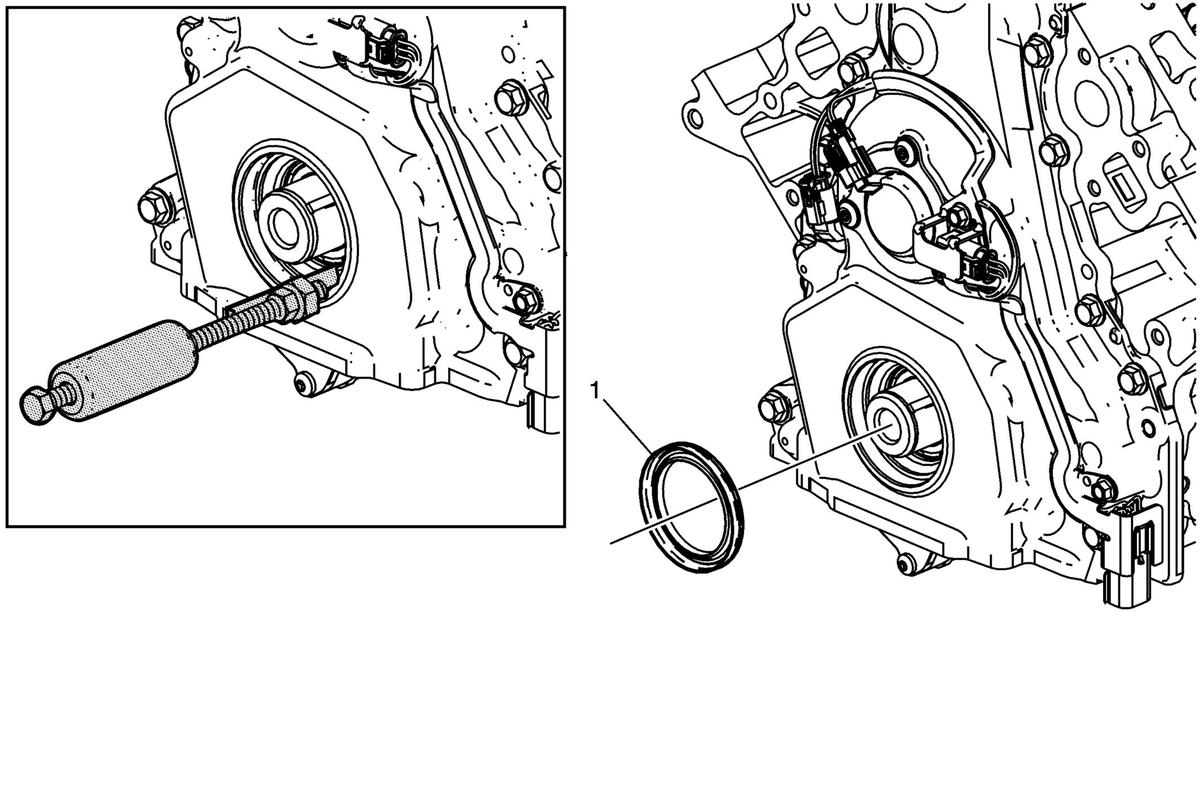

1	Crankshaft Front Oil Seal Procedure Install EN-51096 crankshaft rear seal remover onto GE-23907-1 slide hammer. NOTE: EN-51096 crankshaft rear seal remover has two ends. The end with the small bend will be used to remove the seal. Slide the small bend of EN-51096 crankshaft rear seal remover between the lip of the front seal and crankshaft. Ensure that the small bend of EN-51096 crankshaft rear seal remover engages the rear side of the front seal (1). While rotating EN-51096 crankshaft rear seal remover and GE-23907-1 slide hammer around the seal, use the slide hammer to remove the seal. Special Tools EN-51096 Crankshaft Rear Seal Remover GE-23907-1 Slide Hammer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Crankshaft Front Oil Seal

Procedure

NOTE:

EN-51096 crankshaft rear seal remover has two ends. The end with the small bend will be used to remove the seal.

Slide the small bend of EN-51096 crankshaft rear seal remover between the lip of the front seal and crankshaft. Ensure that the small bend of EN-51096 crankshaft rear seal remover engages the rear side of the front seal (1). While rotating EN-51096 crankshaft rear seal remover and GE-23907-1 slide hammer around the seal, use the slide hammer to remove the seal.

Special Tools

For equivalent regional tools, refer to Special Tools .
