Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener tighten ing Caution .

NOTE:
With the CMP actuator properly positioned onto the camshaft, the CMP actuator solenoid valve can be threaded completely into the camshaft using light hand pressure. tighten by hand until snug.

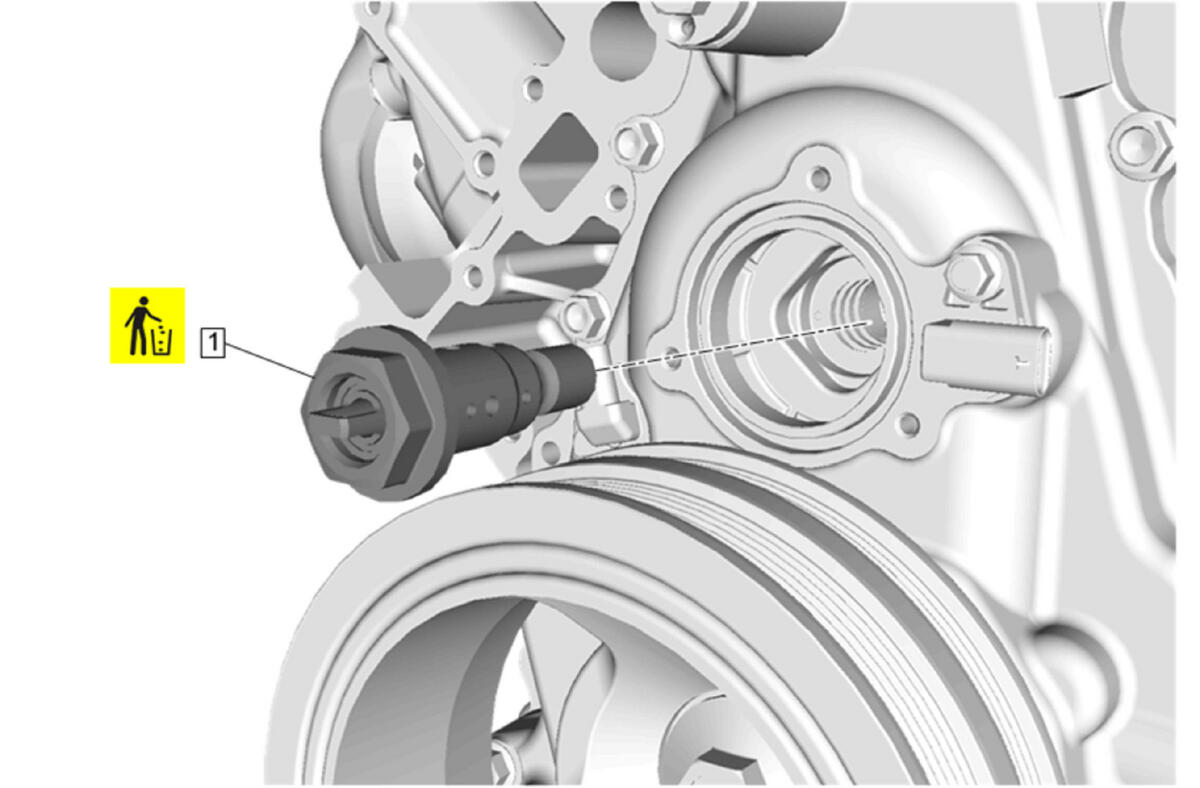

Camshaft Position Actuator Solenoid Valve (1) - Install NEW and tighten
1. First Pass:65 N.m (48 lb ft)
2. Final Pass:90 degrees - J 45059 Angle Meter.
Courtesy of GENERAL MOTORS COMPANY

J 42386-A Flywheel Holding Tool (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

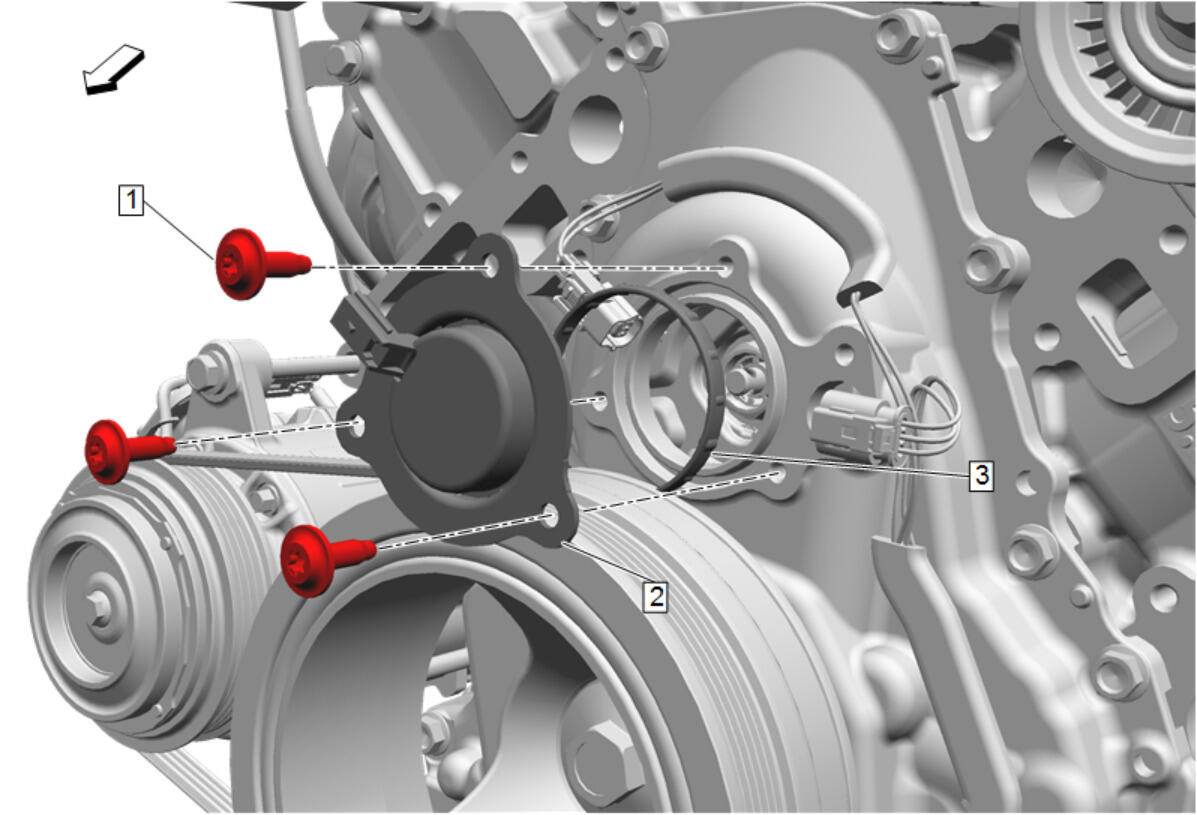

Camshaft Position Actuator Magnet (1) - Install - Camshaft Position Actuator Magnet Replacement
Starter - Install - Starter Replacement (LV1)
