Washer Pump Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
|
Preliminary Procedures
- Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the windshield washer pump hose is disconnected.
- Remove the windshield washer solvent container from the lower mount locating holes to gain access to the pump. Windshield Washer Solvent Container Replacement
|
| 1 |

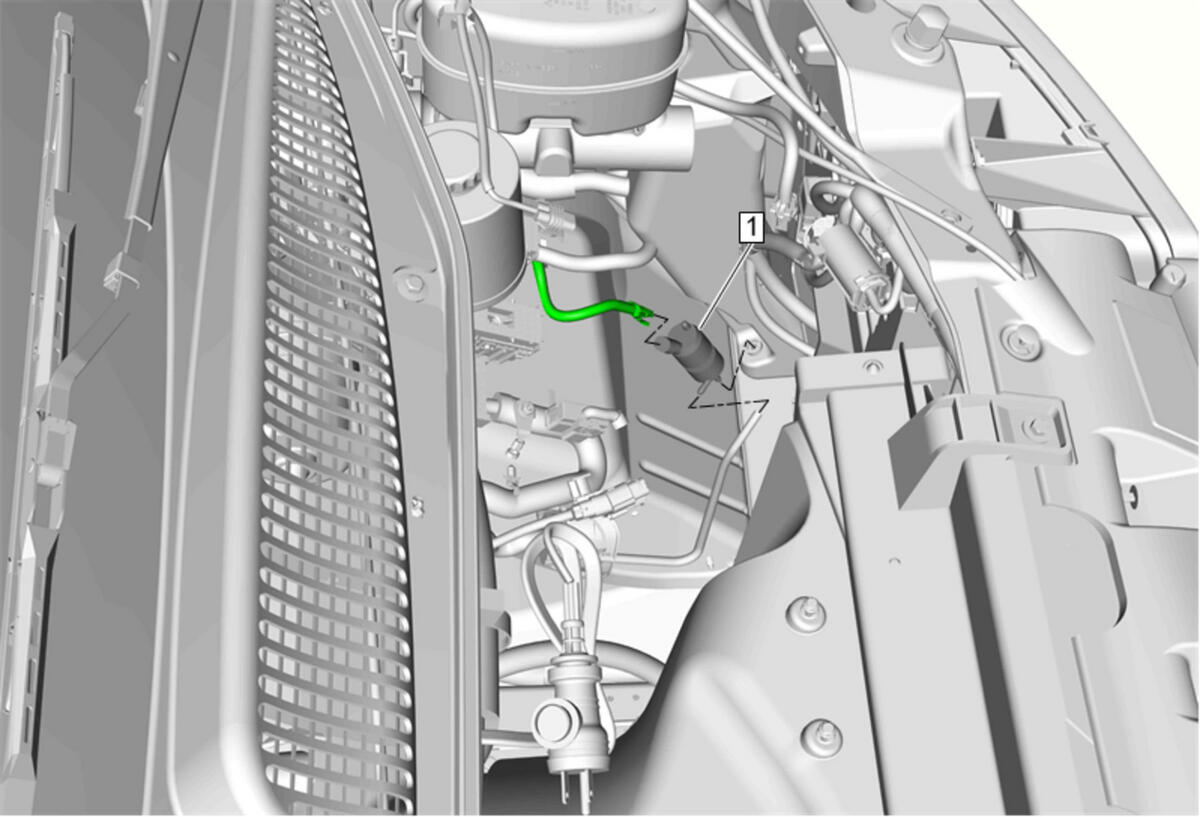

Windshield Washer Pump Procedure
- Disconnect the windshield washer pump hose.
- Disconnect the electrical connector.
- Twist and lift in opposite directions to disengage the windshield washer pump from the windshield washer solvent container and grommet.
|
