Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

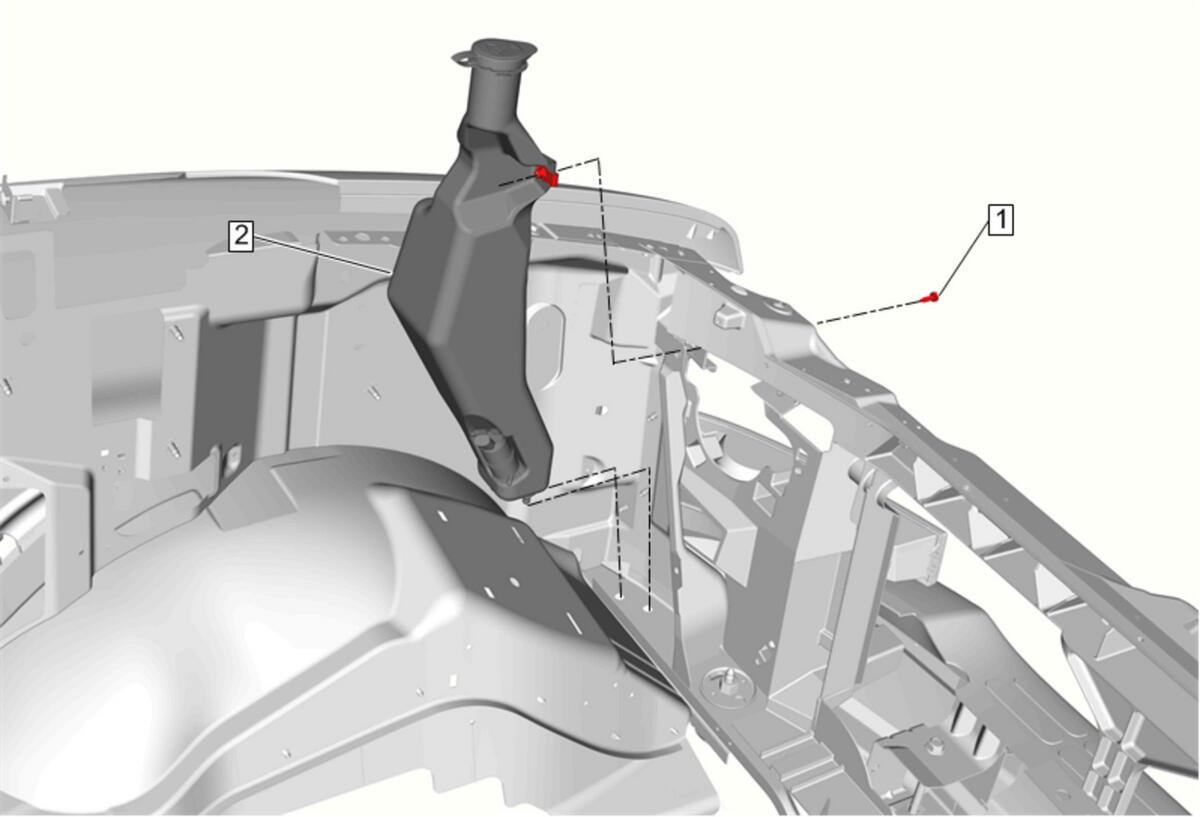

Callout	Component Name
Preliminary Procedures Place a drain pan under the vehicle. Disconnect the electrical connector. Disconnect the windshield washer pump hose.
1	Windshield Washer Solvent Container Bolt Procedure CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Windshield Washer Solvent Container Procedure Lift the windshield washer solvent container from the locating holes in the front end lower panel support.

Callout

Component Name

Preliminary Procedures

Place a drain pan under the vehicle.
Disconnect the electrical connector.
Disconnect the windshield washer pump hose.

Windshield Washer Solvent Container Bolt
Procedure

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Windshield Washer Solvent Container
Procedure
Lift the windshield washer solvent container from the locating holes in the front end lower panel support.
