Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

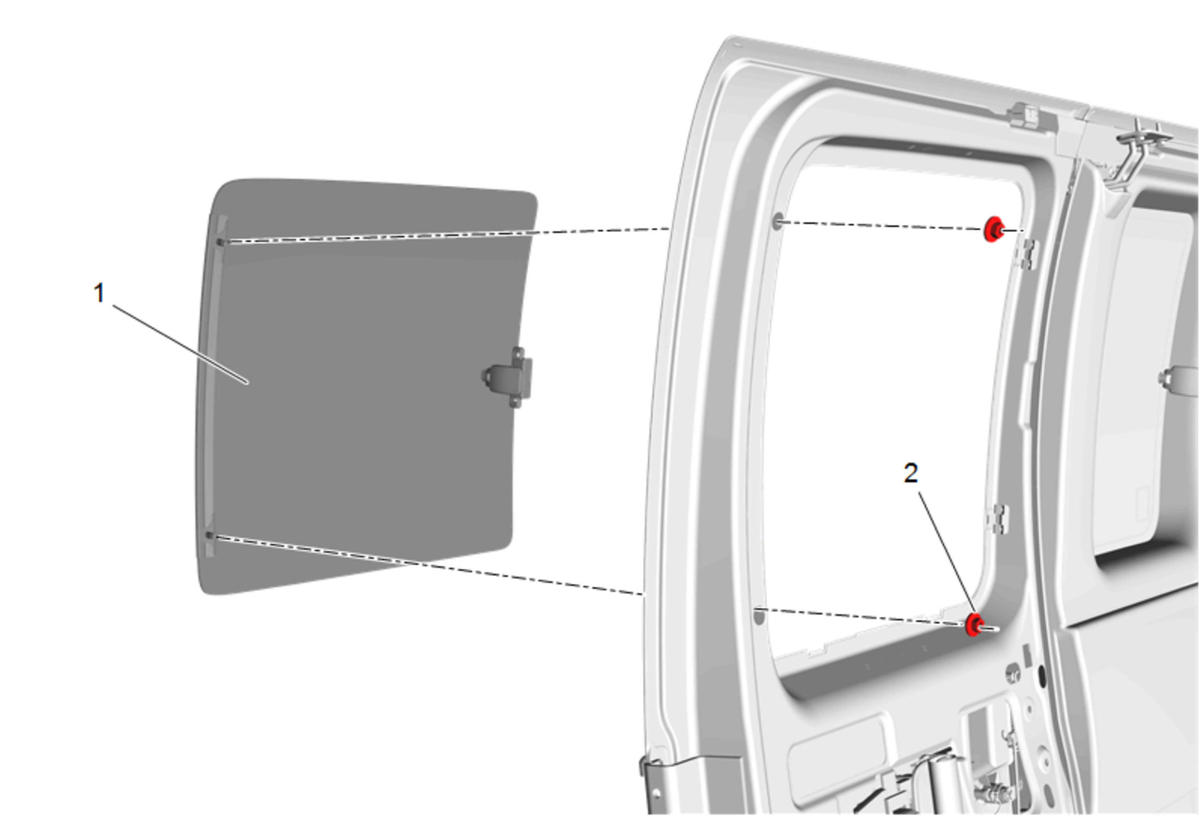

  1. GM5145842Courtesy of GENERAL MOTORS COMPANY

    Install the window and hinge assembly (1) to the vehicle.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 nuts (2) that retain the hinge to the vehicle and tighten to 10 N.m (89 lb in).

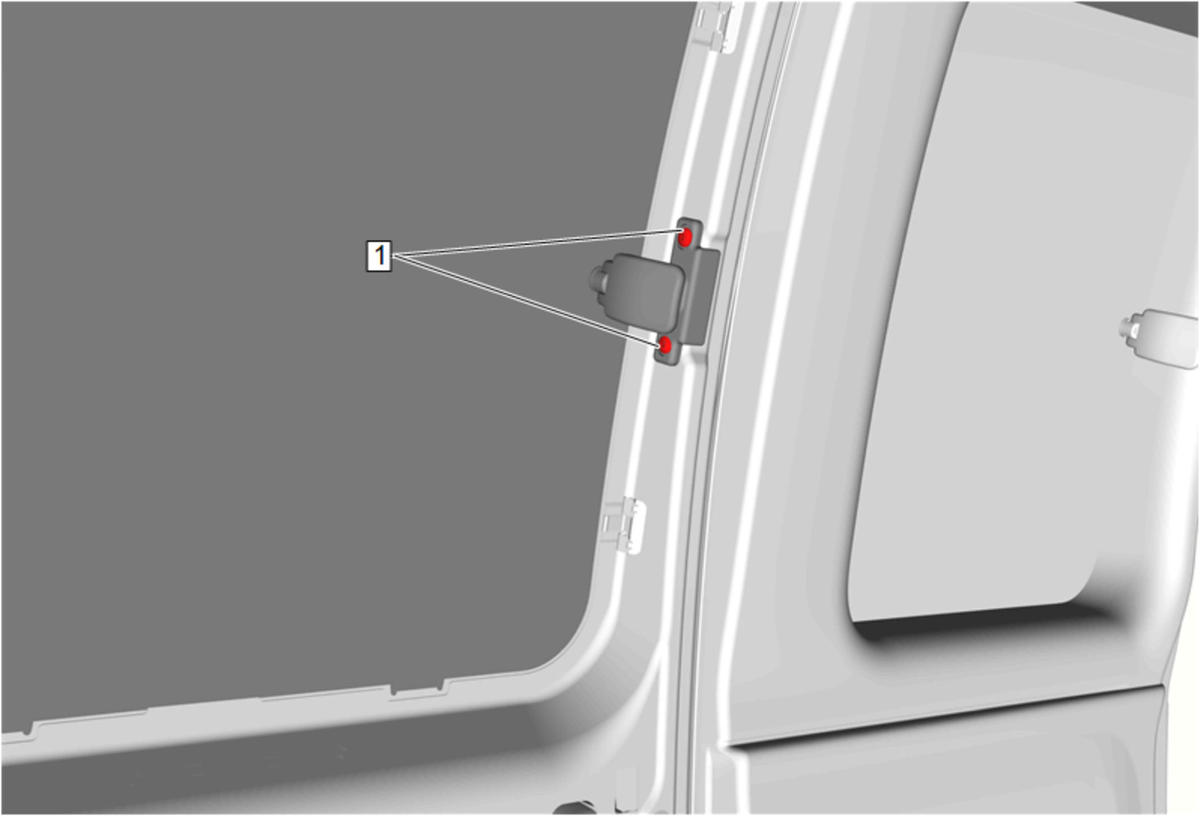

  3. GM5145826Courtesy of GENERAL MOTORS COMPANY

    Install 2 new rivets (1) that retains the latch to the vehicle.

  4. Body Side Rear Garnish Molding - Install - Body Side Rear Garnish Molding Replacement
