Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4866340Courtesy of GENERAL MOTORS COMPANY

    Sliding Rear Side Door Trim Panel(2) - Remove - Sliding Rear Side Door Trim Panel Replacement

  2. GM4855694Courtesy of GENERAL MOTORS COMPANY

    Body Side Trim Panel - Right Side(1) - Remove - Body Side Trim Panel Replacement - Right Side

  3. Support the sliding door.

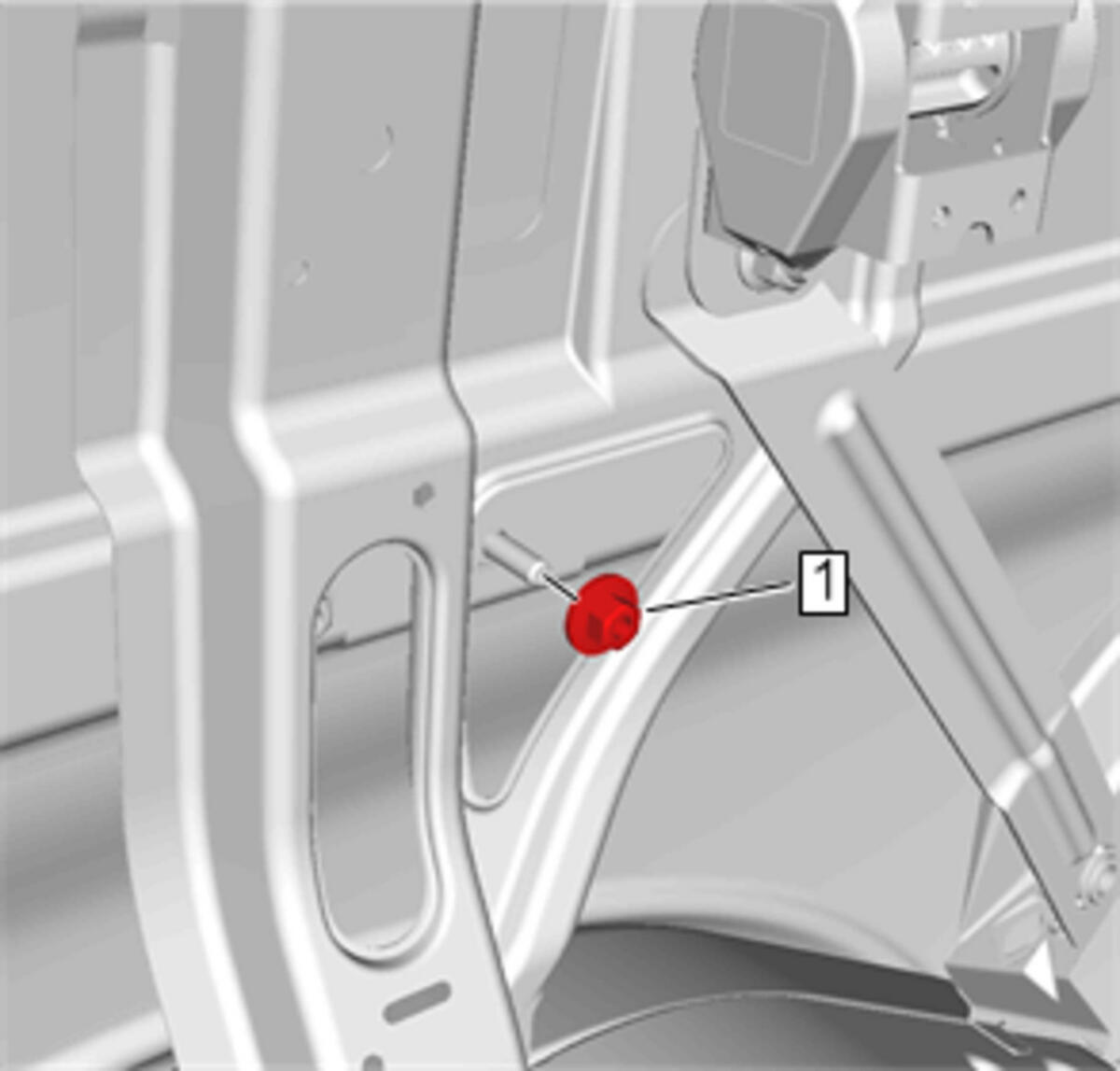

  4. GM4867284Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Center Track Bumper Nut (1) - Remove

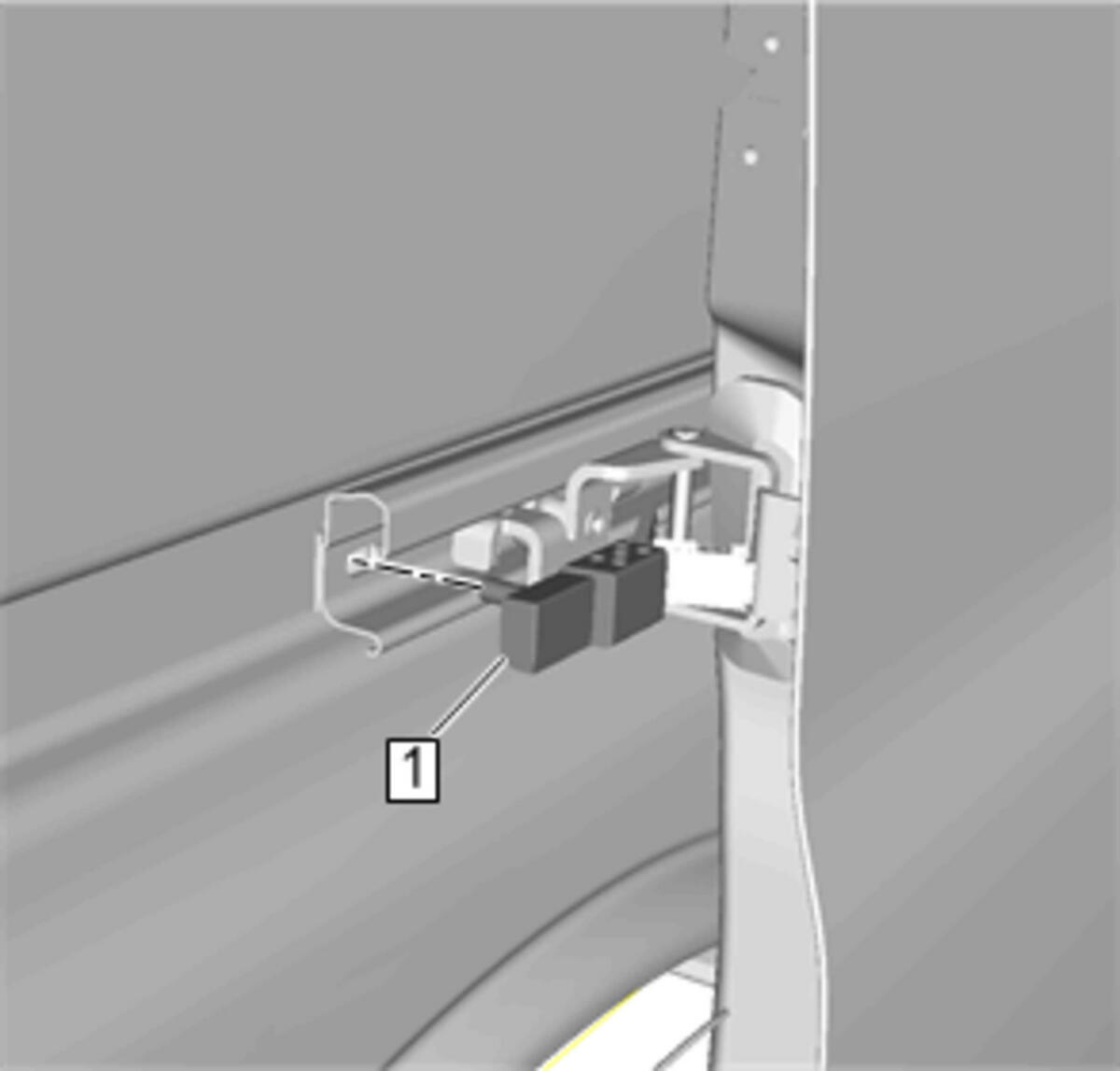

  5. GM4867283Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Center Track Bumper(1) - Remove

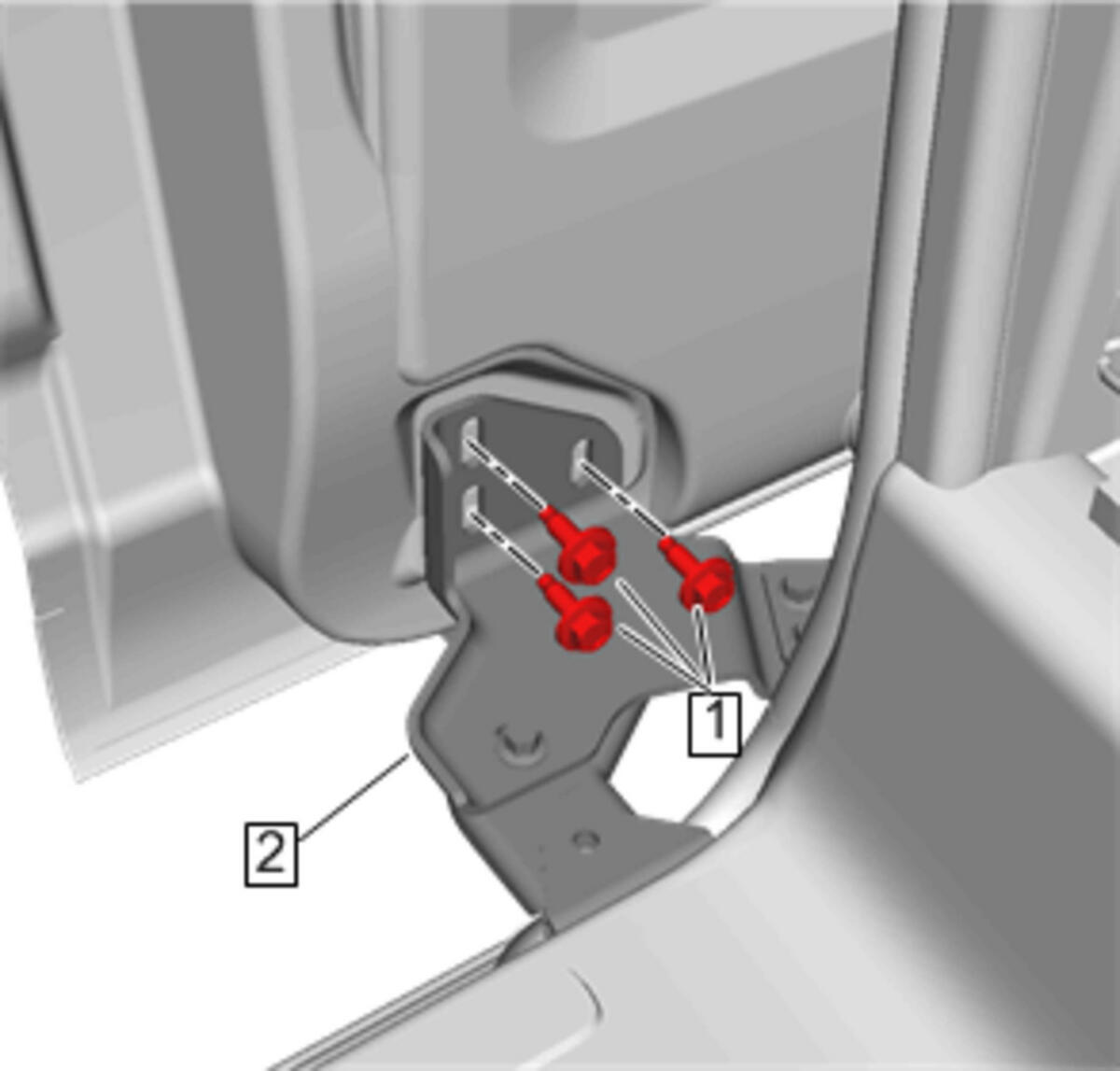

  6. GM4867287Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Lower Roller Bracket Bolt (1) - Remove[3x]

  7. Rear Side Door Lower Roller Bracket (2) - Remove

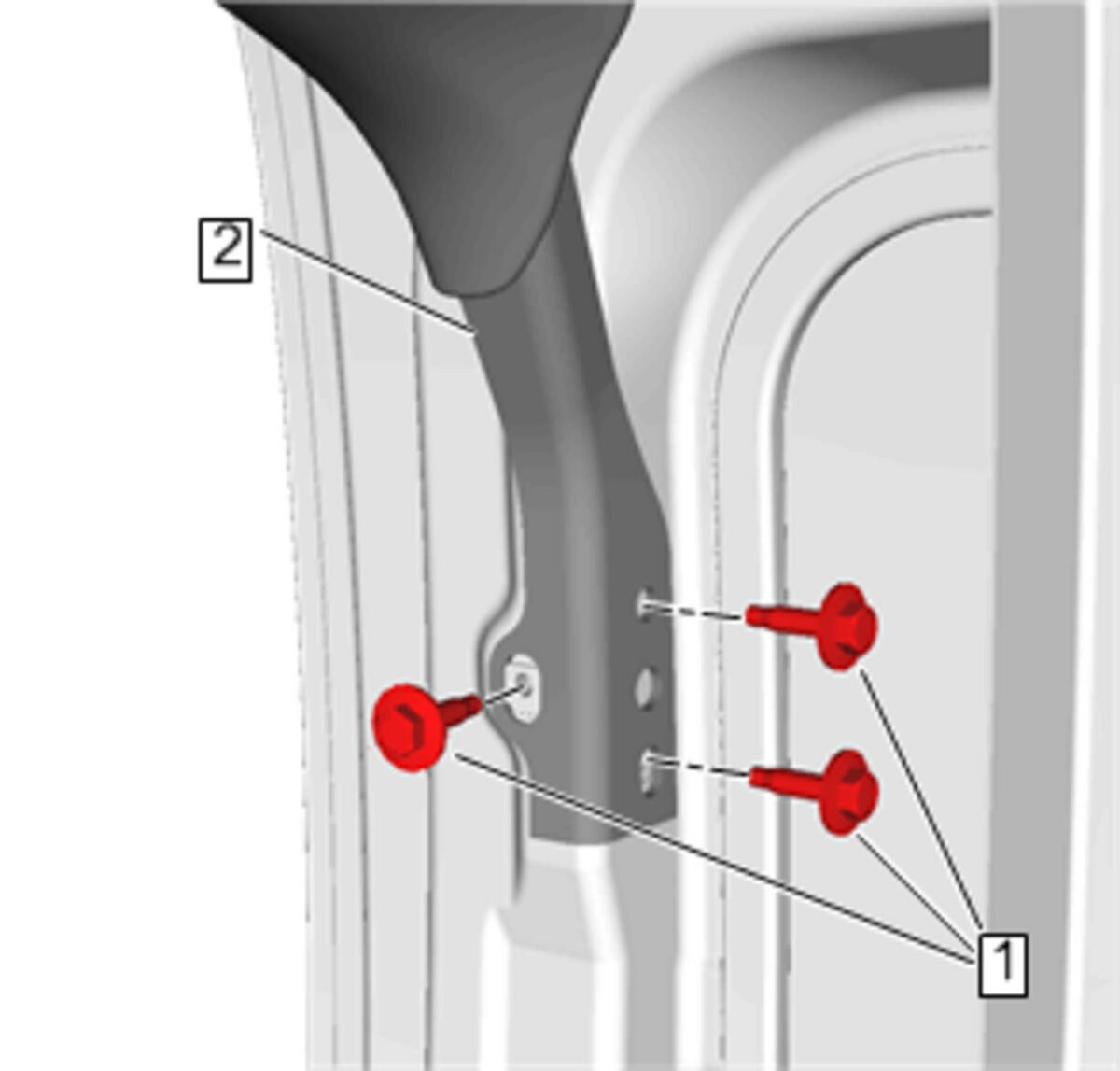

  8. GM4867300Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Upper Roller Bracket Bolt(1) - Remove[3x]

  9. Rear Side Door Upper Roller Bracket (2) - Remove
  10. GM4867283Courtesy of GENERAL MOTORS COMPANY

    Sliding Rear Side Door (1) - Remove

  11. Transfer components as necessary.
