Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

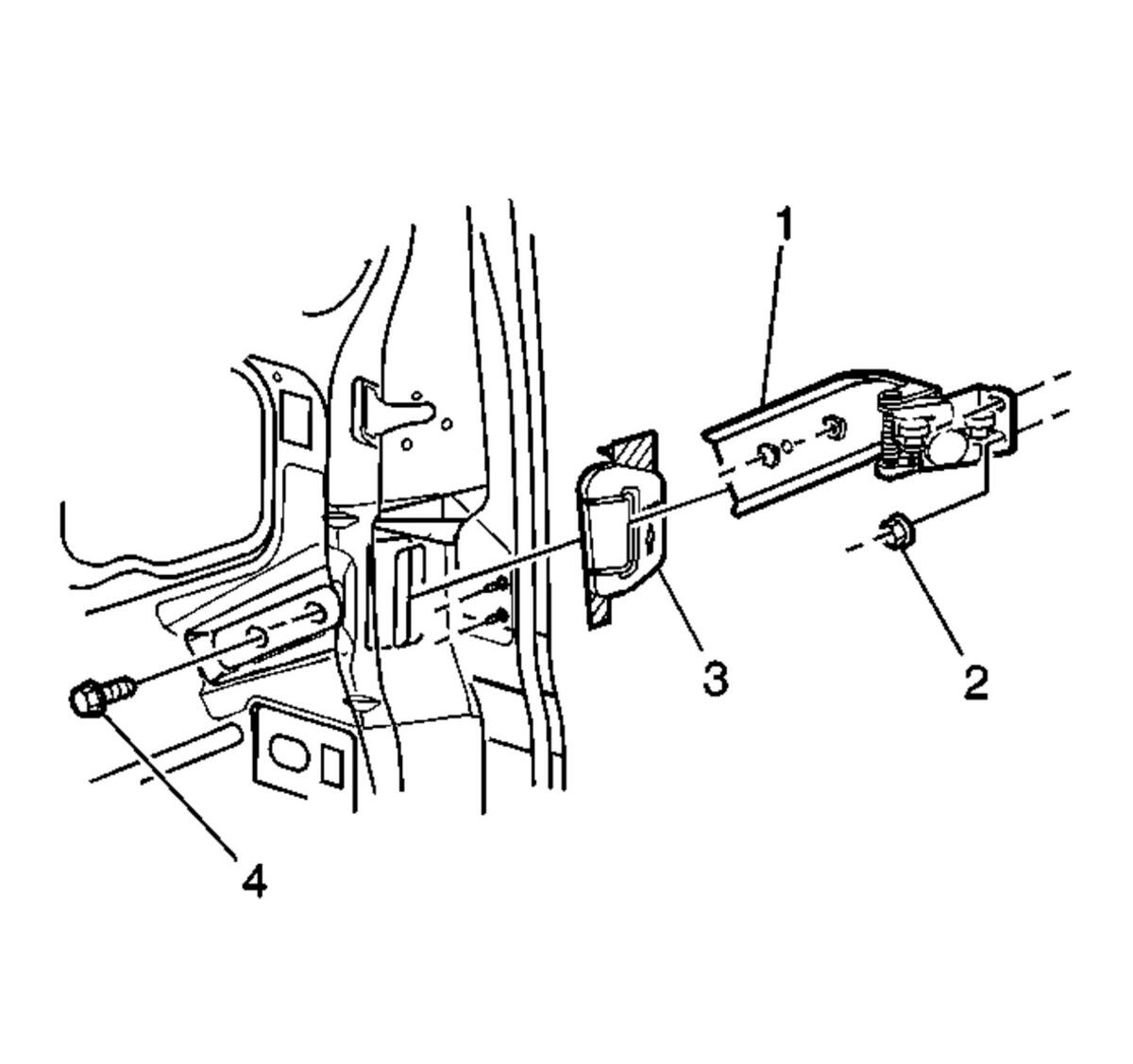

  1. GM334047Courtesy of GENERAL MOTORS COMPANY

    Remove the sliding door trim panel. Refer to Sliding Rear Side Door Trim Panel Replacement .

  2. Open the door partially and support the door.
  3. Remove the bolts (4) that retain the sliding side door center roller bracket (1) to the door.
  4. Remove the nuts (2) that retain the sliding side door center roller bracket (1) to the door.
  5. Slide the sliding side door center roller bracket (1) from the rear of the track.
  6. Remove the sliding side door center roller bracket (1) from the vehicle.
