Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

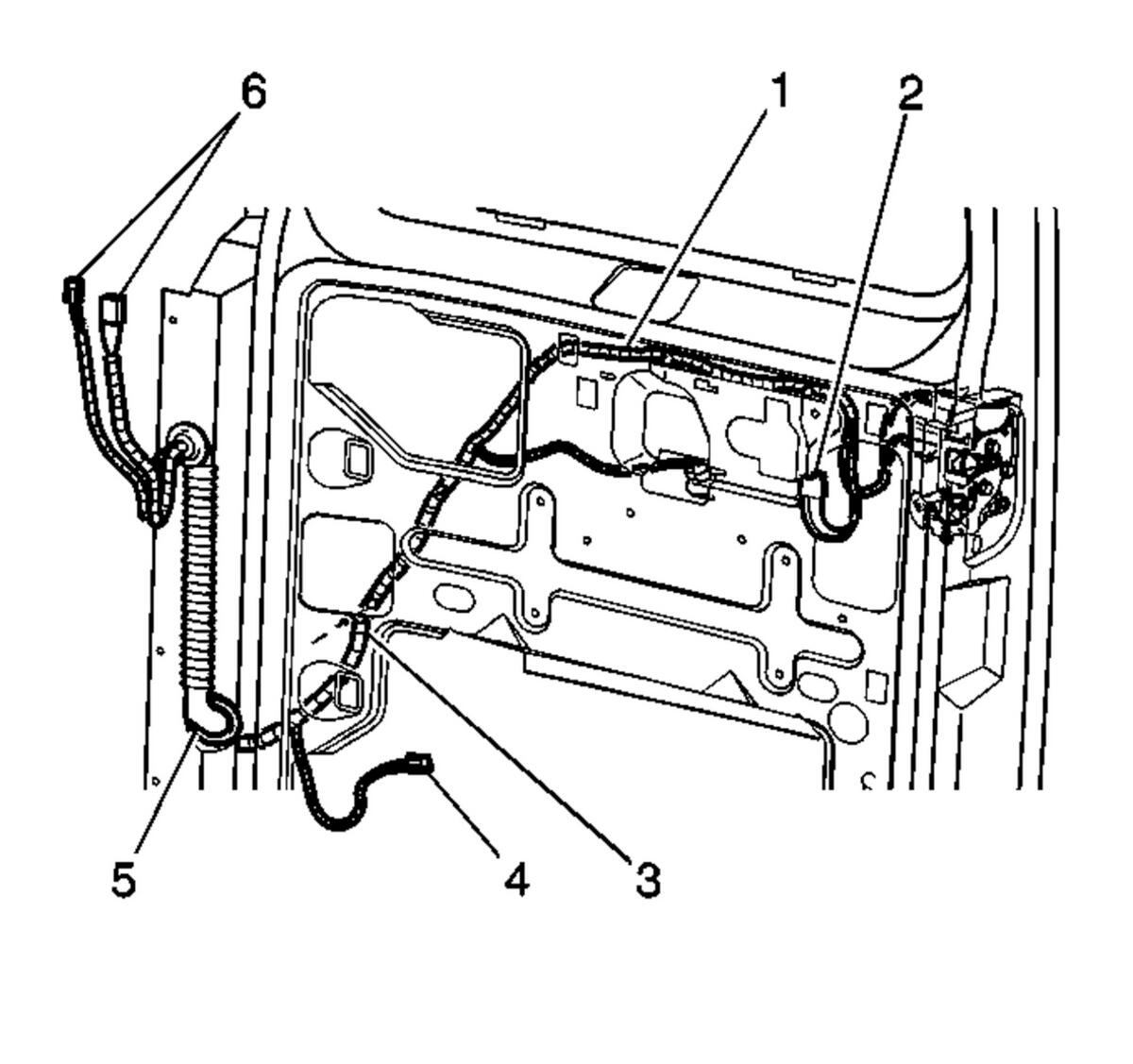

  1. GM334062Courtesy of GENERAL MOTORS COMPANY

    Remove the rear door trim panel. Refer to Rear Door Trim Panel Replacement - Left Side (E24) , or Rear Door Trim Panel Replacement - Right Side (E24) .

  2. Remove the electrical connectors (5) from the lock and the rear door speakers, if equipped.
  3. Remove the wiring harness retainers (3) from the door.

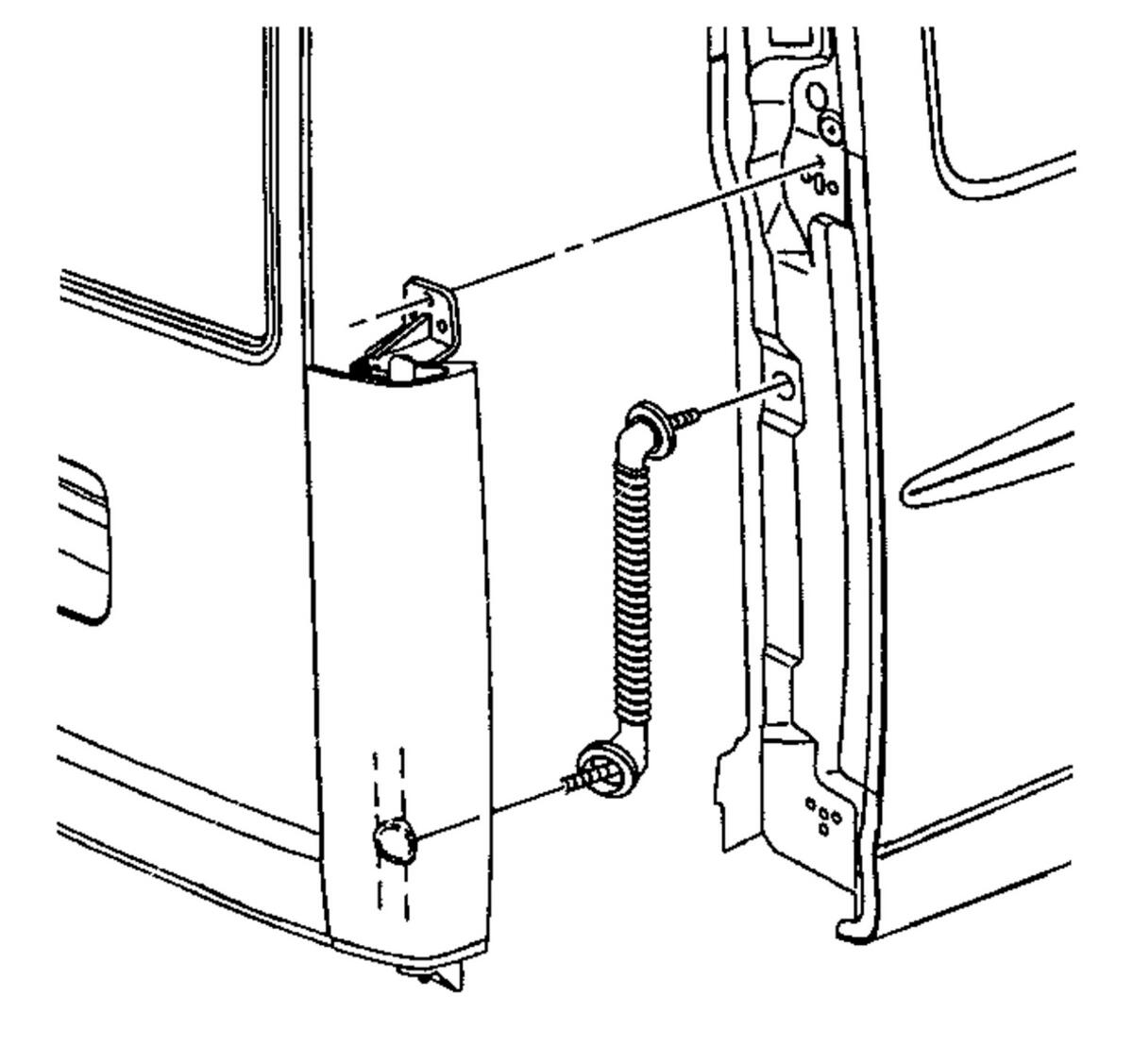

  4. GM334057Courtesy of GENERAL MOTORS COMPANY

    Remove the wiring harness conduit from the door.

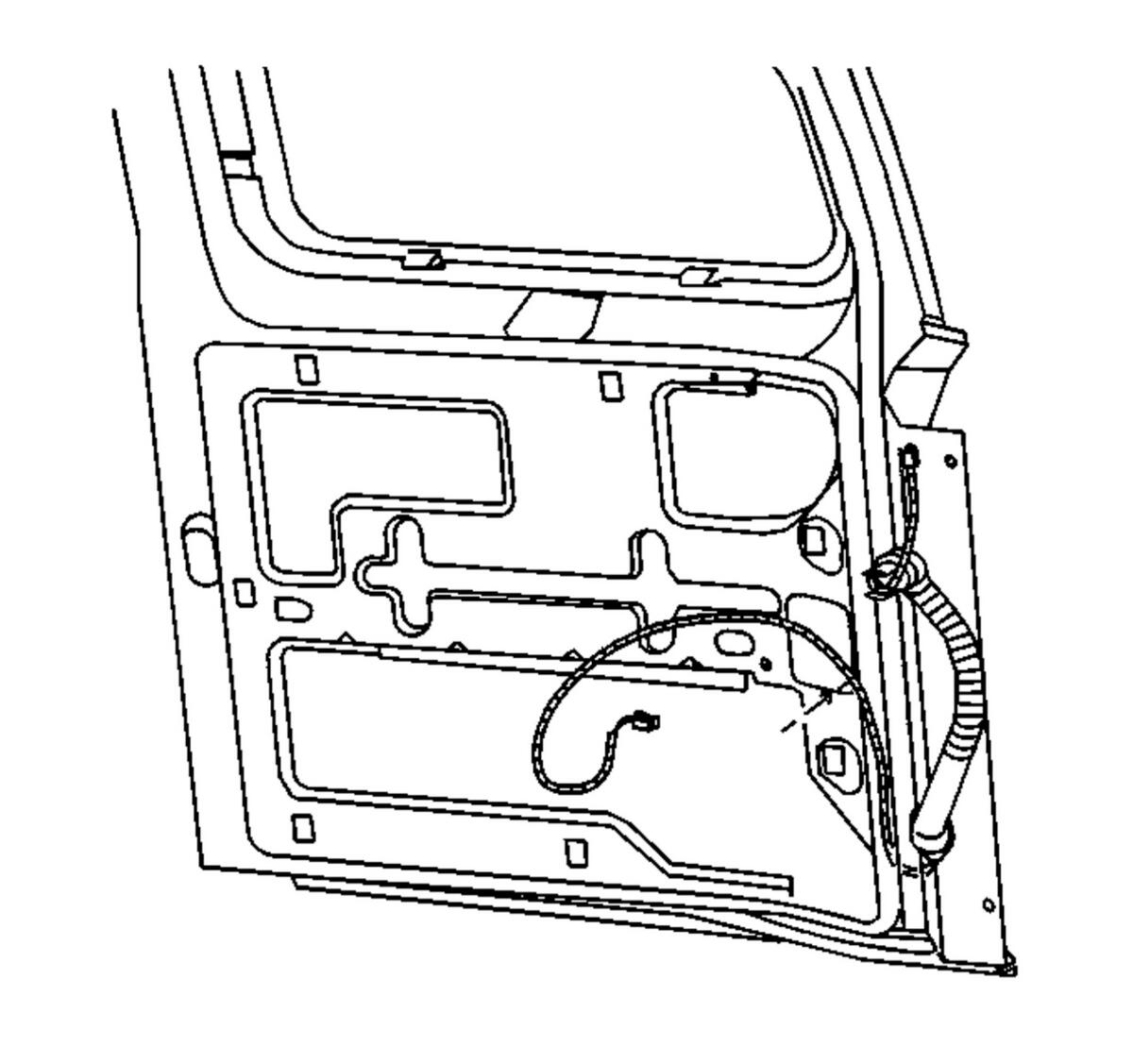

  5. GM334066Courtesy of GENERAL MOTORS COMPANY

    Remove the wiring harness from the door.
