Rear Door Trim Panel Replacement - Left Side (E24)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

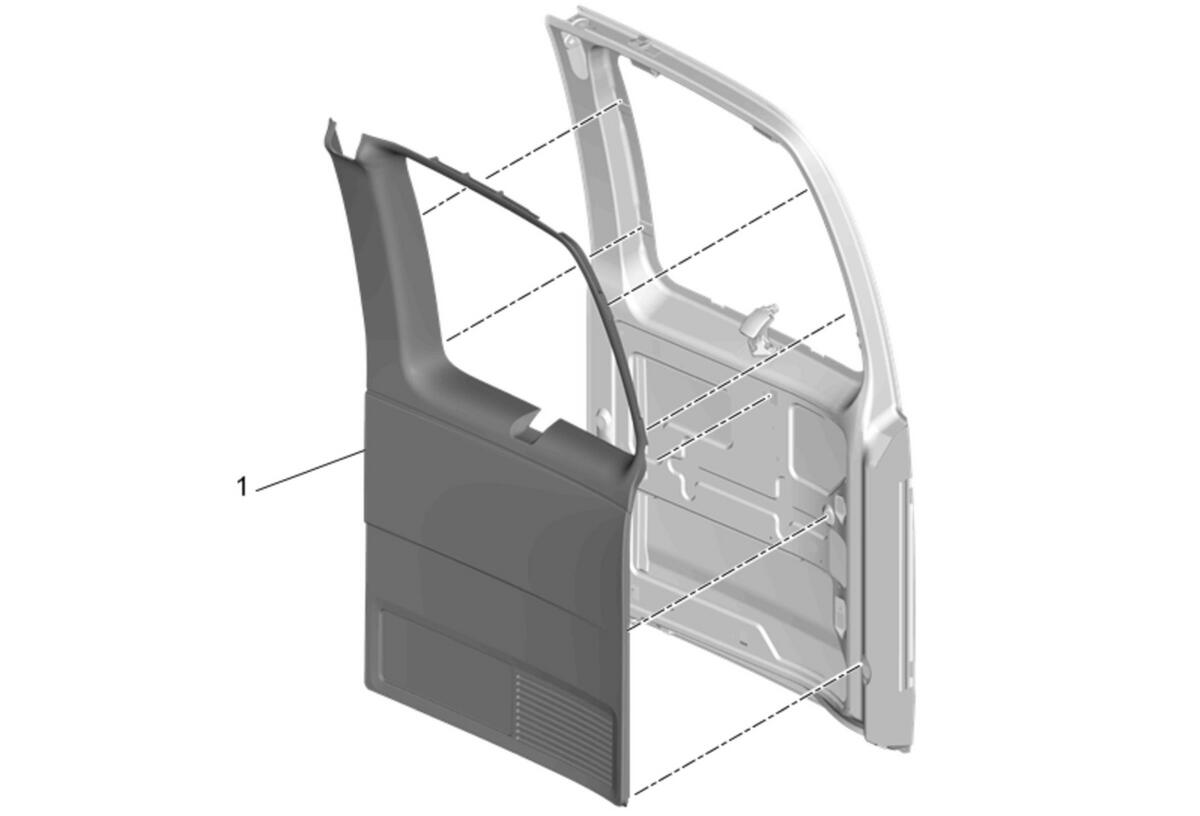

GM4861871Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Door Trim Panel- Left Side

Procedure

  1. Pull rear door trim outward to disengage the retainers around the outside edges of the lower portion of the door trim panel.
  2. Use a long flat bladed tool to carefully release the door trim panel out of the retainers around the window opening.
