Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

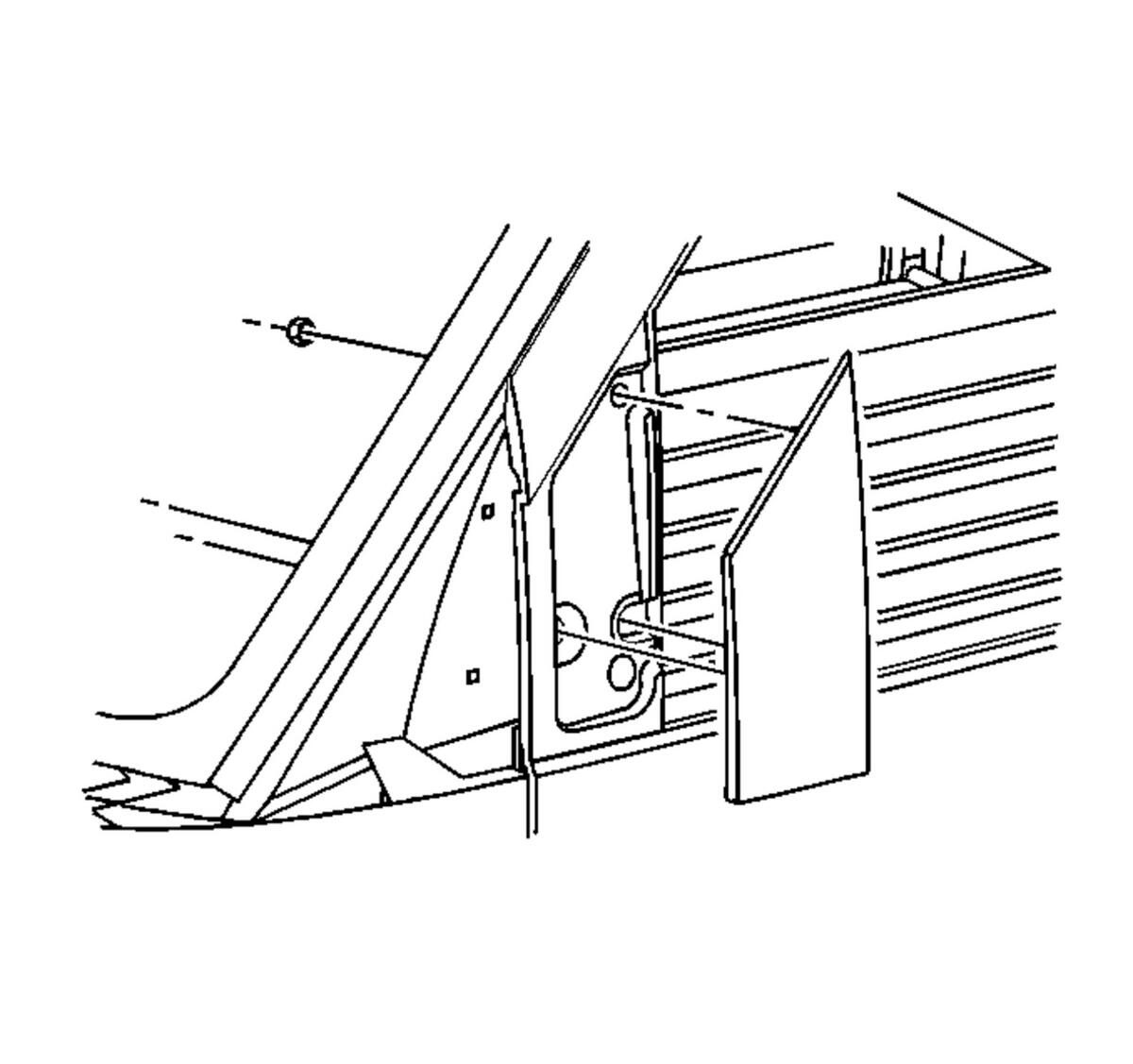

Install the rearview mirror filler to the door.
- Install the nuts in order to retain the rearview mirror filler to the door and tighten to 10 N.m (89 lb in).
- Install the front door front garnish molding. Refer to Front Side Door Front Garnish Molding Replacement .
CAUTION:
Refer to Fastener Caution .
