Outside Rearview Mirror Glass Replacement - Lower
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

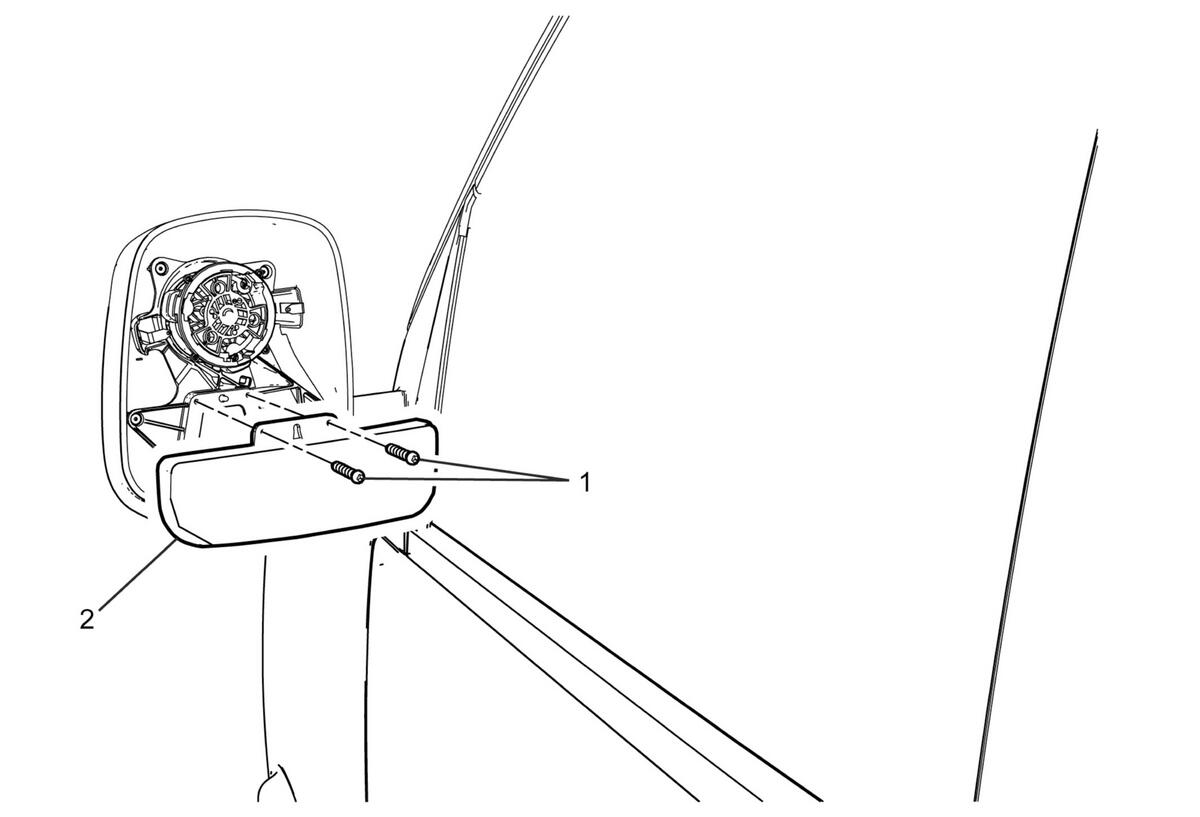

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the outside rearview mirror upper glass. Refer to Outside Rearview Mirror Glass Replacement - Upper . |
|
| 1 | Outside Rearview Mirror Lower Glass Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Outside Rearview Mirror Lower Glass |
