Outside Rearview Mirror Glass Replacement - Upper

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

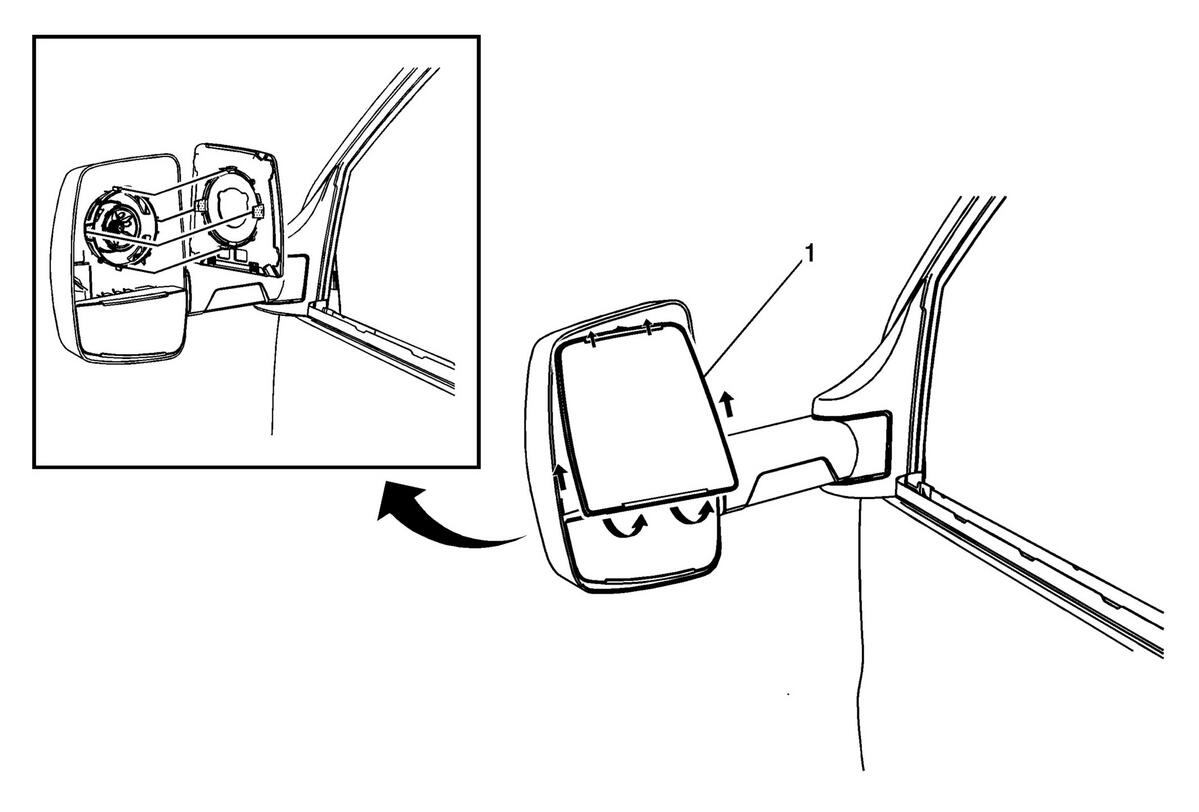

Callout	Component Name
1	Outside Rearview Mirror Upper Glass WARNING: Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury. Procedure Place masking tape over the mirror glass. Apply several layers of masking tape to the top of the outside rearview mirror housing in order to protect the painted finish. Push the mirror glass inward at the top of the face until full travel is reached. Retain pressure on the bottom of the mirror face. Pull outward until the mirror face is released. Disconnect the electrical connectors, if equipped

Callout

Component Name

Outside Rearview Mirror Upper Glass

WARNING:

Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.

Procedure

Place masking tape over the mirror glass.
Apply several layers of masking tape to the top of the outside rearview mirror housing in order to protect the painted finish.
Push the mirror glass inward at the top of the face until full travel is reached.
Retain pressure on the bottom of the mirror face.
Pull outward until the mirror face is released.
Disconnect the electrical connectors, if equipped
