Rear Seat Cushion Frame Replacement (With Split Bench)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

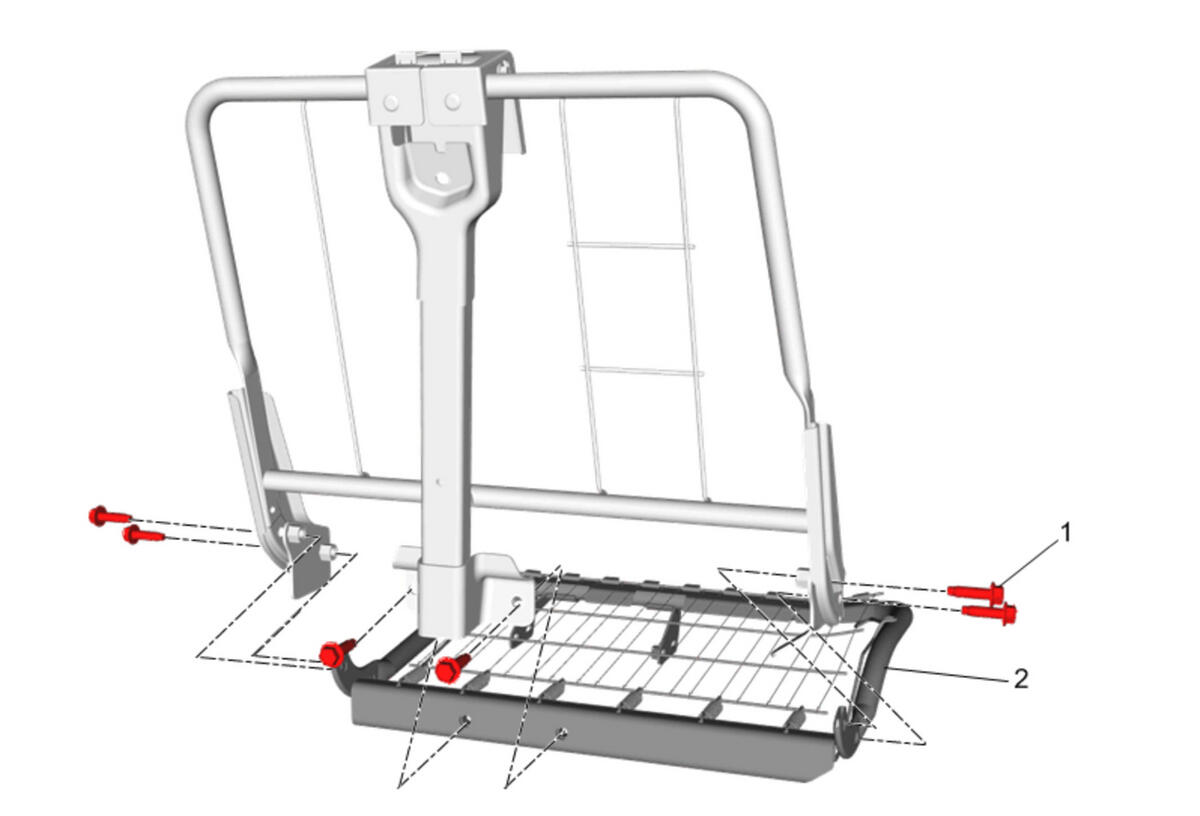

Callout	Component Name
Preliminary Procedures Rear Seat Cushion Cover and Pad Replacement Rear Seat Back Cushion Cover and Pad Replacement (With Bench Seat) , or Rear Seat Back Cushion Cover and Pad Replacement (With Split Bench)
1	Procedure Remove the 6 rear seat cushion frame bolts. Rear Seat Back Cushion Frame Replacement (With Bench Seat) , or Rear Seat Back Cushion Frame Replacement (With Split Bench)
2	Rear Seat Cushion Frame

Callout

Component Name

Preliminary Procedures

Rear Seat Cushion Cover and Pad Replacement
Rear Seat Back Cushion Cover and Pad Replacement (With Bench Seat) , or Rear Seat Back Cushion Cover and Pad Replacement (With Split Bench)

Procedure
Remove the 6 rear seat cushion frame bolts. Rear Seat Back Cushion Frame Replacement (With Bench Seat) , or Rear Seat Back Cushion Frame Replacement (With Split Bench)

Rear Seat Cushion Frame
