Rear Seat Back Cushion Frame Replacement (With Split Bench)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

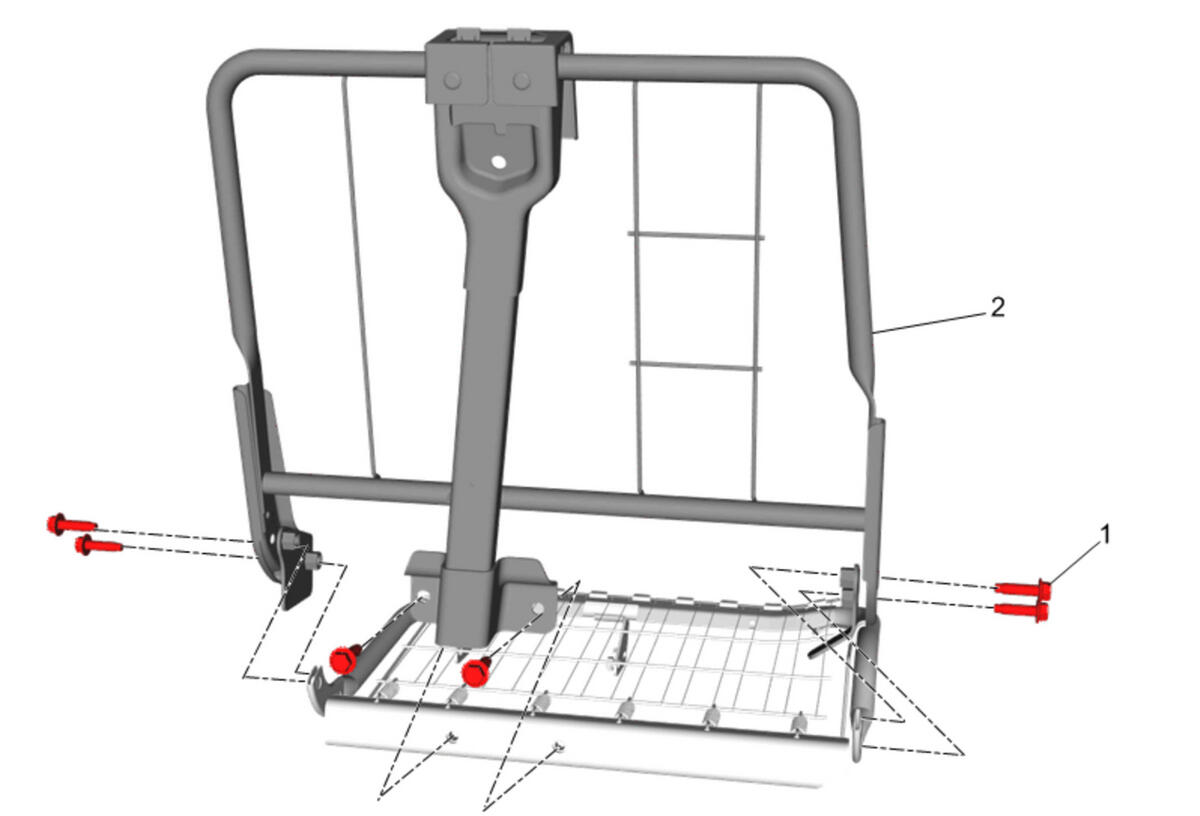

Callout	Component Name
Preliminary Procedures Reposition the rear seat cushion cover and pad. Rear Seat Cushion Cover and Pad Replacement Rear Seat Back Cushion Cover and Pad Replacement (With Bench Seat) , or Rear Seat Back Cushion Cover and Pad Replacement (With Split Bench)
1	Rear Seat Cushion Frame Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 75 N.m (55 lb ft)
2	Rear Seat Back Cushion Frame

Callout

Component Name

Preliminary Procedures

Reposition the rear seat cushion cover and pad. Rear Seat Cushion Cover and Pad Replacement
Rear Seat Back Cushion Cover and Pad Replacement (With Bench Seat) , or Rear Seat Back Cushion Cover and Pad Replacement (With Split Bench)

Rear Seat Cushion Frame Bolt [6x]

CAUTION:

Refer to Fastener Caution .

Tighten
75 N.m (55 lb ft)

Rear Seat Back Cushion Frame
