Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Disable the SIR system. SIR Disabling and Enabling
Front Seat (2) - Remove - Front Seat Removal and Installation

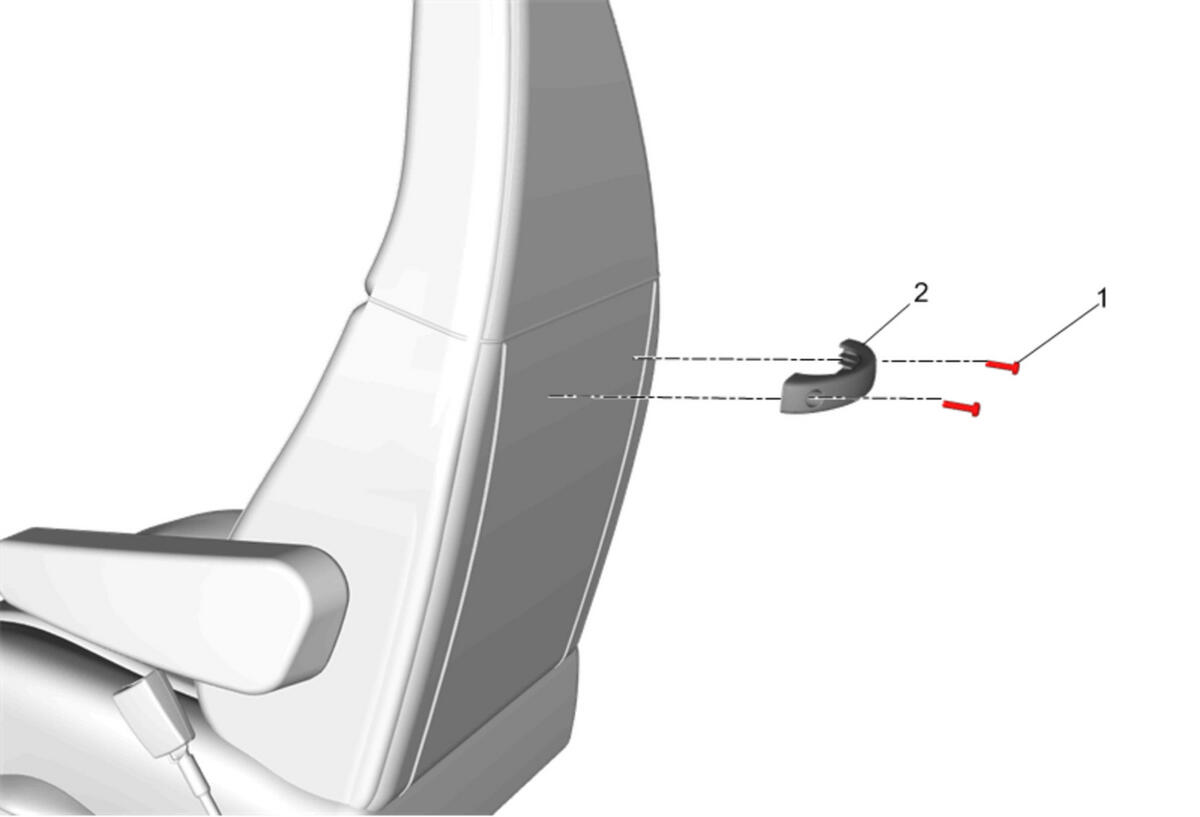

Assist Handle (2) - Remove - Assist Handle Replacement
Front Seat Armrest (2) - Remove - Front Seat Armrest Replacement
- Disconnect the electrical connector from the front seat outboard airbag.
- Release the locking retainer on the airbag chute.

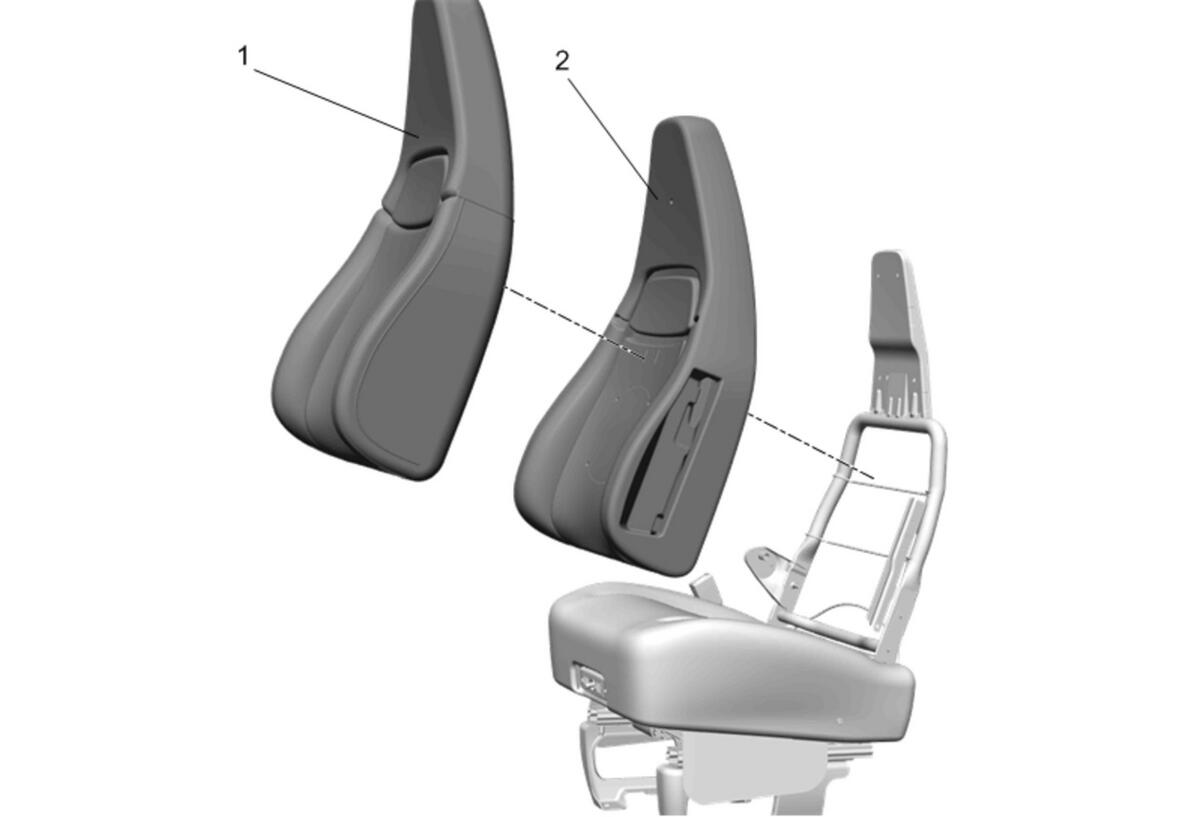

Front Seat Back Cover (1) - Remove
- Front Seat Back Pad (2) - Remove
WARNING:
Refer to SIR Warning .
WARNING:
Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury.
