Front Seat Armrest Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

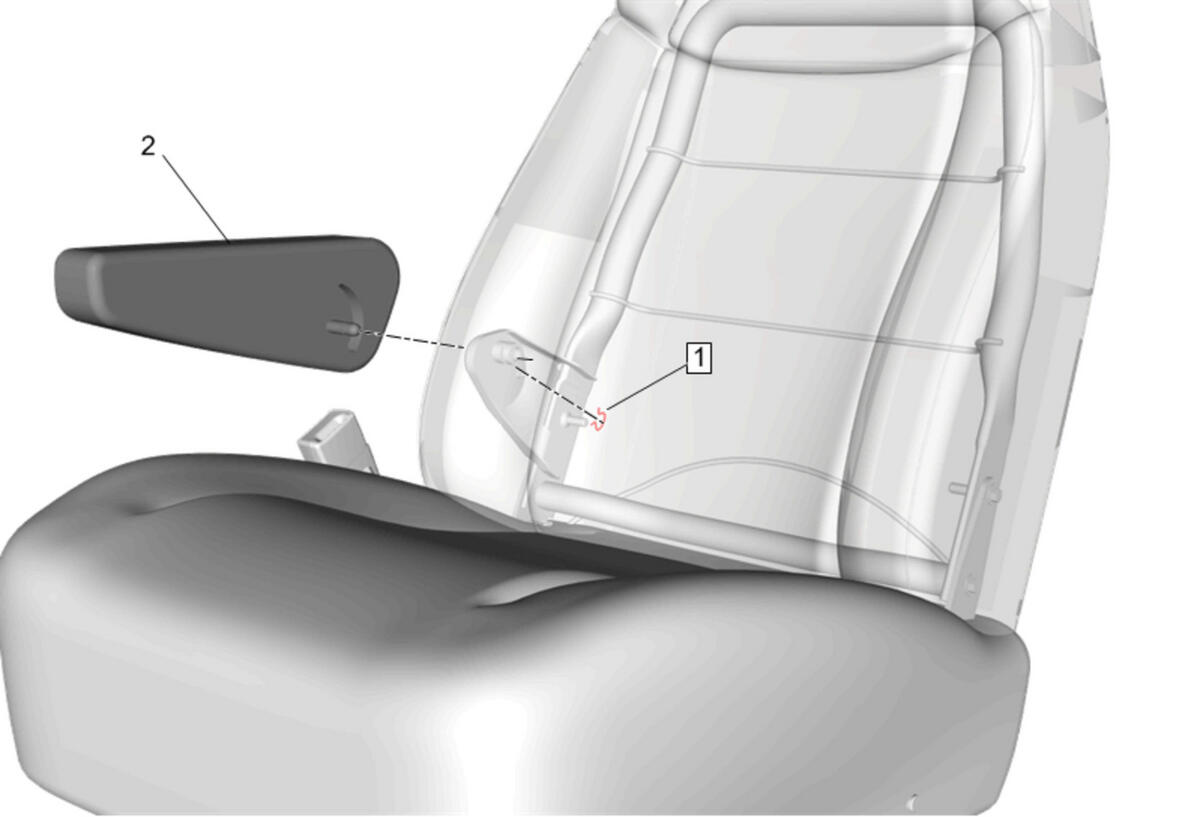

GM4849213Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Release the bottom edge of the seat back cover. Front Seat Back Cover and Pad Replacement
1 Front Seat Armrest Retainer
Procedure
Using a suitable tool, remove the retainer.
2 Front Seat Armrest
