Drive Belt Idler Pulley Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

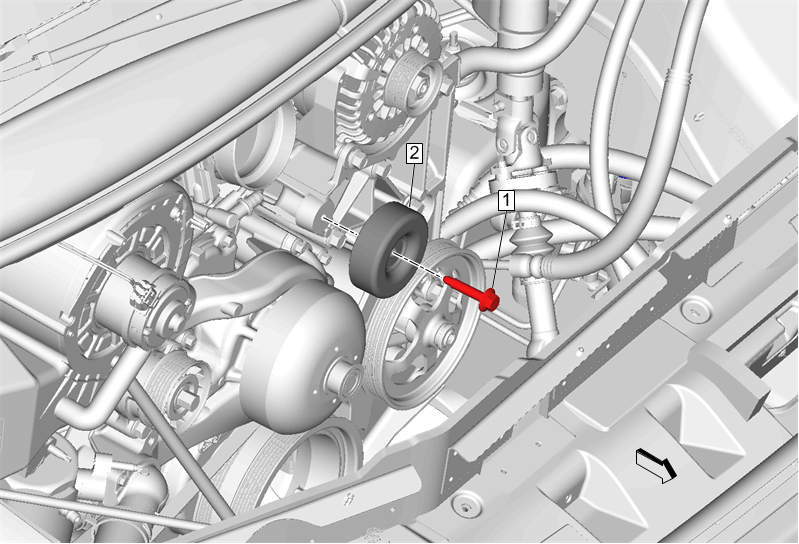

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drive Belt Replacement - Accessory |
|
| 1 | Drive Belt Idler Pulley Bolt
CAUTION:
Refer to Fastener Caution . Procedure Tighten 58 N.m (43 lb ft) |
| 2 | Drive Belt Idler Pulley |
