Drive Belt Replacement - Accessory

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

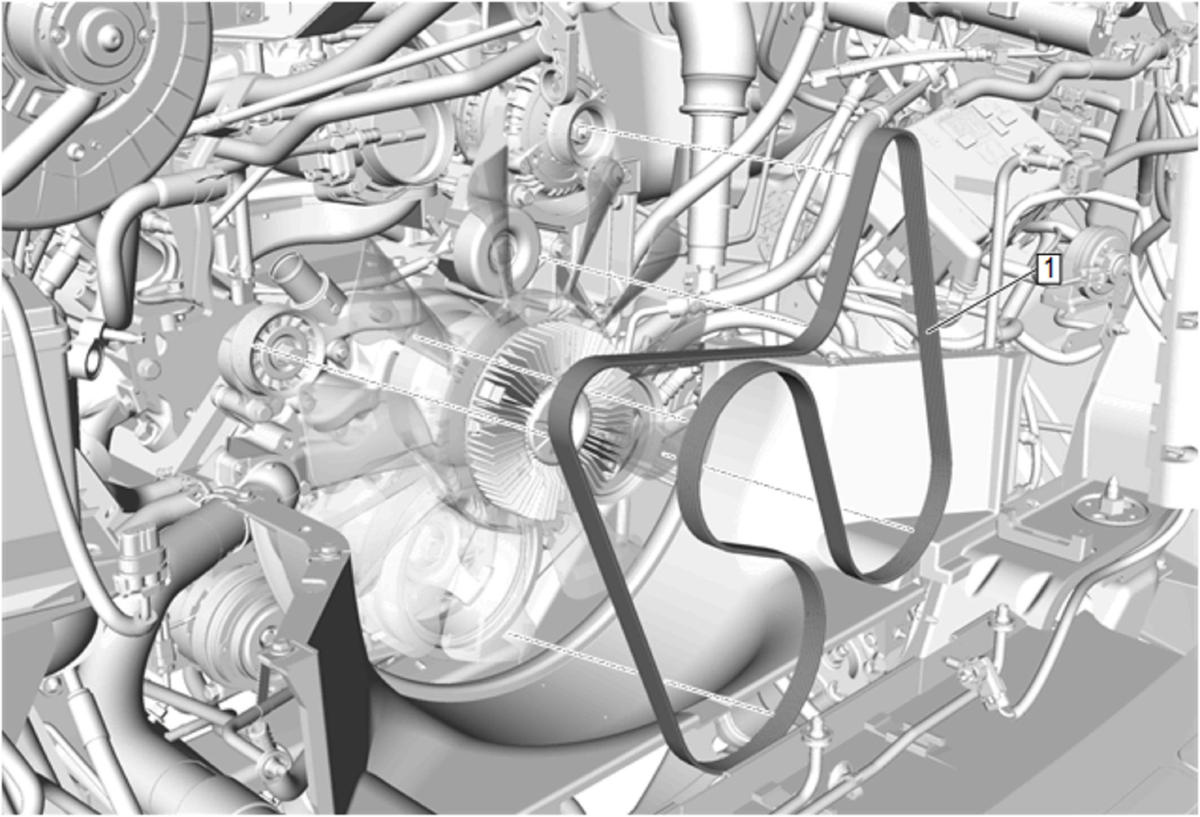

GM5154763Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
1 Drive Belt

Procedure

  1. Rotate the drive belt tensioner clockwise to release the drive belt tension.
  2. Slide the drive belt off of the belt idler pulley.
  3. Slowly release the tension on the drive belt tensioner.
  4. Release the drive belt from the crankshaft pulley and remove belt upward.
