Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

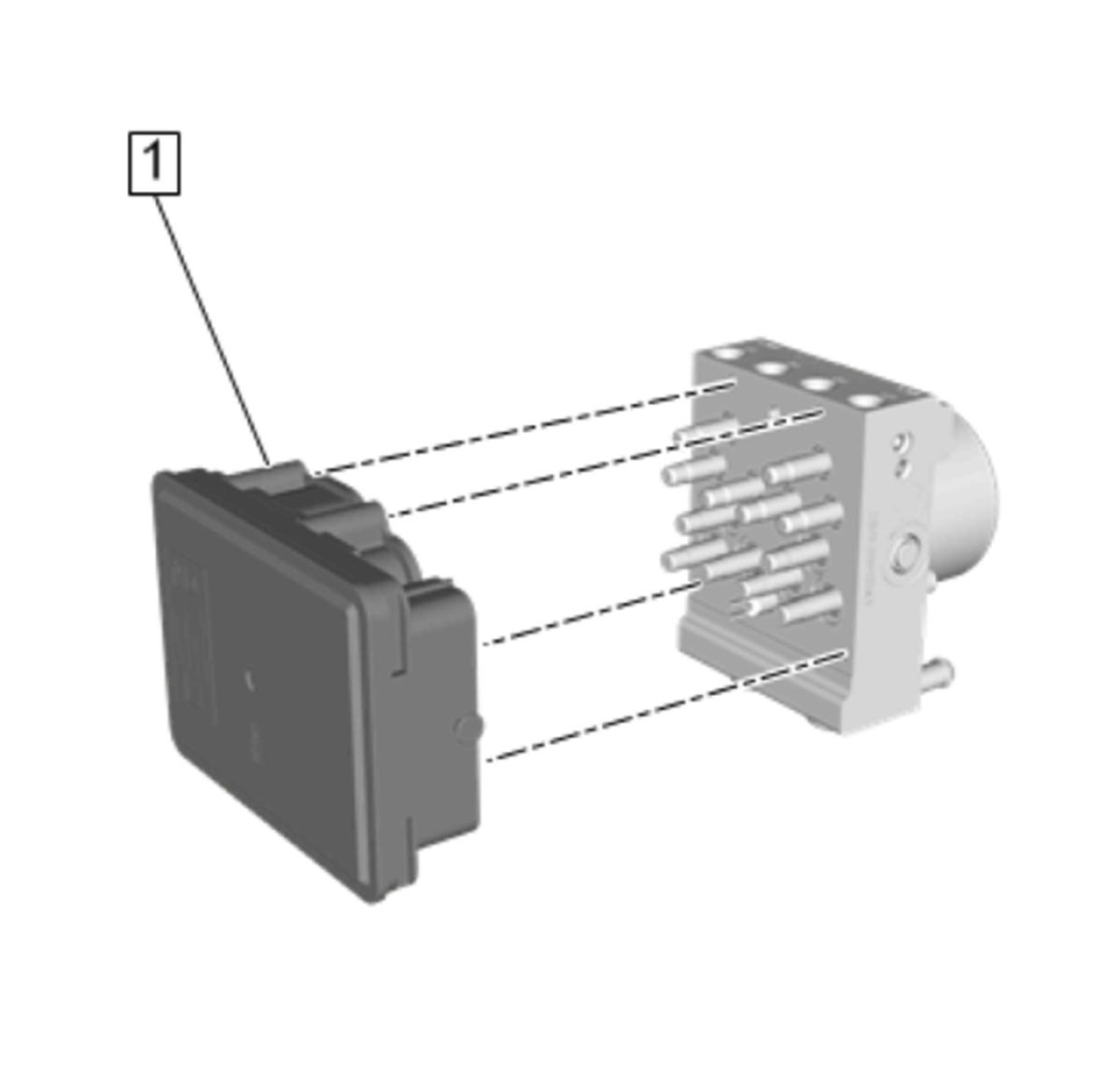

Electronic Brake Control Module(1) - Install - Electronic Brake Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY

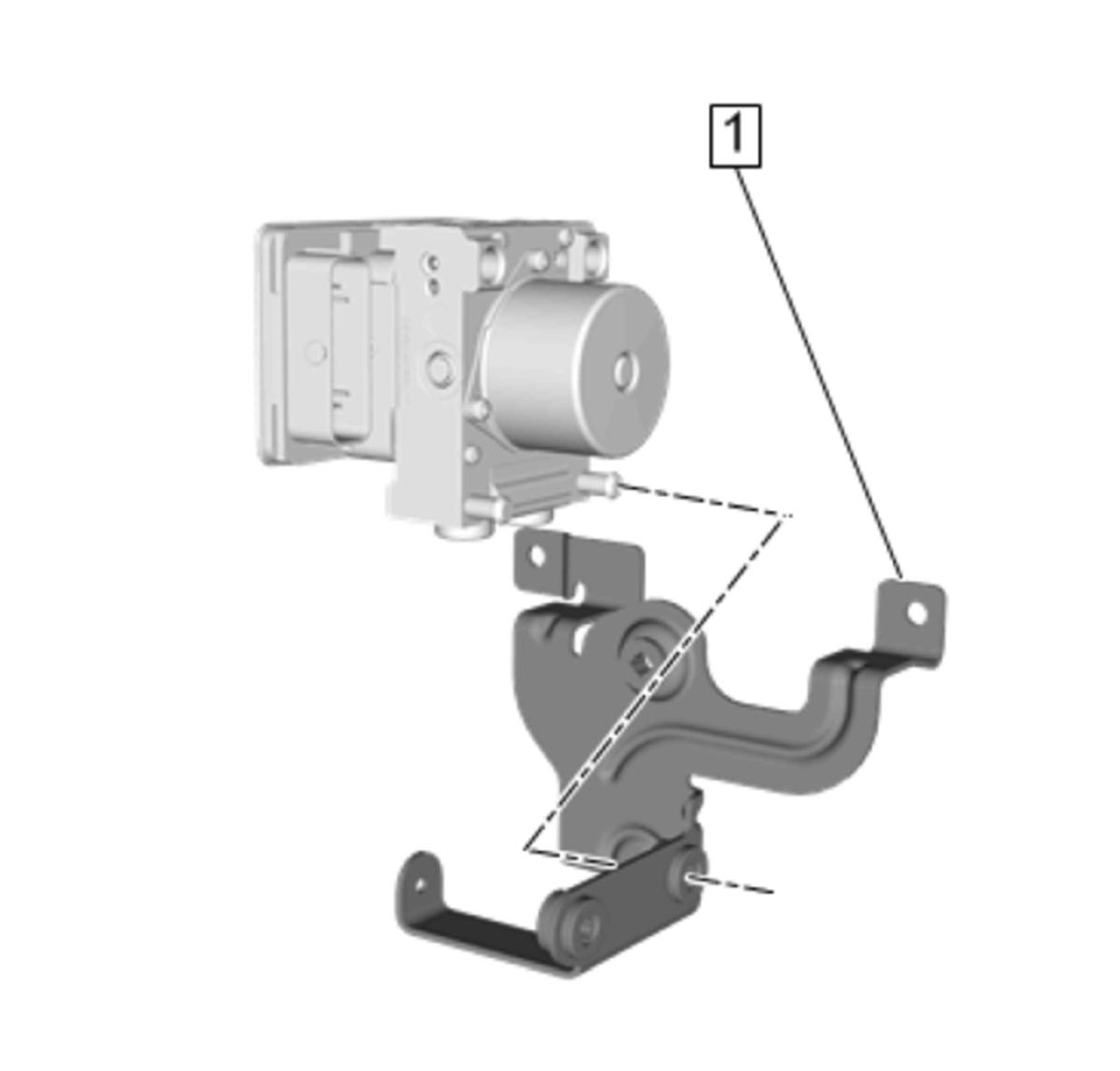

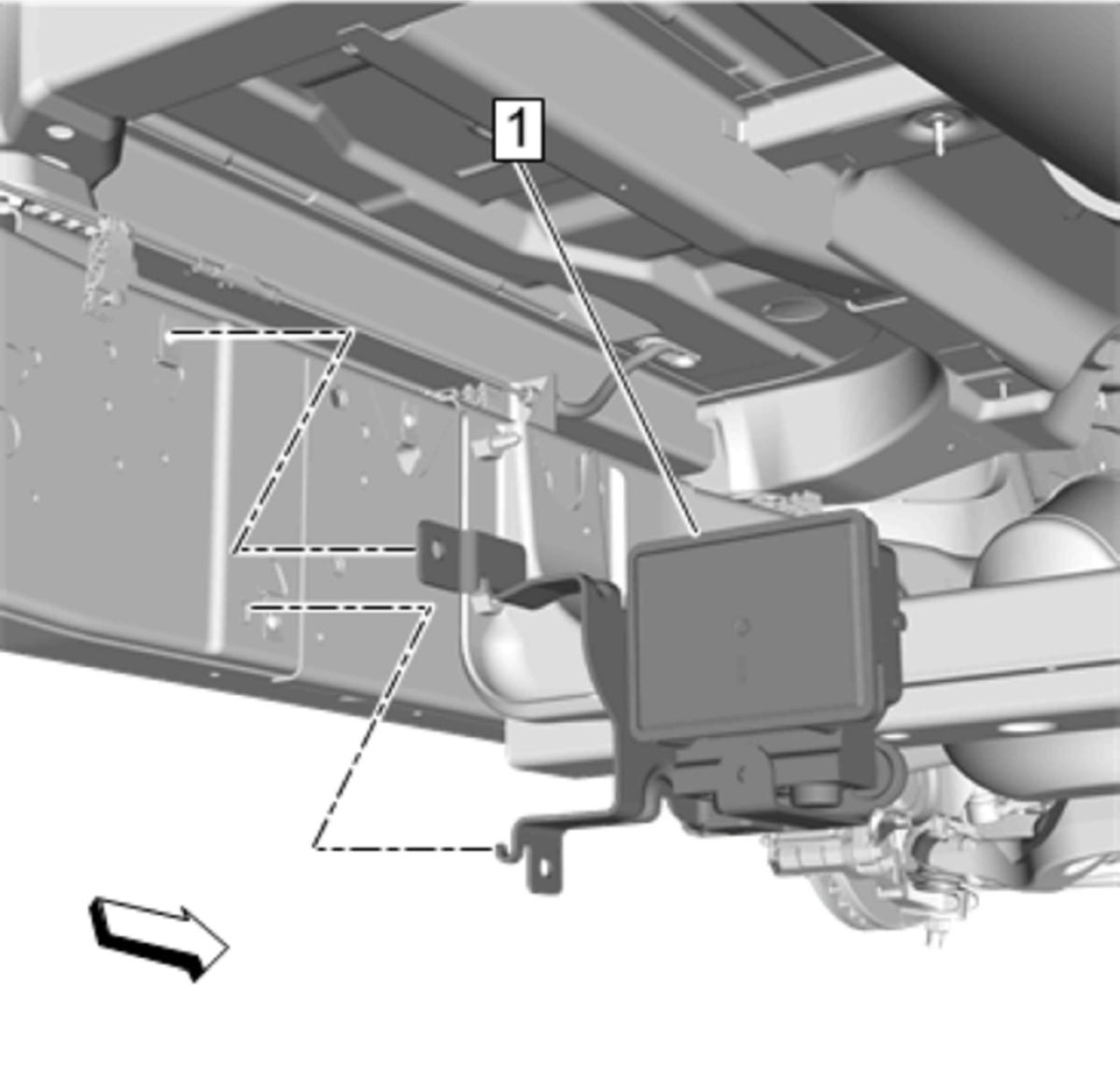

Brake Pressure Modulator Valve Bracket (1) - Install - Brake Pressure Modulator Valve Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Brake Pressure Modulator Valve(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

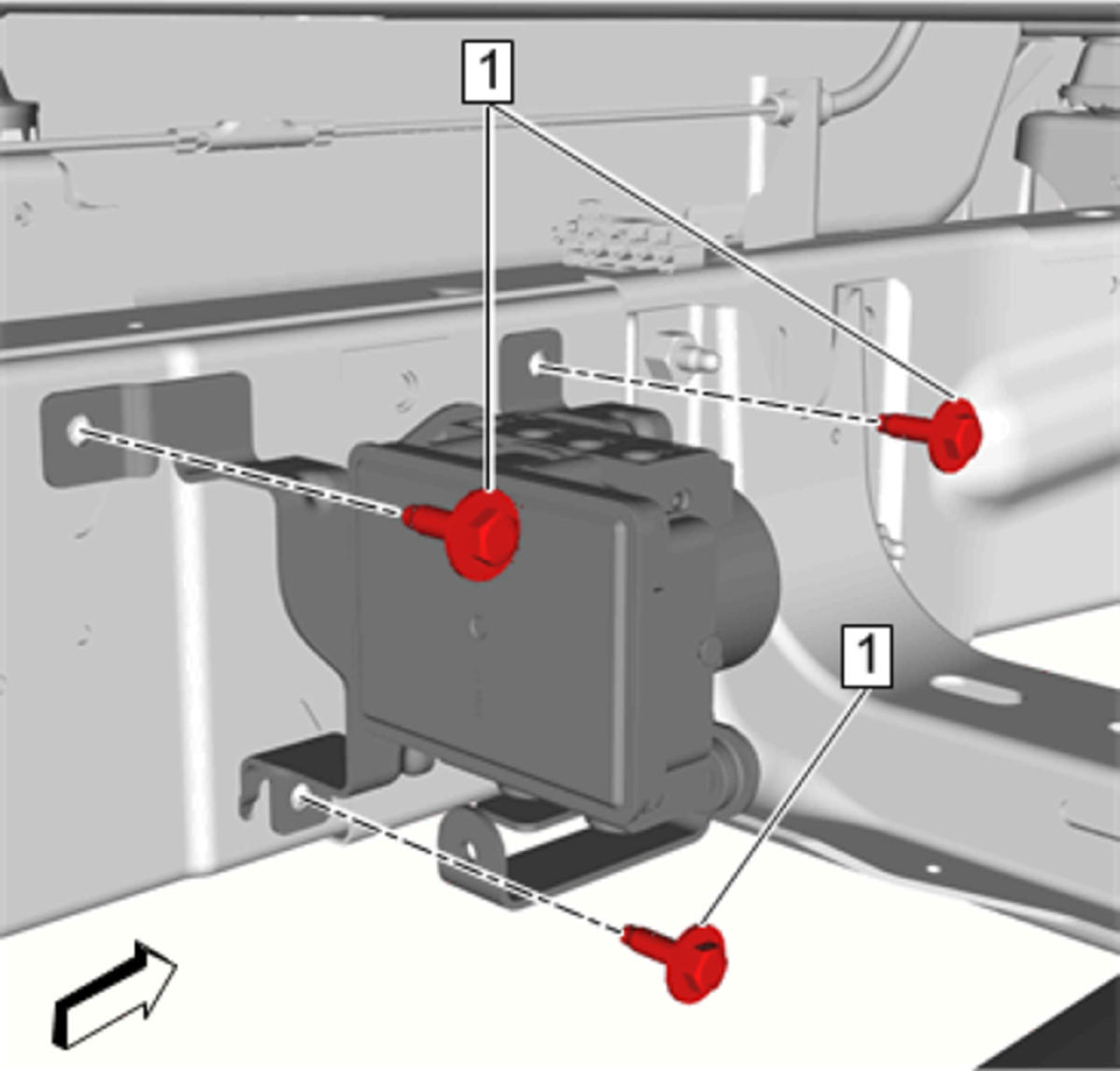

Brake Pressure Modulator Valve Bracket Bolt(1) - Install and tighten[3x]25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

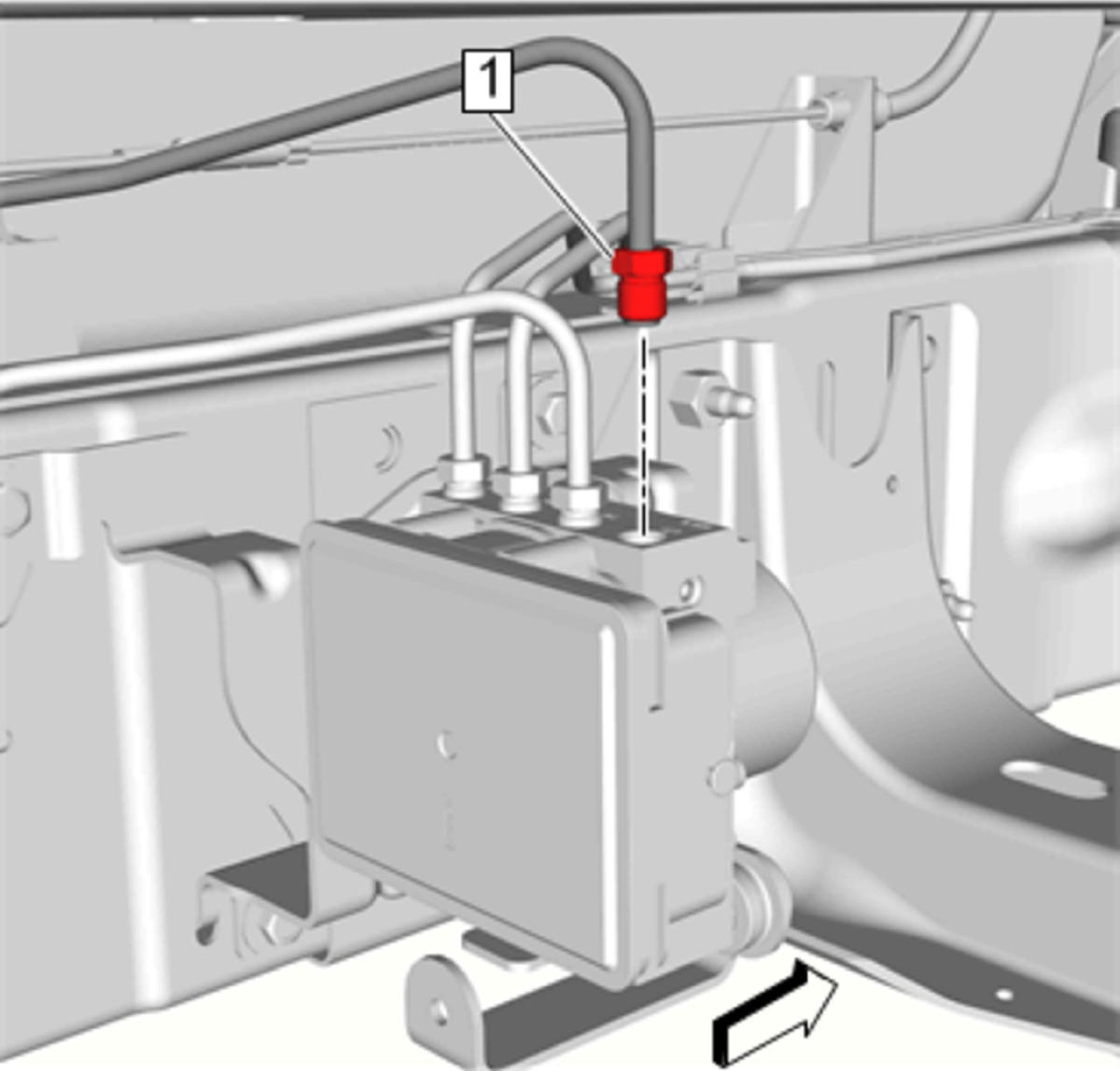

Left Front Brake Pipe Fitting (1) - Install and tighten25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Right Front Brake Pipe Fitting (1) - Install and tighten25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Right Rear Brake Pipe Fitting (1) - Install and tighten25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Left Rear Brake Pipe Fitting (1) - Install and tighten25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

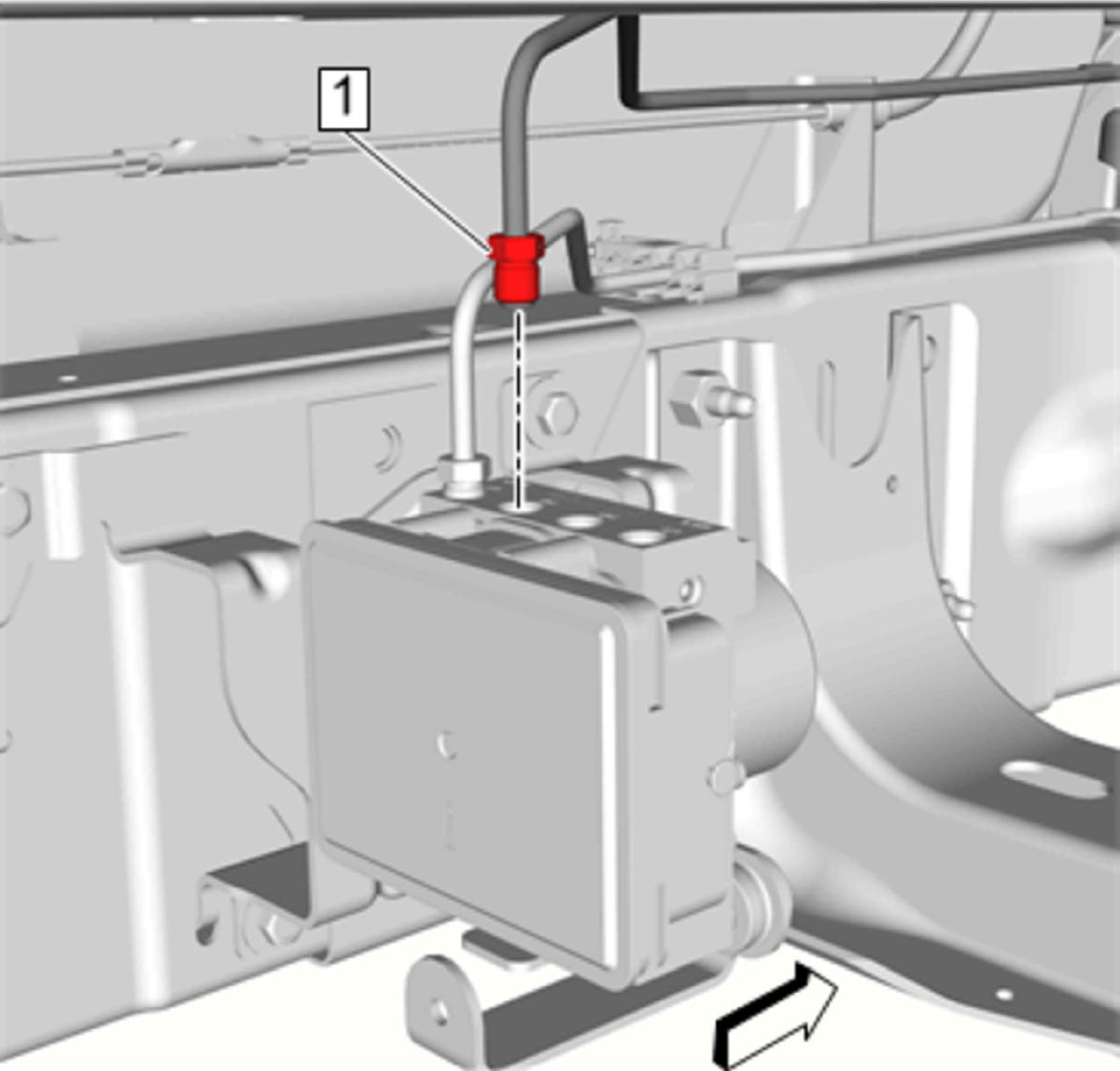

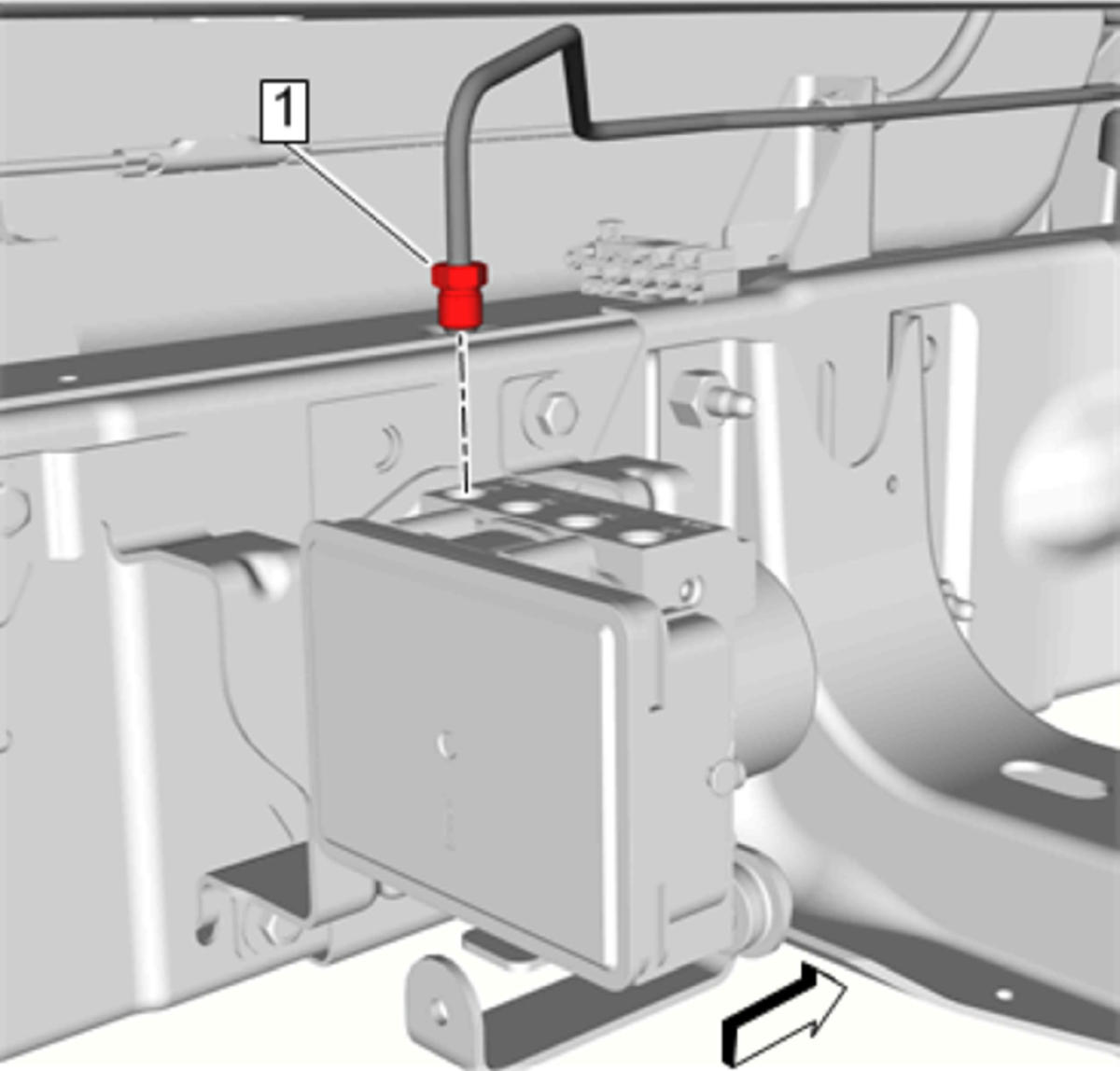

Master Cylinder Primary Brake Pipe Fitting (1) - Install and tighten25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

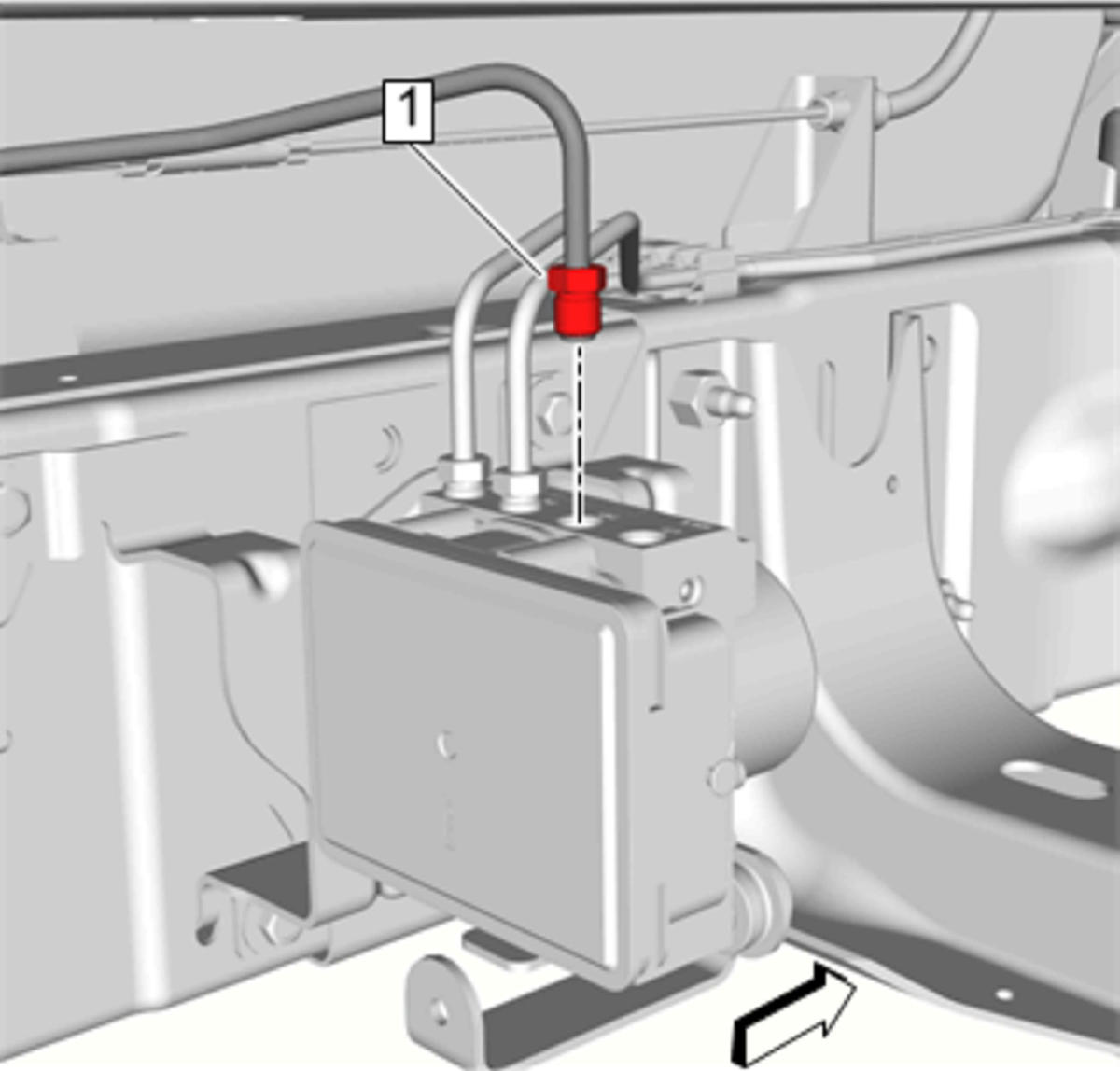

Master Cylinder Secondary Brake Pipe Fitting (1) - Install and tighten25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

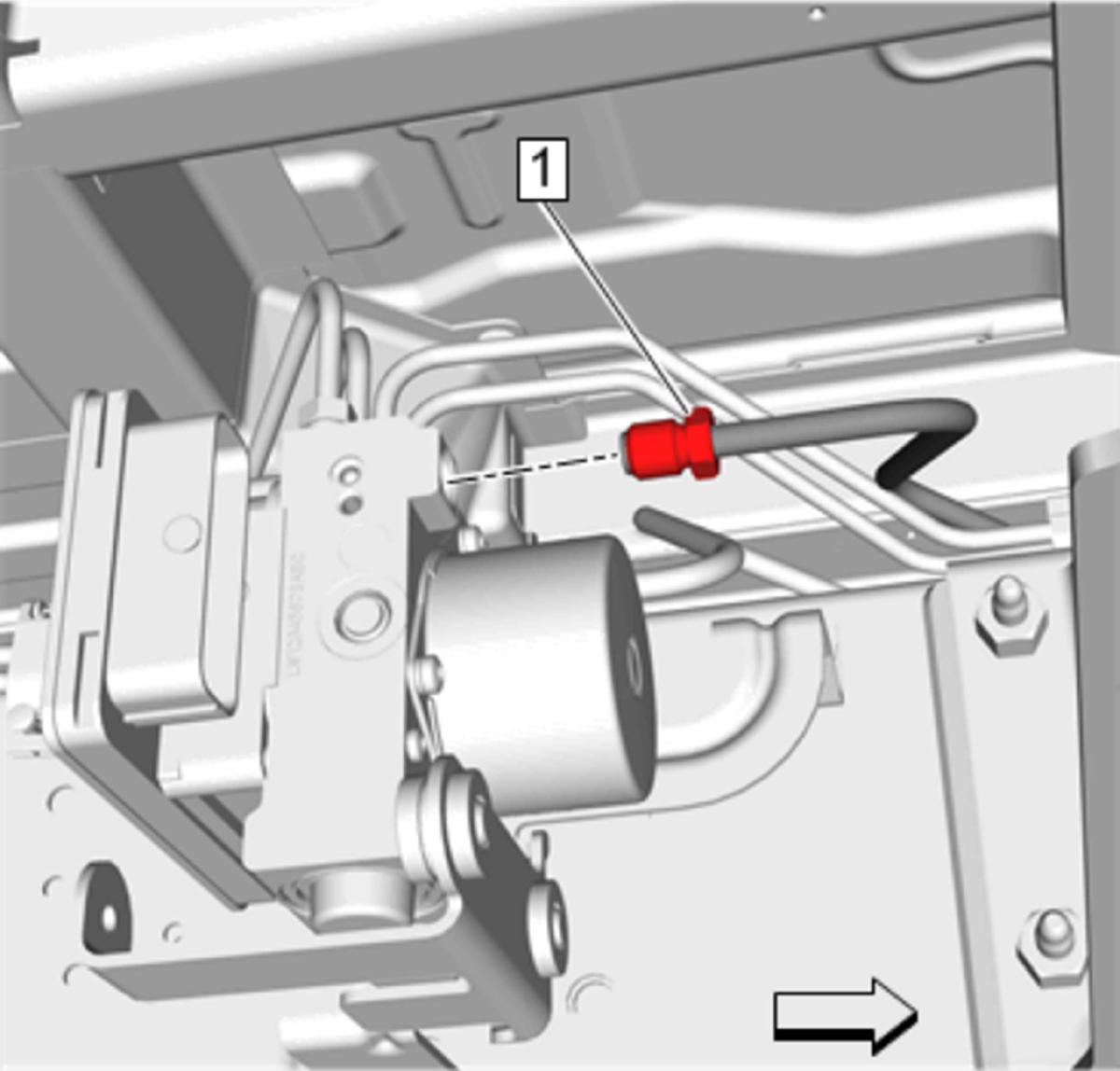

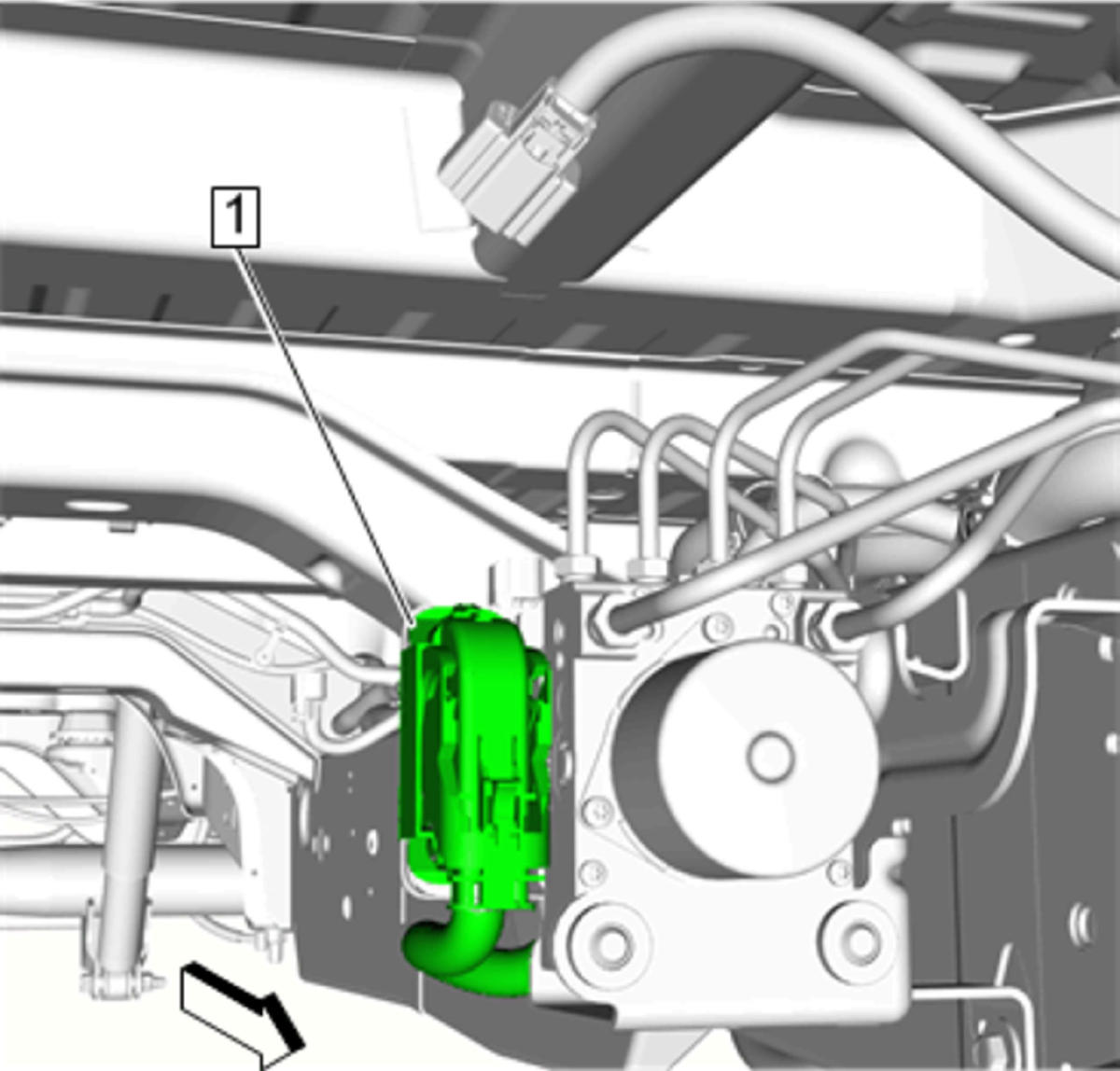

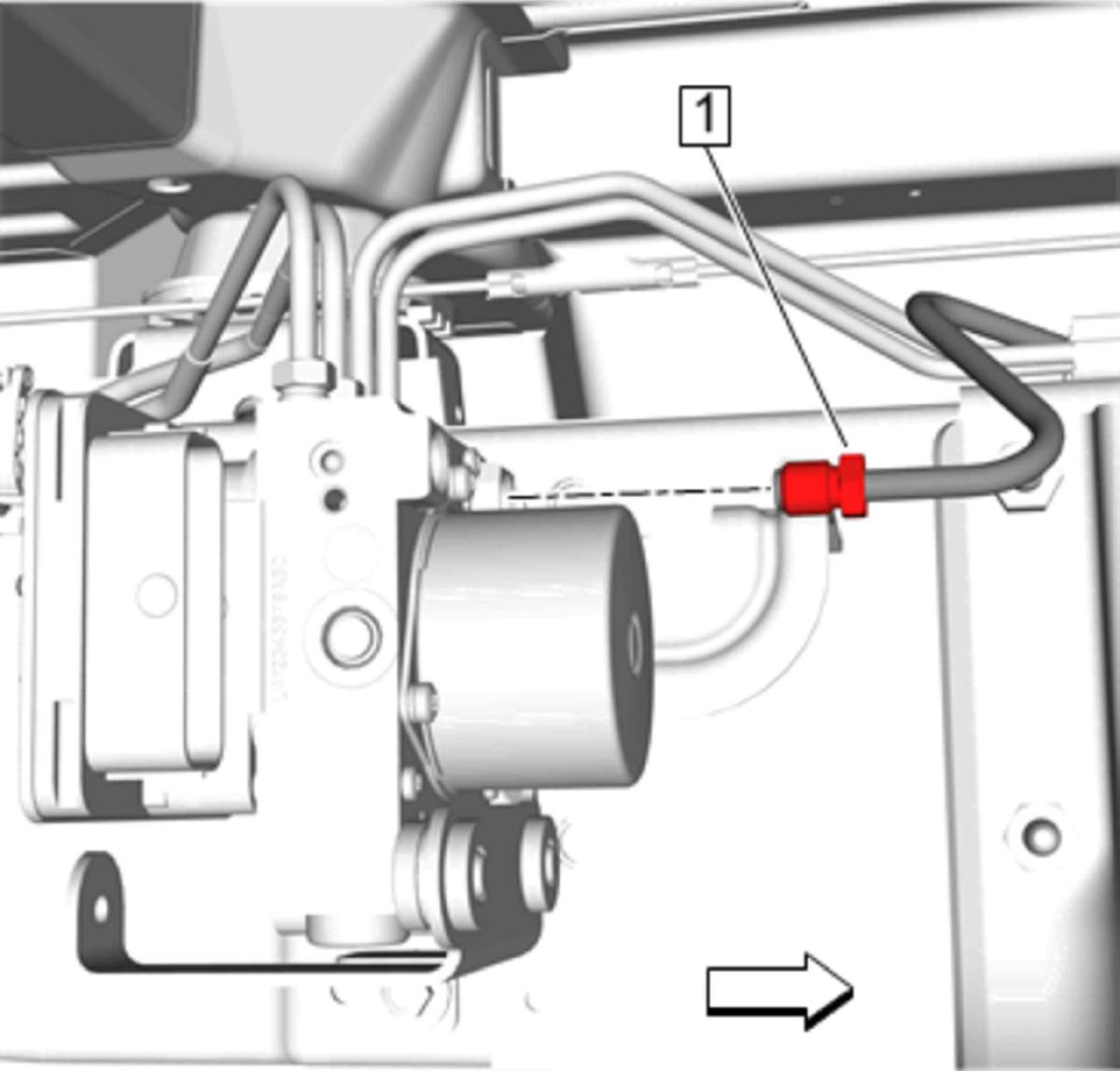

Electrical Connector(1)@Electronic Brake Control Module - Connect
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
