Brake Pressure Modulator Valve Bracket Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

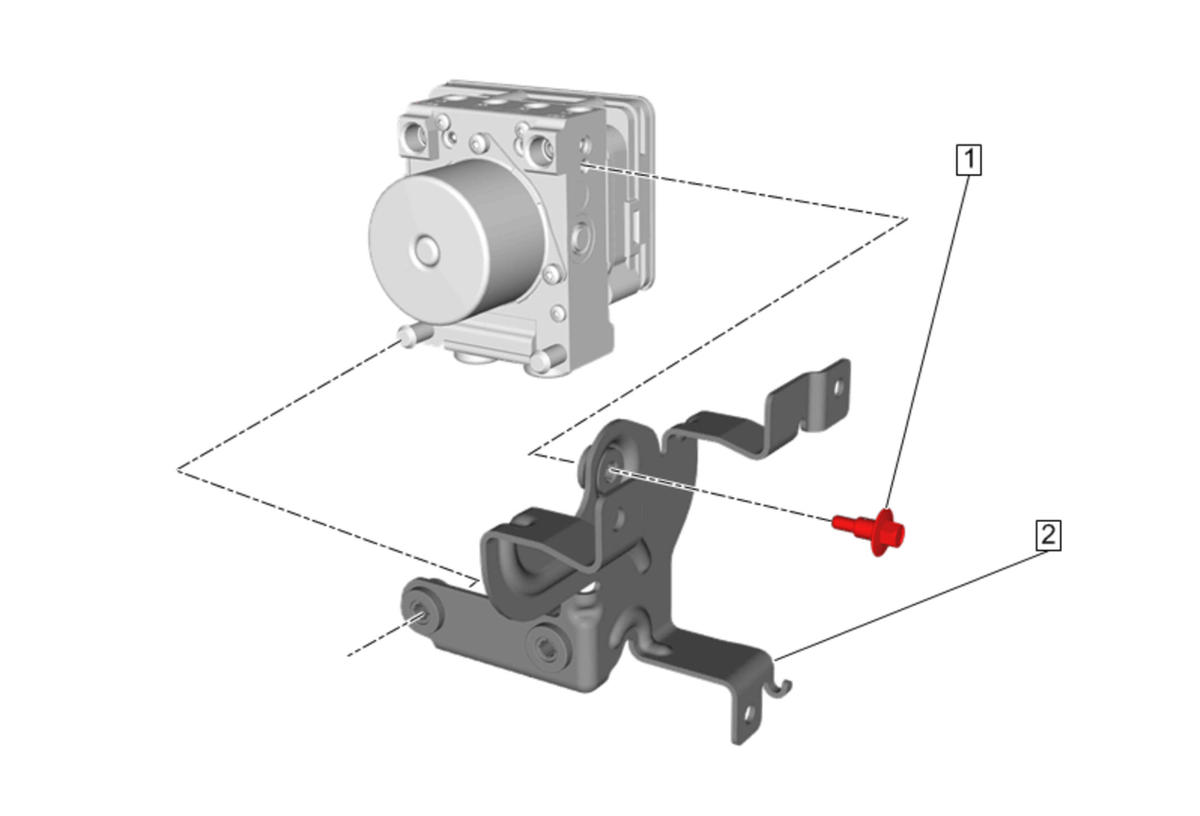

| Callout | Component Name |
|---|---|
| Preliminary Procedure Brake Pressure Modulator Valve Replacement |
|
| 1 | Brake Pressure Modulator Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 11 N.m (97 lb in) |
| 2 | Brake Pressure Modulator Valve Bracket
NOTE:
A small amount of denatured alcohol may be used to ease assembly. |
