Pitman Arm
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle

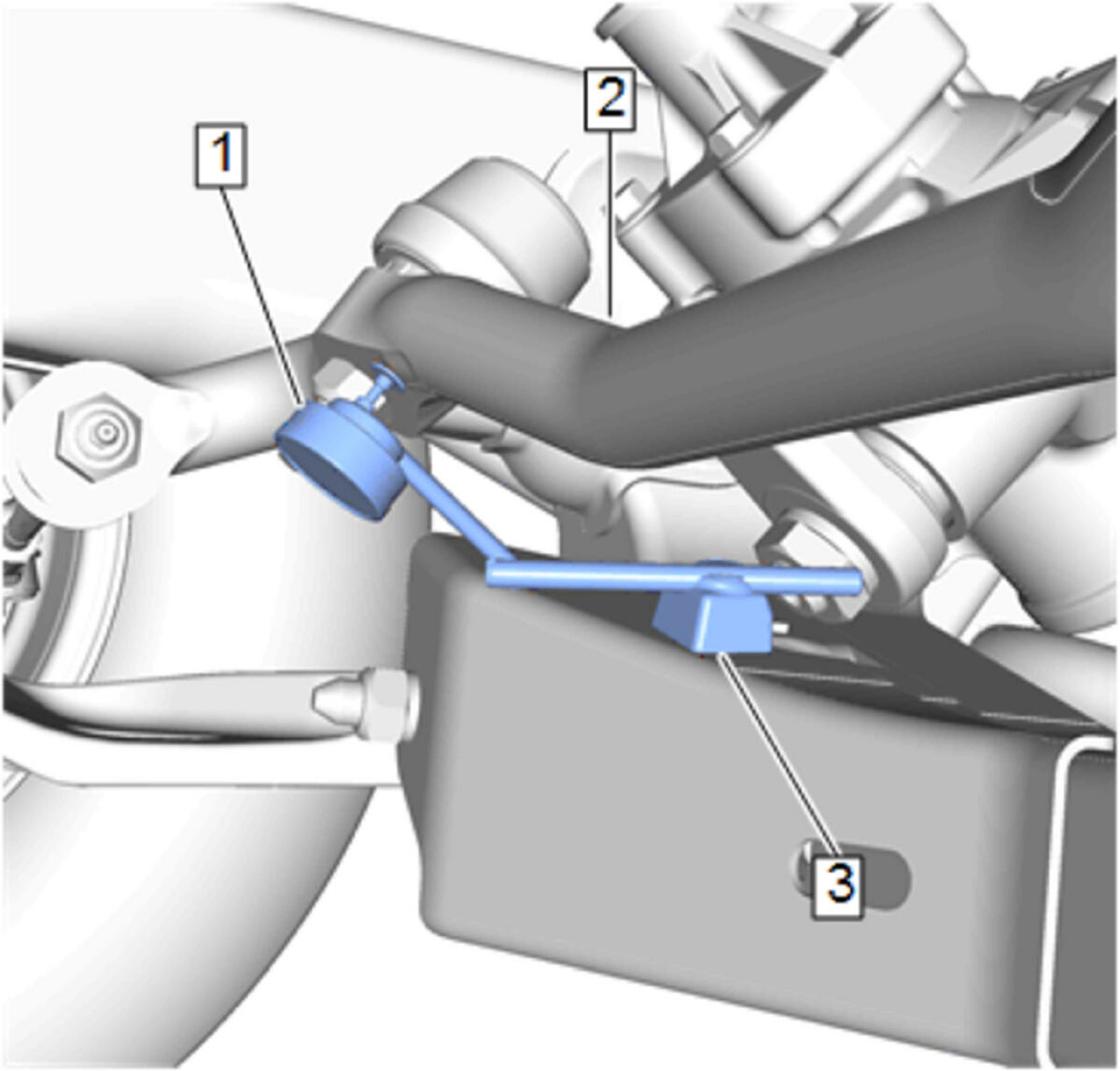

Install the base of the J-7872 Magnetic Base Dial Indicator(3), or equivalent, to the vehicle at the location shown above.
- Install the dial indicator J-7872 Magnetic Base Dial Indicator(1), or equivalent, to the steering linkage relay rod(2)with the contact point at the location shown above.
- Zero the J-7872 Magnetic Base Dial Indicator.
- Using a pry bar, induce an upward and downward motion on the steering linkage relay rod(2).
- Record the measurement shown on the J-7872 Magnetic Base Dial Indicator.
- If the movement exceeds 1.0 mm (0.039 in), replace the pitman arm. Pitman Arm Replacement
