Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Engine Protection Shield - Remove - Engine Protection Shield Replacement
Remove the steering linkage idler arm nut (1).
DISCARD the nut.

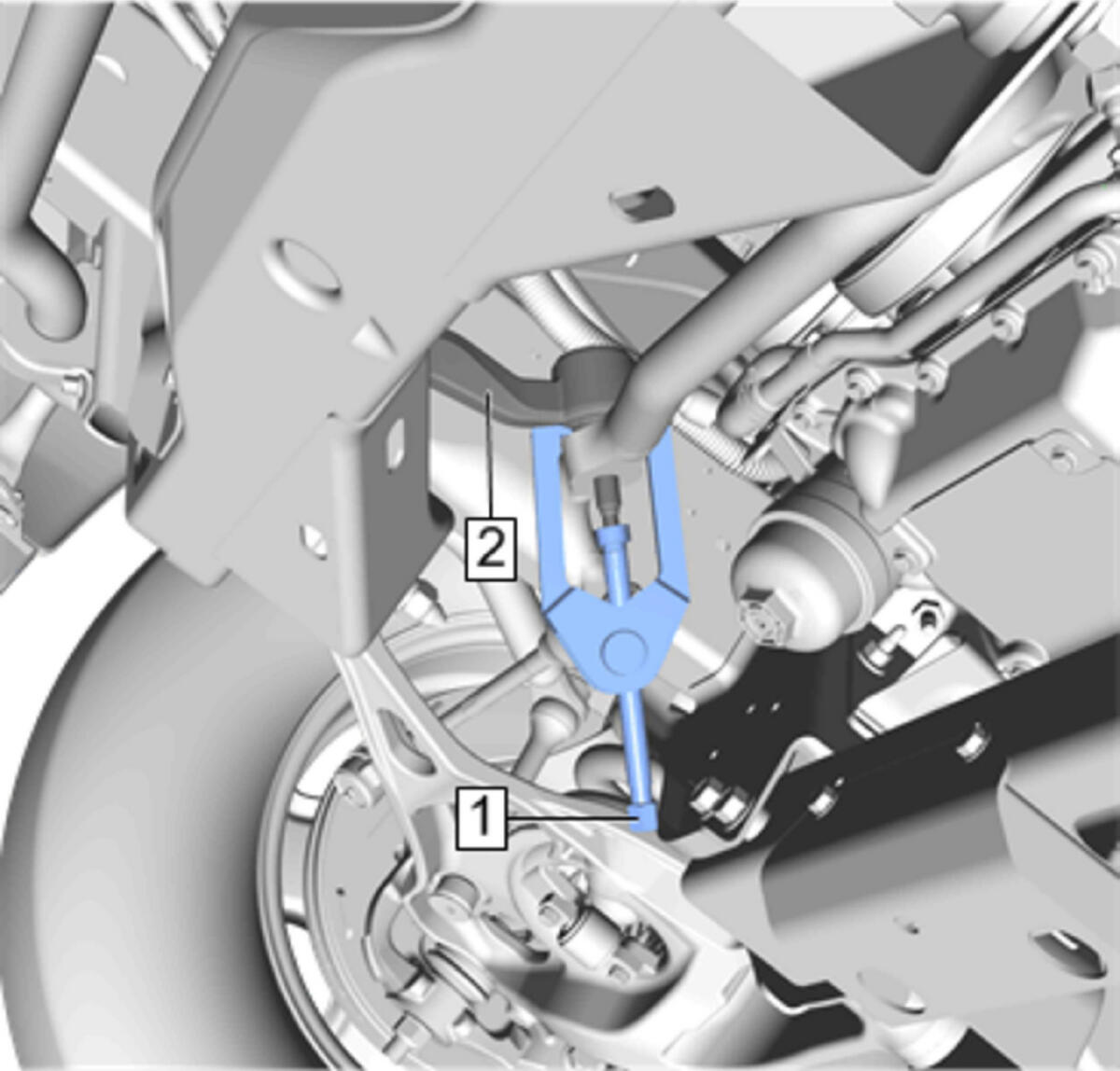

Use the CH-24319 - 01 steering linkage puller (1) to separate the steering linkage idler arm (2) from the steering linkage relay rod.

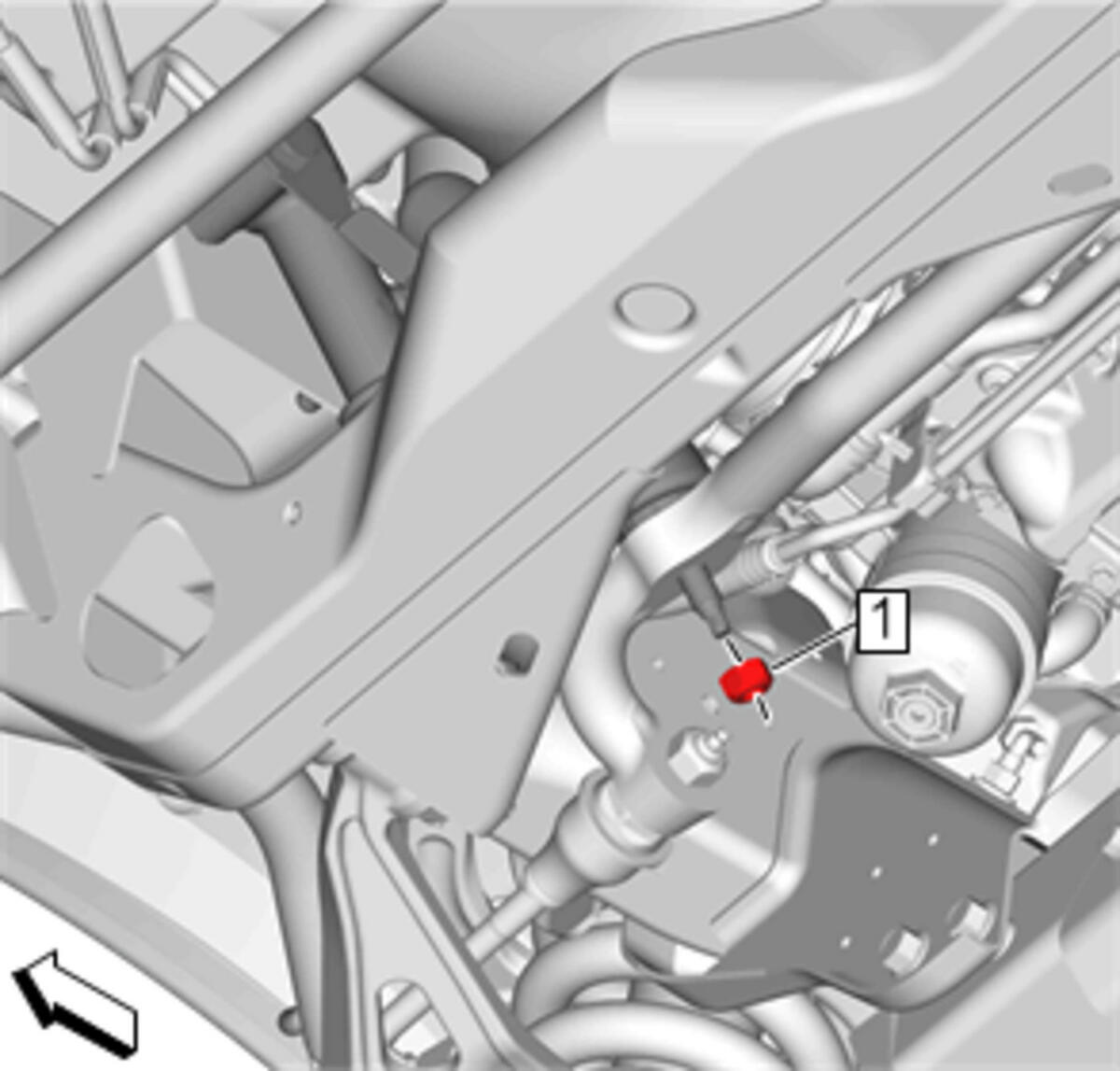

Remove the radiator outlet hose clamp (1) from the radiator outlet hose.
Remove the steering linkage idler arm bolts (1), steering linkage idler arm washers (2), and radiator outlet hose clamp bracket (3).
Remove the steering linkage idler arm (1) from the vehicle.
