Engine Protection Shield Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

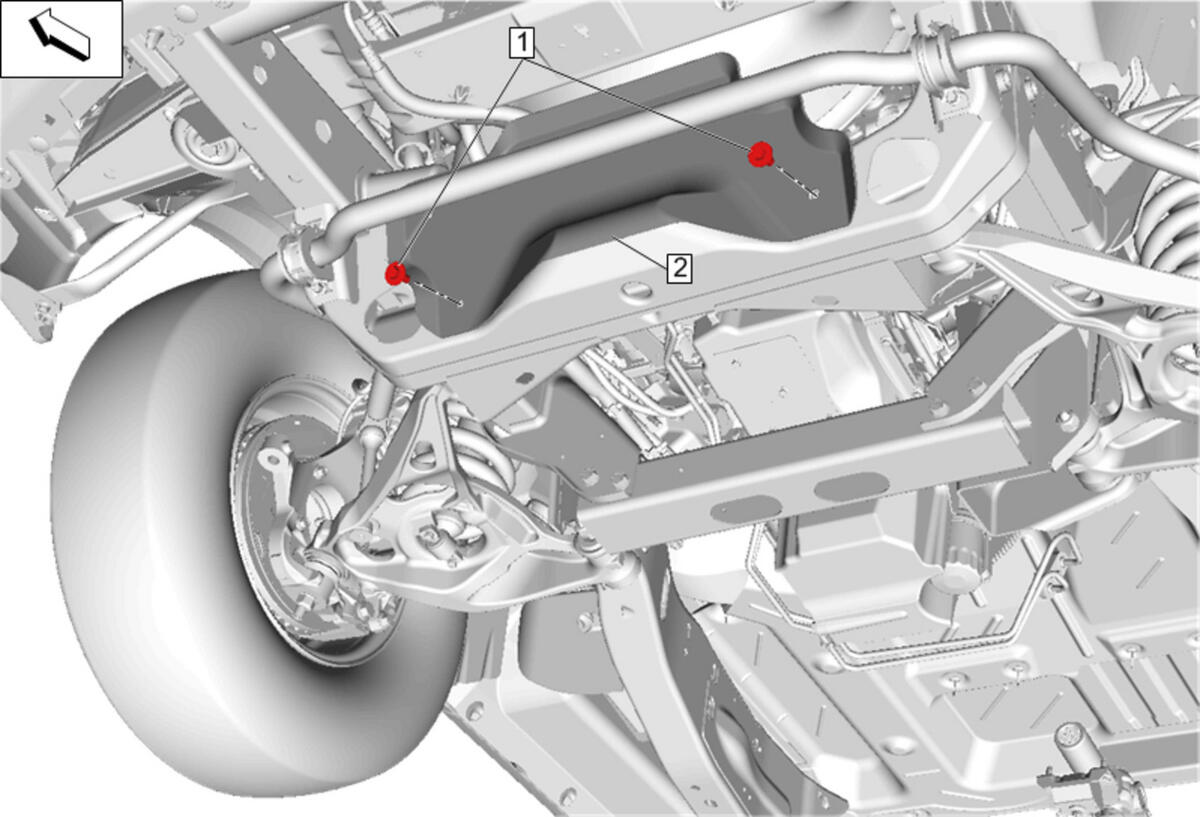

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Engine Protection Shield Bolt [2x]
CAUTION:
Refer to Fastener Caution Tighten 20 N.m (15 lb ft) |
| 2 | Engine Protection Shield |
