Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
- Ignition Lock Cylinder - Remove - Ignition Lock Cylinder Replacement
- Theft Deterrent Module - Remove - Theft Deterrent Module Replacement

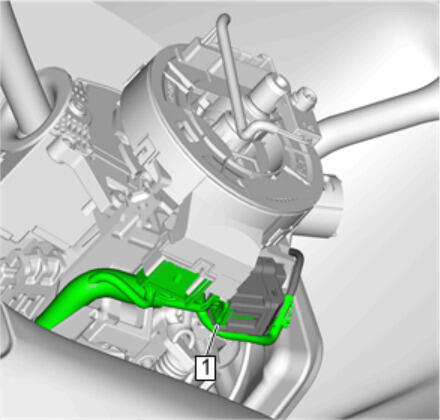

Disconnect the electrical connector (1).

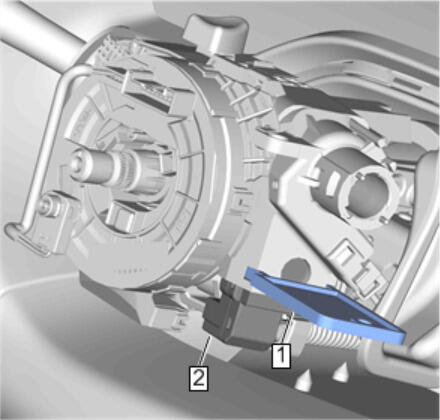

Use the J-42759 release tool (1) to release the lock tabs on the ignition and start switch (2).
- Remove the ignition and start switch (2) from the ignition lock cylinder case.
