Theft Deterrent Module Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

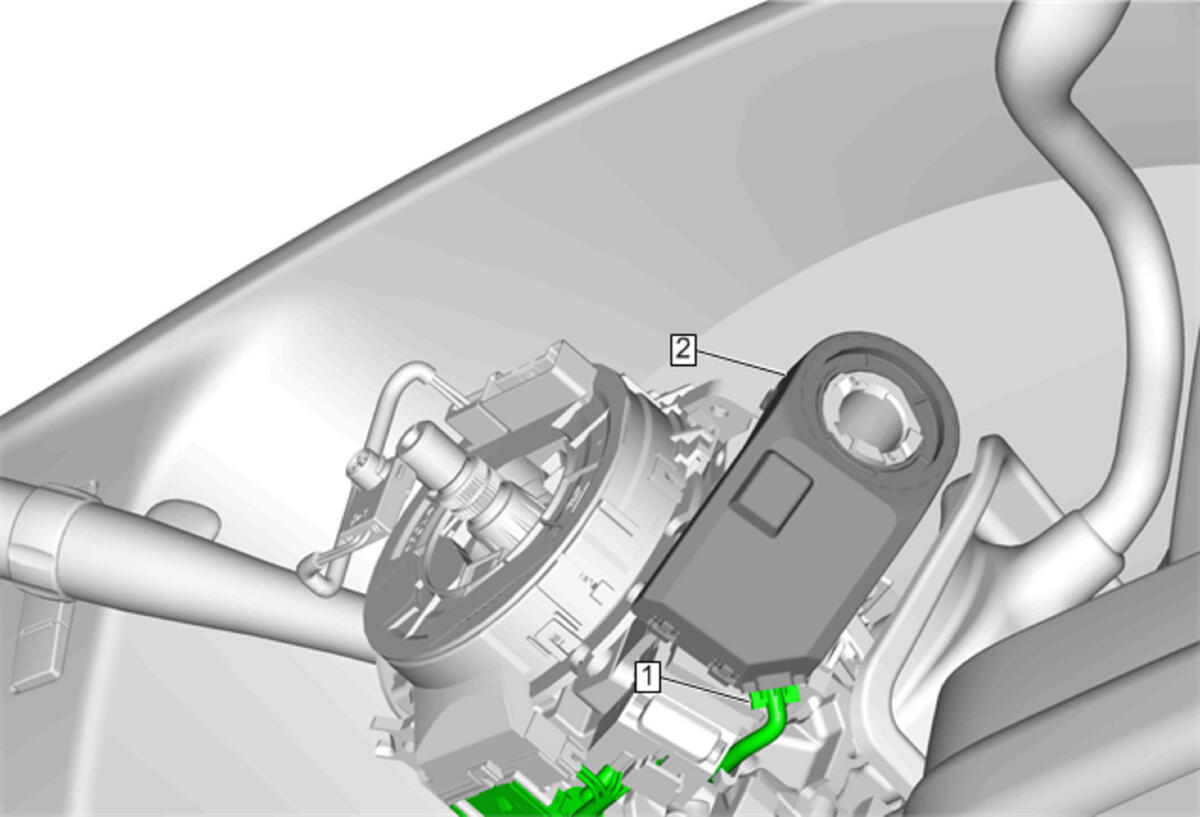

Callout	Component Name
Preliminary Procedure Ignition Lock Cylinder Replacement
1	Electrical Connector
2	Theft Deterrent Module Procedure Release the retaining tabs and remove the theft deterrent module from the ignition lock cylinder case. Program the theft deterrent system. Control Module References

Callout

Component Name

Preliminary Procedure
Ignition Lock Cylinder Replacement

Electrical Connector

Theft Deterrent Module

Procedure

Release the retaining tabs and remove the theft deterrent module from the ignition lock cylinder case.
Program the theft deterrent system. Control Module References
