Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
Front Shock Absorber (2) - Remove - Shock Absorber Replacement
- Front Stabilizer Shaft Link - Remove - Stabilizer Shaft Link Replacement
Front Coil Spring (2) - Remove - Front Spring Replacement (without C7I) , or Front Spring Replacement (with C7I)
Front Lower Control Arm Ball Stud Nut (1)@Front Lower Control Arm Ball Stud (2) - Remove

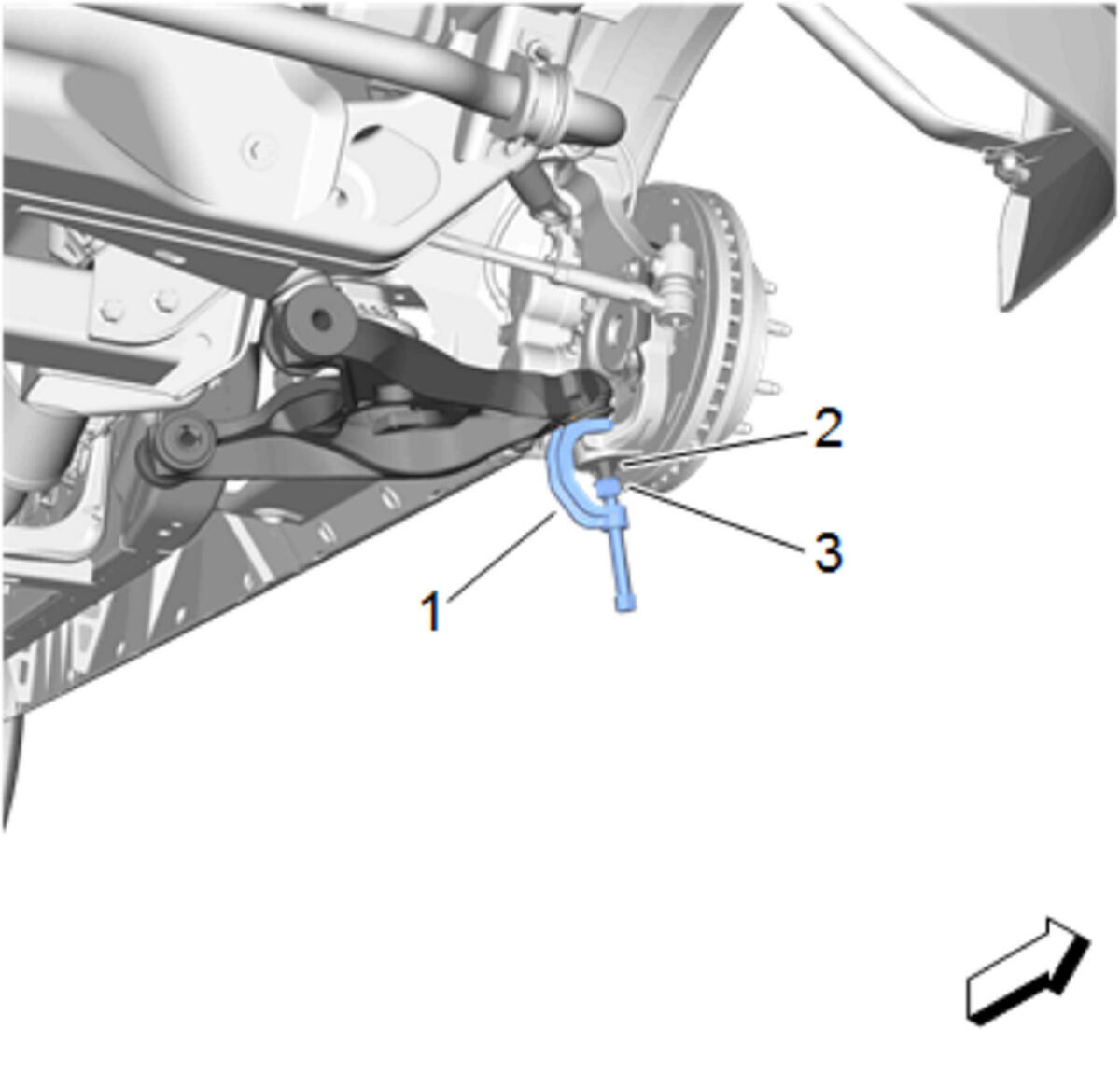

Using the J-45851 Ball Joint Separator Protector Adapters (3) and the CH-43631 Ball Joint Separator (1) as shown, separate the front lower control arm ball stud (2) from the steering knuckle.
Front Lower Control Arm (1) - Remove
