Stabilizer Shaft Link Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

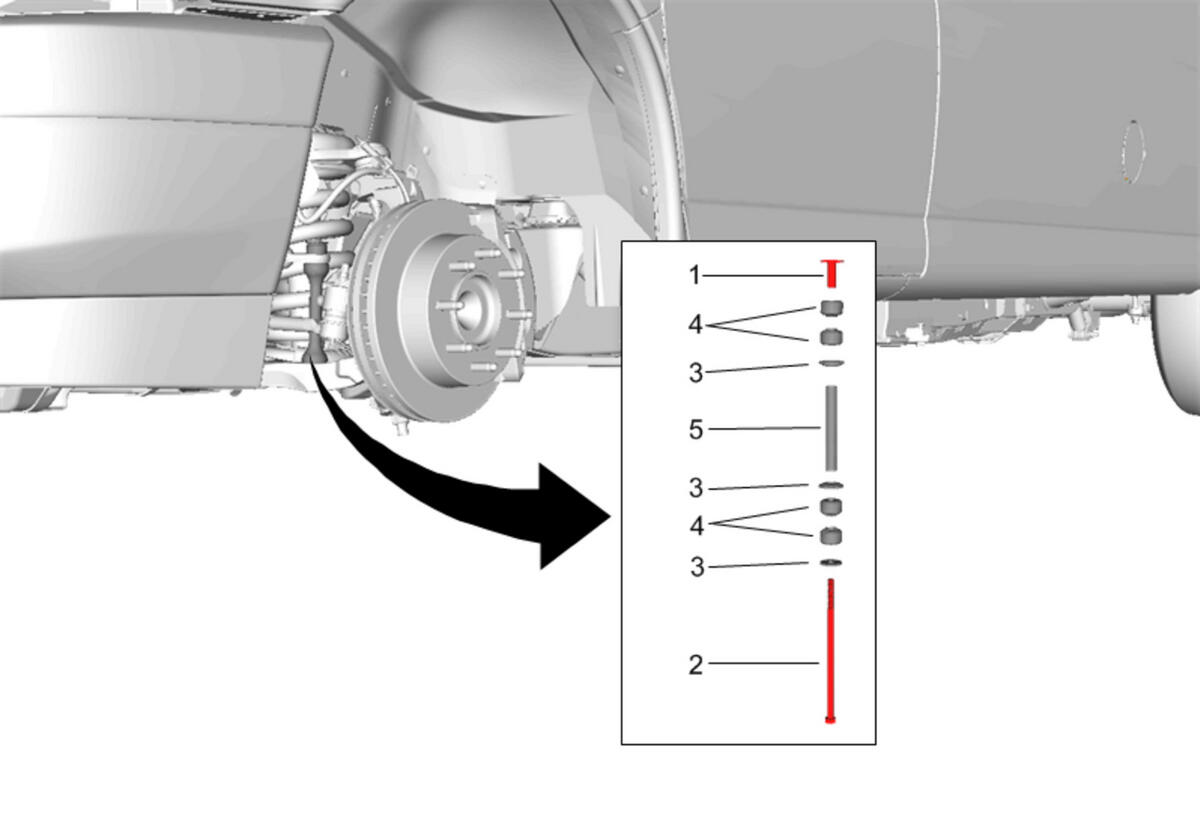

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Front Stabilizer Shaft Link Nut Procedure Remove all traces of the adhesive patch from the bolt and the mating threads using the appropriate tools.
2	Front Stabilizer Shaft Link Bolt CAUTION: Refer to Fastener Caution . Procedure Remove all traces of the adhesive patch from the bolt and the mating threads using the appropriate tools. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers Tighten 11 N.m (97 lb in)
3	Front Stabilizer Shaft Link Washer [3x]
4	Front Stabilizer Shaft Link Insulator [4x]
5	Front Stabilizer Shaft Link Spacer
