Rear Cargo Doors Harness Routing (Passenger or Cargo)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

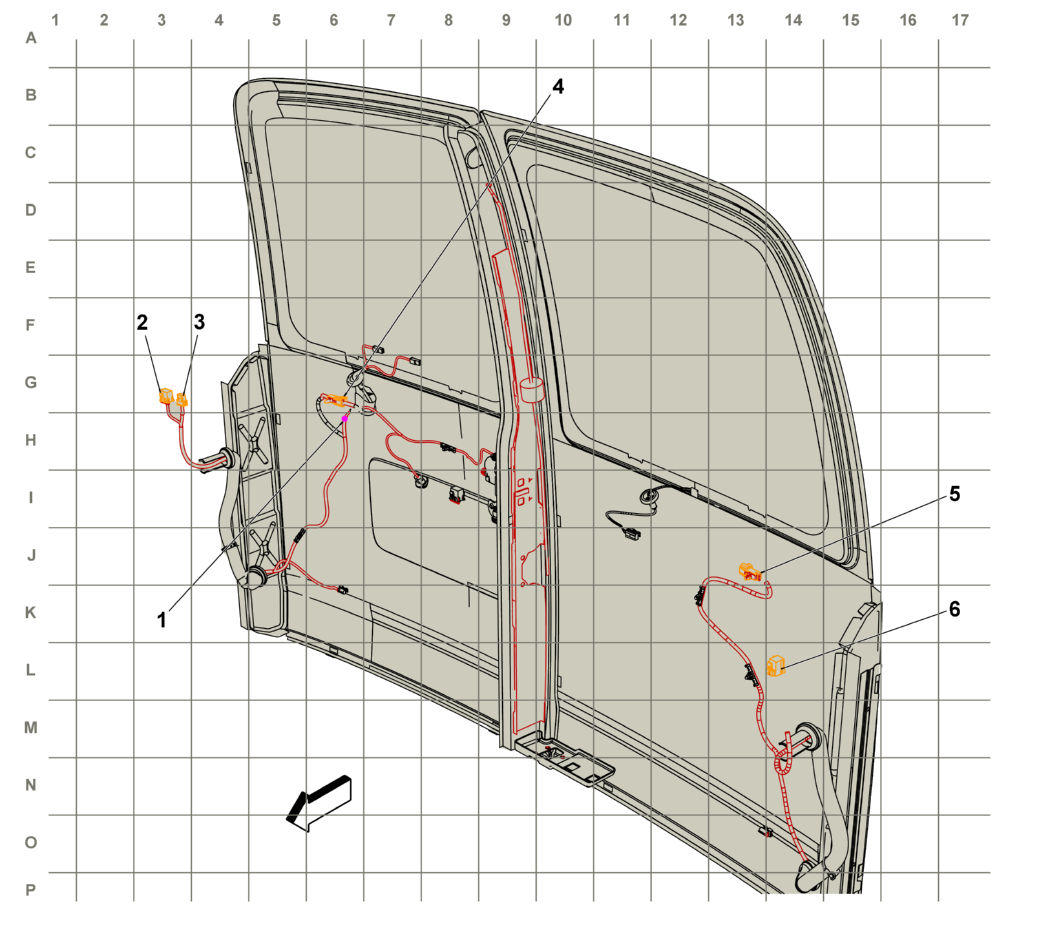

GM2830810Courtesy of GENERAL MOTORS COMPANY
Items
1. J902 Right Rear Cargo Door Harness (Cargo or Passenger with C49)
2. X400 Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X400 Rear Cargo Door Harness to Body Harness
3. X412 Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X412 Rear Cargo Door Harness to Body Harness
4. X902 Defogger Jumper Harness to Right Rear Cargo Door Harness (C49) X902 Defogger Jumper Harness to Rear Cargo Door Harness
5. X901 Defogger Jumper Harness to Left Rear Cargo Door Harness (C49) X901 Rear Window Defogger Harness to Left Rear Cargo Door Harness
6. X411 Left Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X411 Left Rear Cargo Door Harness to Body Harness
