X412 Rear Cargo Door Harness To Body Harness
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

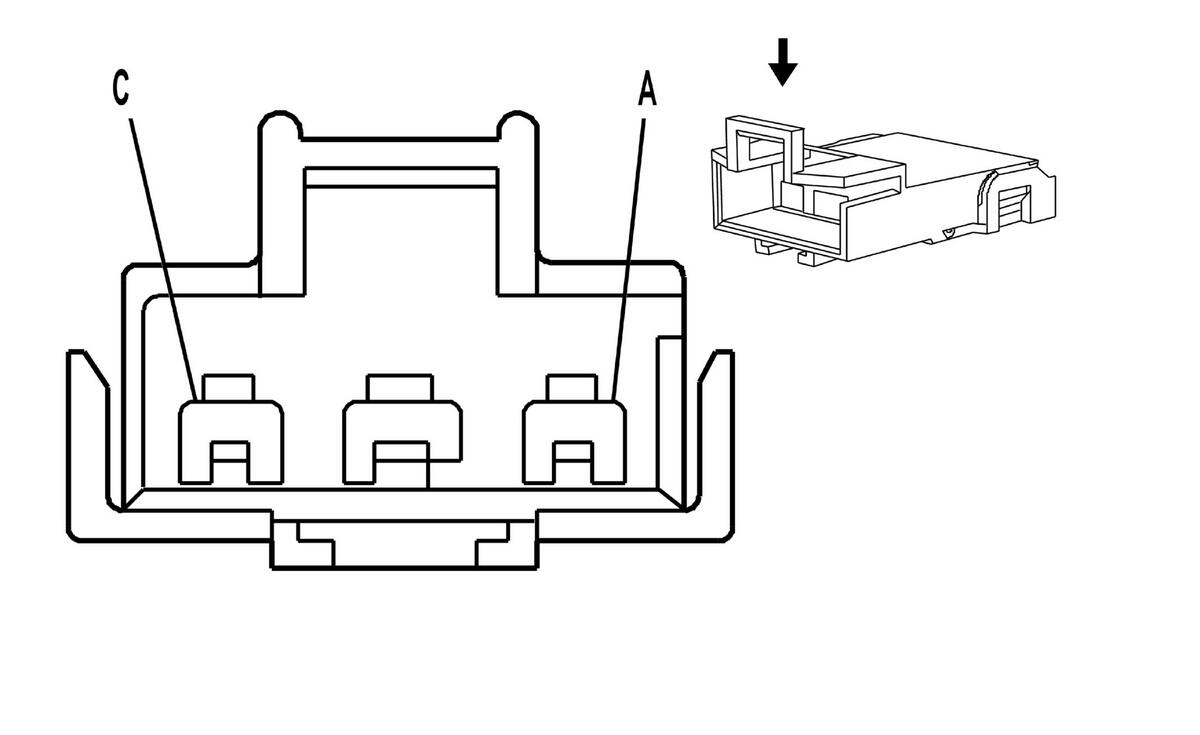

Connector Part Information
|
Connector Part Information
|
Terminal part information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-40 (BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| II | Not Required | J-35616-4A (PU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| III | Not Required | J-35616-41 (BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| IV | Not Required | J-35616-5 (PU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Terminal Type ID | Option | Function | Pin | Size | Color | Circuit | Terminal Type ID | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.5 | BN | 2509 | II | - | Left Rear Park Lamp Control | A | 0.5 | BN | 2509 | IV | - |
| B | 5 | PU | 293 | I | - | Rear Defog Element Control | B | 5 | PU | 293 | III | - |
| C | 3 0.5 |
BK BK |
1050 1050 |
II II |
C49 -C49 |
Ground Ground |
C | 3 | BK | 1050 | IV | - |
