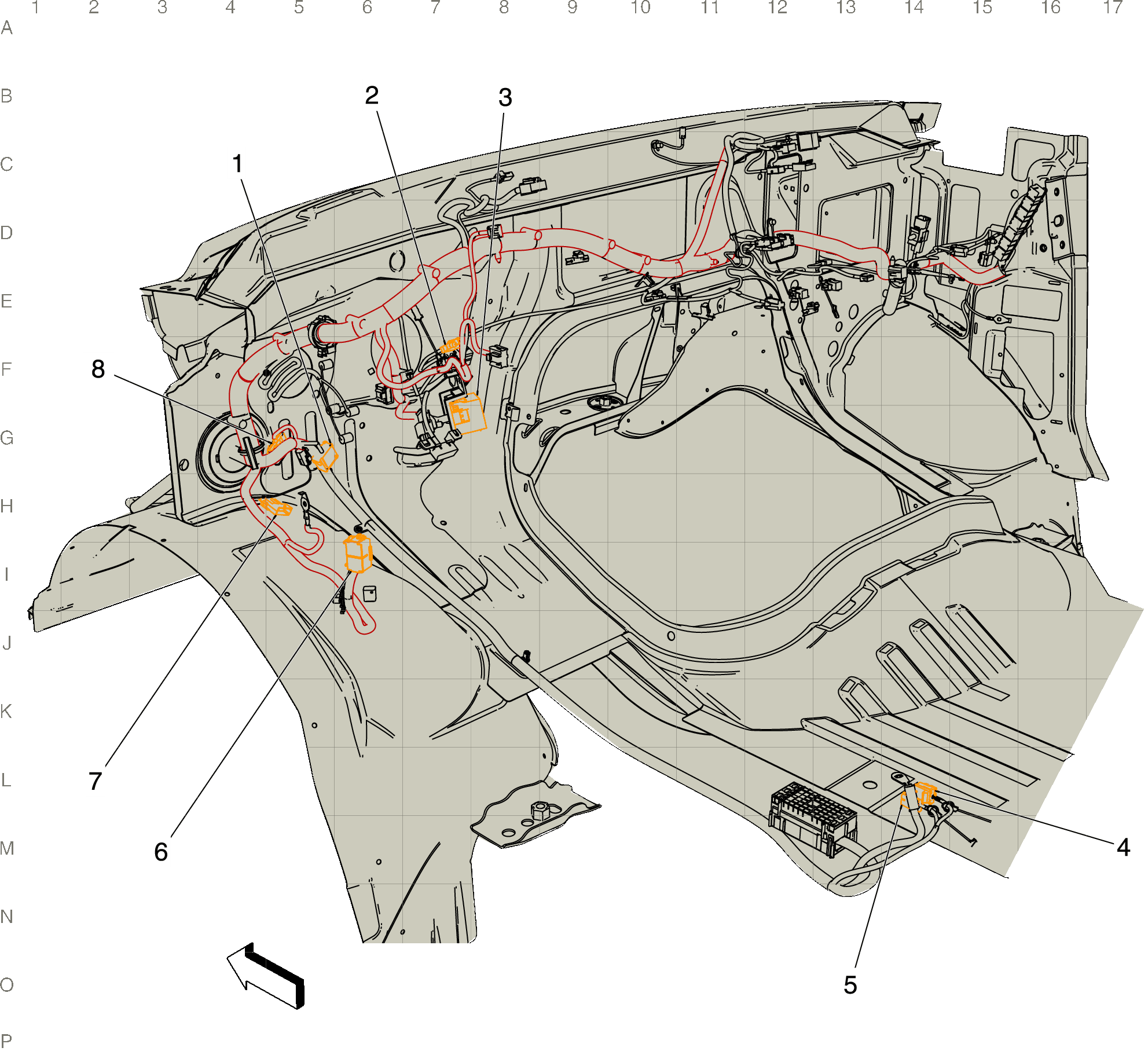

Instrument Panel Harness Routing - Dash Area (1 of 2)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
GM4664697Courtesy of GENERAL MOTORS COMPANY
Items
1. JX250 Instrument Panel Harness JX250 Splice Pack
2. X276 Steering Wheel Harness to Instrument Panel Harness X276 Steering Wheel Harness to Instrument Panel Harness
3. X200 Steering Column Harness to Instrument Panel Harness X200 Steering Column Harness to Instrument Panel Harness
4. X331 Instrument Panel Harness to Body Harness X331 Instrument Panel Harness to Body Harness
5. X330 Instrument Panel Harness to Body Harness X330 Instrument Panel Harness to Body Harness
6. X318 Instrument Panel Harness to Body Harness X318 Instrument Panel Harness to Body Harness
7. X222 Upfitter Provision Harness to Instrument Panel Harness (YF2 or YF7) X222 Upfitter Provision Harness to Instrument Panel Harness
8. JX200 Instrument Panel Harness JX200 Splice Pack
