Forward Lamp Harness Routing

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

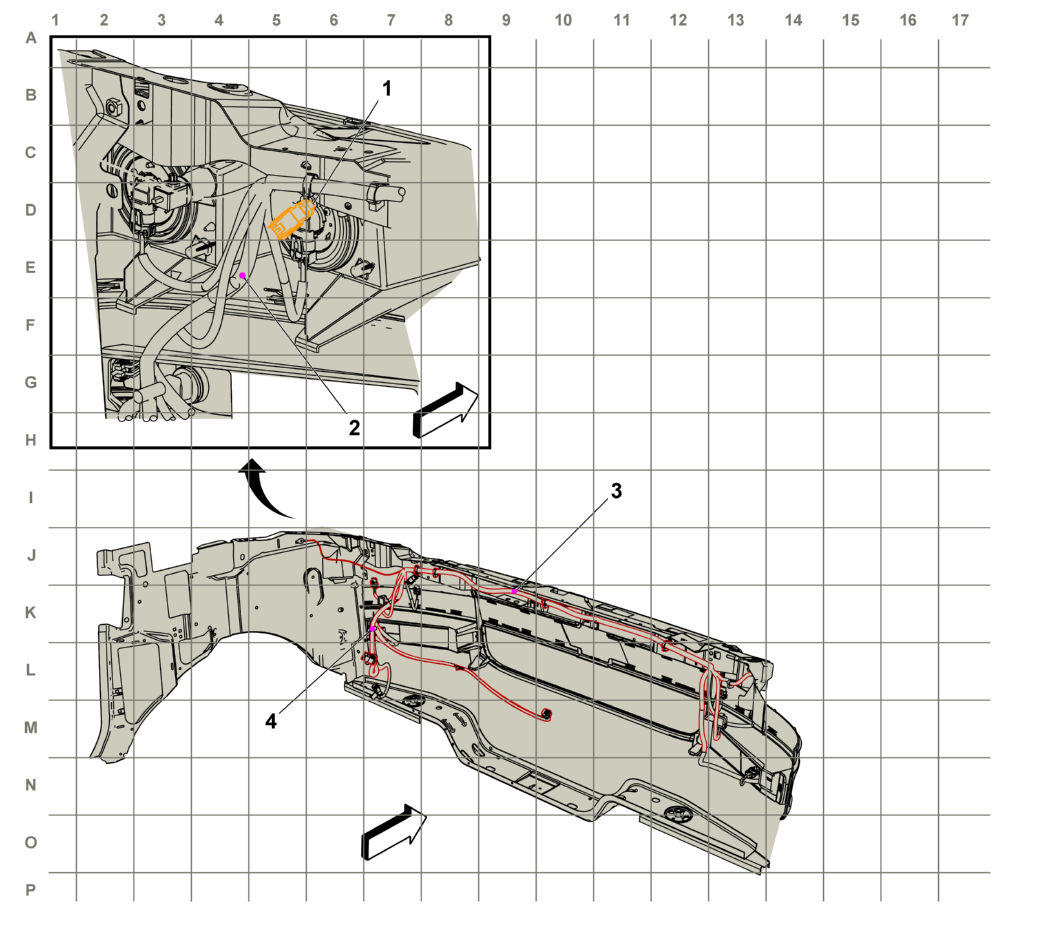

GM4006152Courtesy of GENERAL MOTORS COMPANY
Items
1. X150 Instrument Panel Harness to Forward Lamp Harness X150 Instrument Panel Harness to Forward Lamp Harness
2. J110 Forward Lamp Harness
3. J121 Forward Lamp Harness
4. J122 Forward Lamp Harness
