Engine Harness Routing - Front (L96 or LC8)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

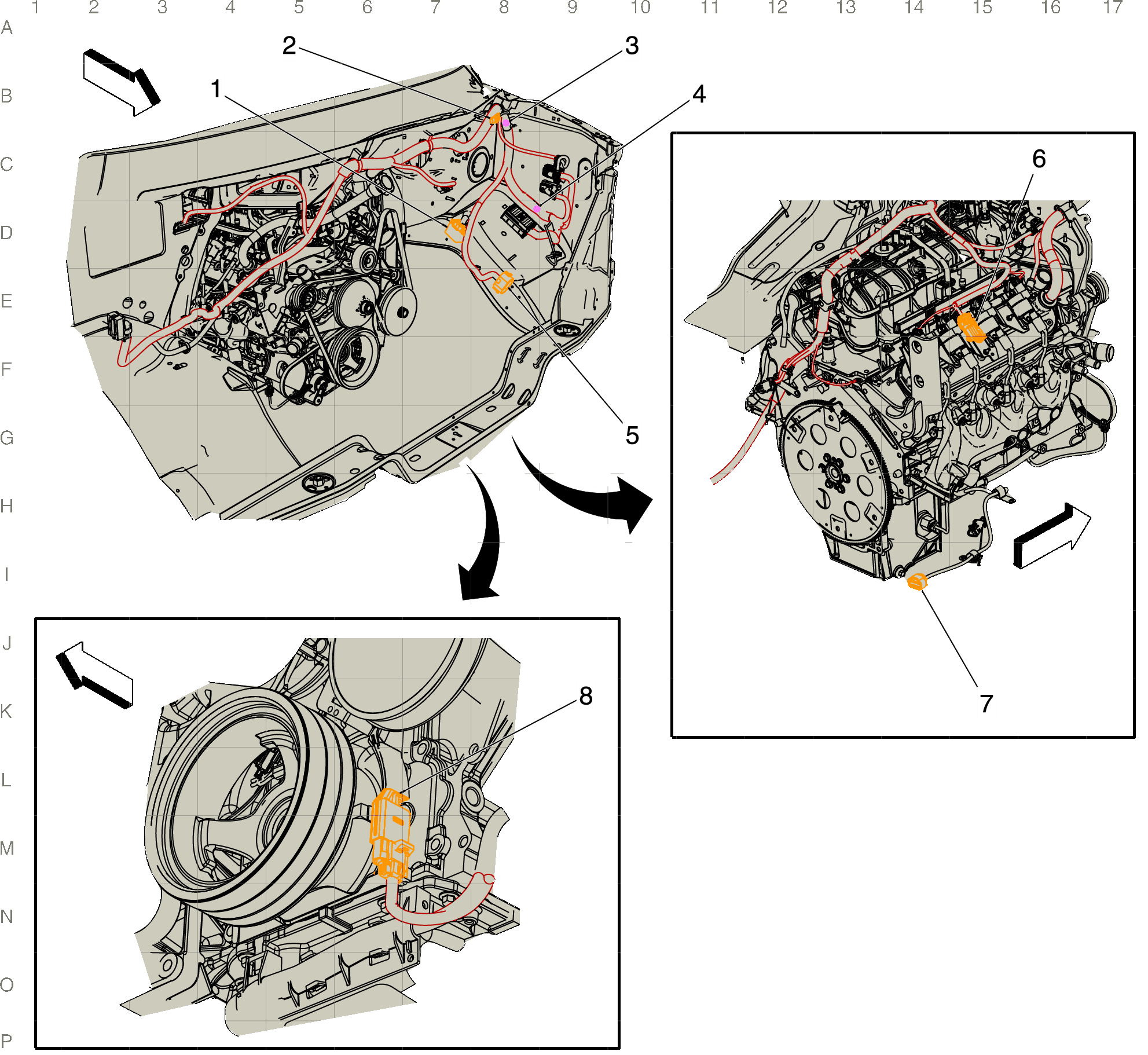

GM4664701Courtesy of GENERAL MOTORS COMPANY
Items
1. X101 Engine Harness to Chassis Harness (LV1, L96, or LC8) X101 Engine Harness to Chassis Harness
2. X109 Engine Harness to Underhood Lamp Harness (TR9) X109 Engine Harness to Underhood Lamp Harness
3. J115 Engine Harness
4. J123 Engine Harness (L96, or LC8)
5. X100 Instrument Panel Harness to Engine Harness X100 Instrument Panel Harness to Engine Harness
6. X126 Engine Harness to Ignition Coil Harness (L96, or LC8) X126 Engine Harness to Ignition Coil Harness
7. X202 Instrument Panel Harness to Engine Harness X202 Instrument Panel Harness to Engine Harness
8. X177 Engine Harness to Camshaft Position Sensor Jumper Harness (L96, or LC8) X177 Engine Harness to Camshaft Position Sensor Jumper Harness
