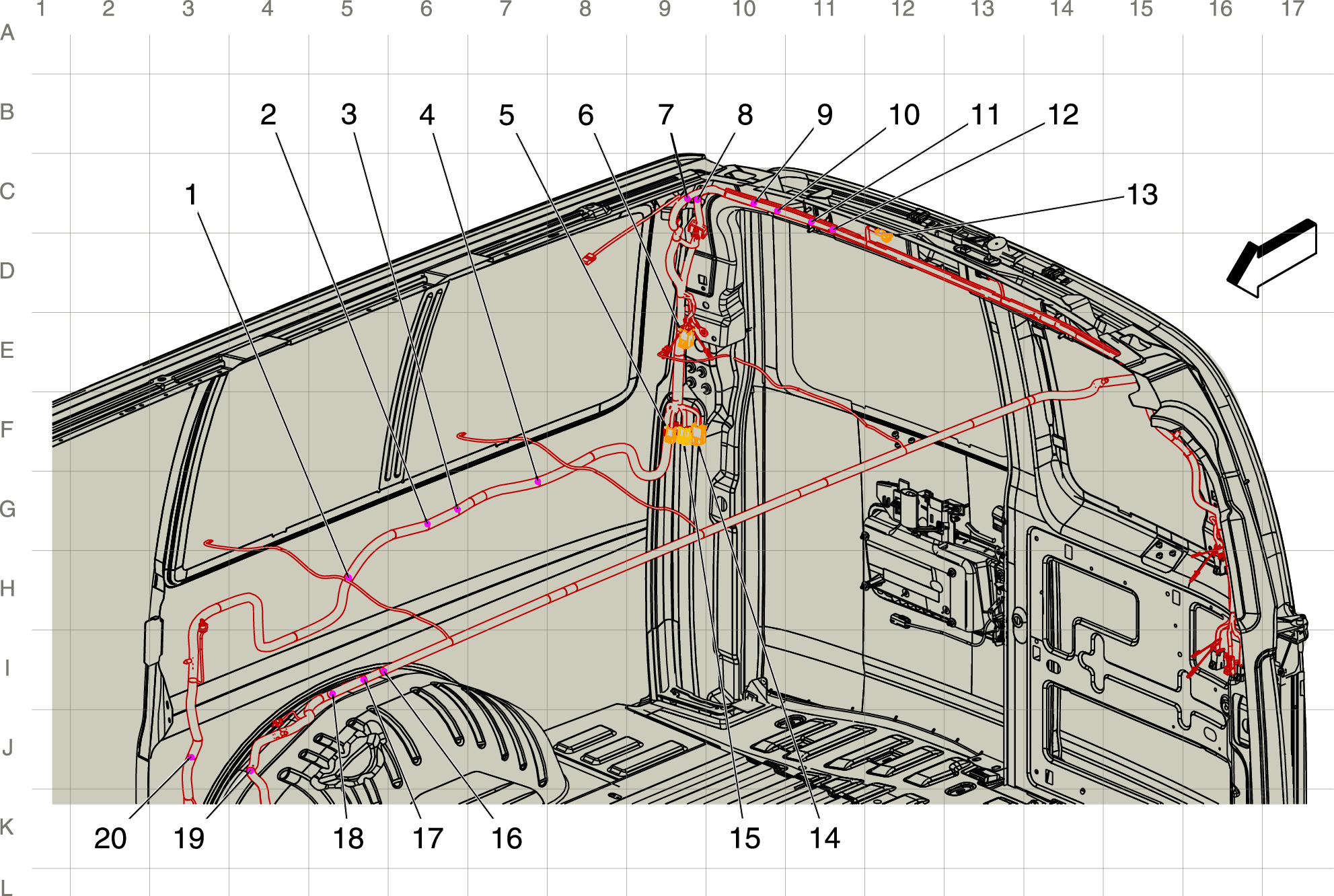

Body Harness Routing - Right Rear Passenger Compartment (2 of 2)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J376 Body Harness (Cargo or Passenger) |
| 2. J308 Body Harness (C69) |
| 3. J310 Body Harness (C69) |
| 4. J311 Body Harness (C69) |
| 5. X403 Rear Cargo Door Harness to Body Harness (UVC) X403 Rear Cargo Door Harness to Body Harness (CARGO/PASSENGER)X403 Rearview Camera Harness to Body Harness (CUTAWAY) |
| 6. X420 Right Rear Lamp Harness to Body Harness (Passenger or Cargo) X420 Right Rear Lamp Harness to Body Harness |
| 7. J403 Body Harness (Cargo or Passenger) |
| 8. J451 Body Harness (YF2 or YF7) |
| 9. J450 Body Harness (YF2 or YF7) |
| 10. J452 Body Harness (YF2 or YF7) |
| 11. J453 Body Harness (YF2 or YF7) |
| 12. J410 Body Harness (Cargo or Passenger) |
| 13. X415 Rear Speaker Harness to Body Harness (Passenger or Cargo) X415 Rear Speaker Harness to Body Harness |
| 14. X412 Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X412 Rear Cargo Door Harness to Body Harness |
| 15. X400 Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X400 Rear Cargo Door Harness to Body Harness |
| 16. J316 Body Harness (WRF) |
| 17. J356 Body Harness |
| 18. J313 Body Harness (WRF) |
| 19. J312 Body Harness (WRF) |
| 20. J373 Body Harness (Passenger) |
