Body Harness Routing - Right Rear Passenger Compartment (1 of 2)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

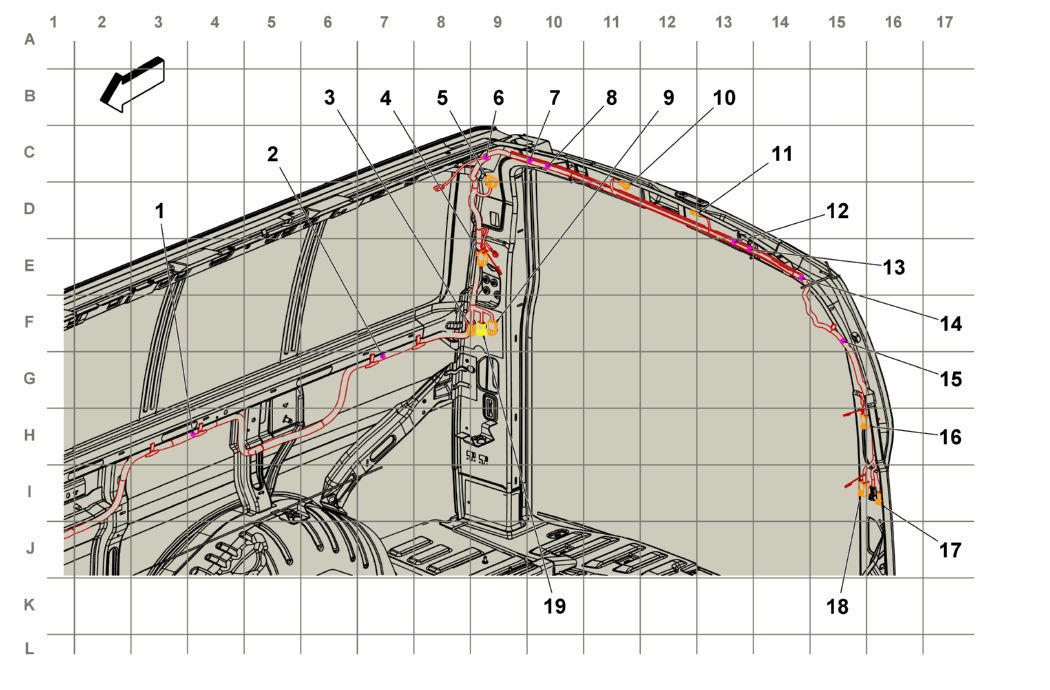

| Items |
|---|
| 1. J310 Body Harness (C69) |
| 2. J311 Body Harness (C69) |
| 3. X403 Rear Cargo Door Harness to Body Harness (UVC) X403 Rear Cargo Door Harness to Body Harness (CARGO/PASSENGER)X403 Rearview Camera Harness to Body Harness (CUTAWAY) |
| 4. X420 Right Rear Lamp Harness to Body Harness (Passenger or Cargo) X420 Right Rear Lamp Harness to Body Harness |
| 5. X421 Body Harness to Headliner Harness X421 Body Harness to Headliner Harness |
| 6. J403 Body Harness (Cargo or Passenger) |
| 7. J451 Body Harness (YF2 or YF7) |
| 8. J450 Body Harness (YF2 or YF7) |
| 9. X412 Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X412 Rear Cargo Door Harness to Body Harness |
| 10. X415 Rear Speaker Harness to Body Harness (Passenger or Cargo) X415 Rear Speaker Harness to Body Harness |
| 11. X419 Center High Mounted Stop Lamp Harness to Body Harness (Passenger or Cargo) X419 Center High Mounted Stop Lamp Harness to Body Harness |
| 12. J452 Body Harness (YF2 or YF7) |
| 13. J453 Body Harness (YF2 or YF7) |
| 14. J410 Body Harness (Cargo or Passenger) |
| 15. J401 Body Harness (C36, C49, or C69) |
| 16. X410 Left Rear Lamp Harness to Body Harness (Passenger or Cargo) X410 Left Rear Lamp Harness to Body Harness |
| 17. X407 Auxiliary HVAC Harness to Body Harness (C36 or C69) X407 Auxiliary HVAC Harness to Body Harness |
| 18. X411 Left Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X411 Left Rear Cargo Door Harness to Body Harness |
| 19. X400 Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X400 Rear Cargo Door Harness to Body Harness |
