Body Harness Routing - Right Front of Passenger Compartment (2 of 2)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

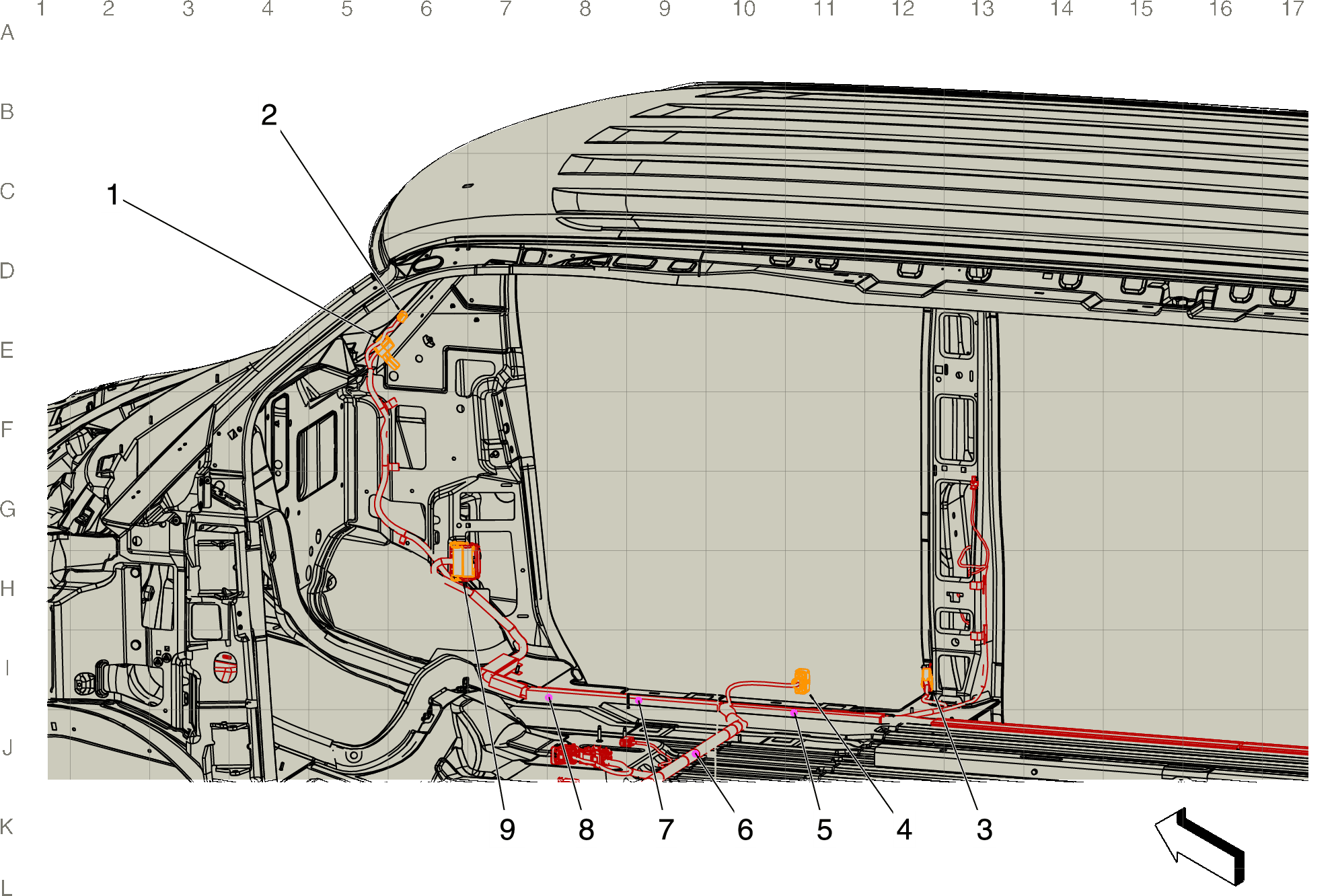

GM4861792Courtesy of GENERAL MOTORS COMPANY
Items
1. X205 Front Headliner Harness to Body Harness X205 Headliner Harness to Body Harness
2. X204 Body Harness to Headliner Harness X204 Body Harness to Headliner Harness
3. JX347 Body Harness JX347 Splice Pack
4. X306 Body Harness to Passenger Seat Harness X306 Body Harness to Passenger Seat Harness
5. J410 Body Harness (Cargo or Passenger)
6. J335 Body Harness (U80)
7. J376 Body Harness (Cargo or Passenger)
8. J375 Body Harness (Cargo without YF7)
9. X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness
