X600 Passenger Door Harness To Body Harness

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

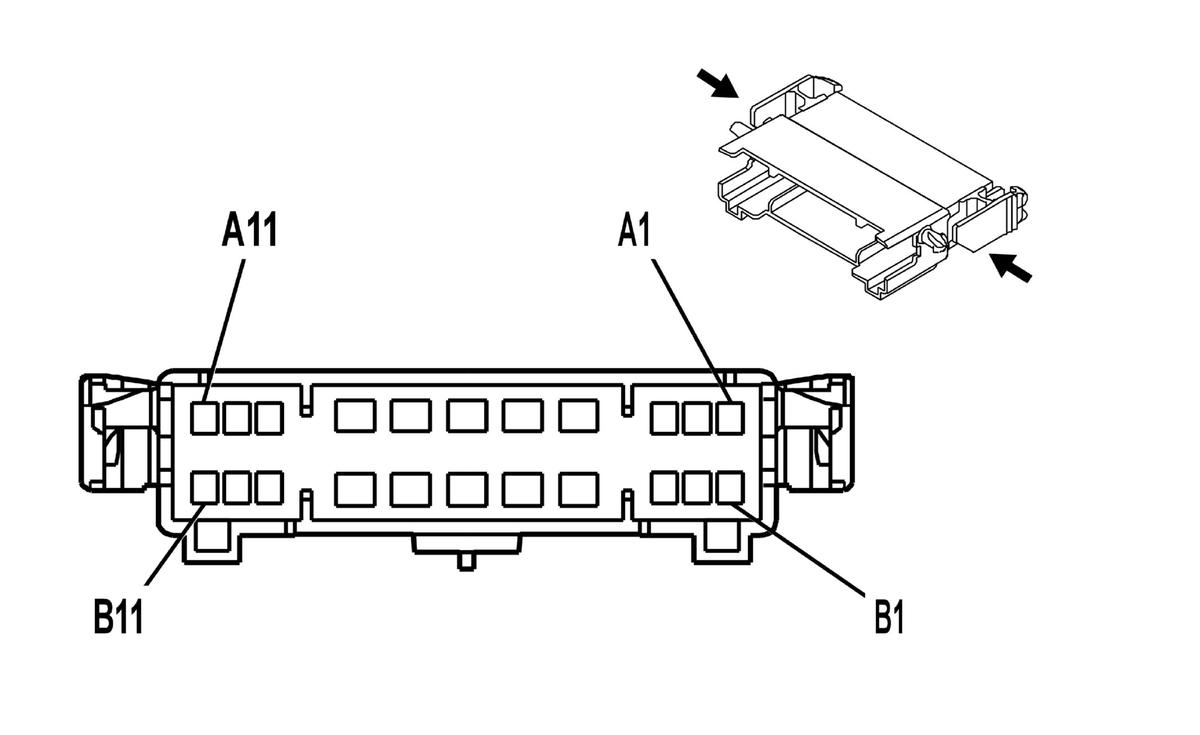

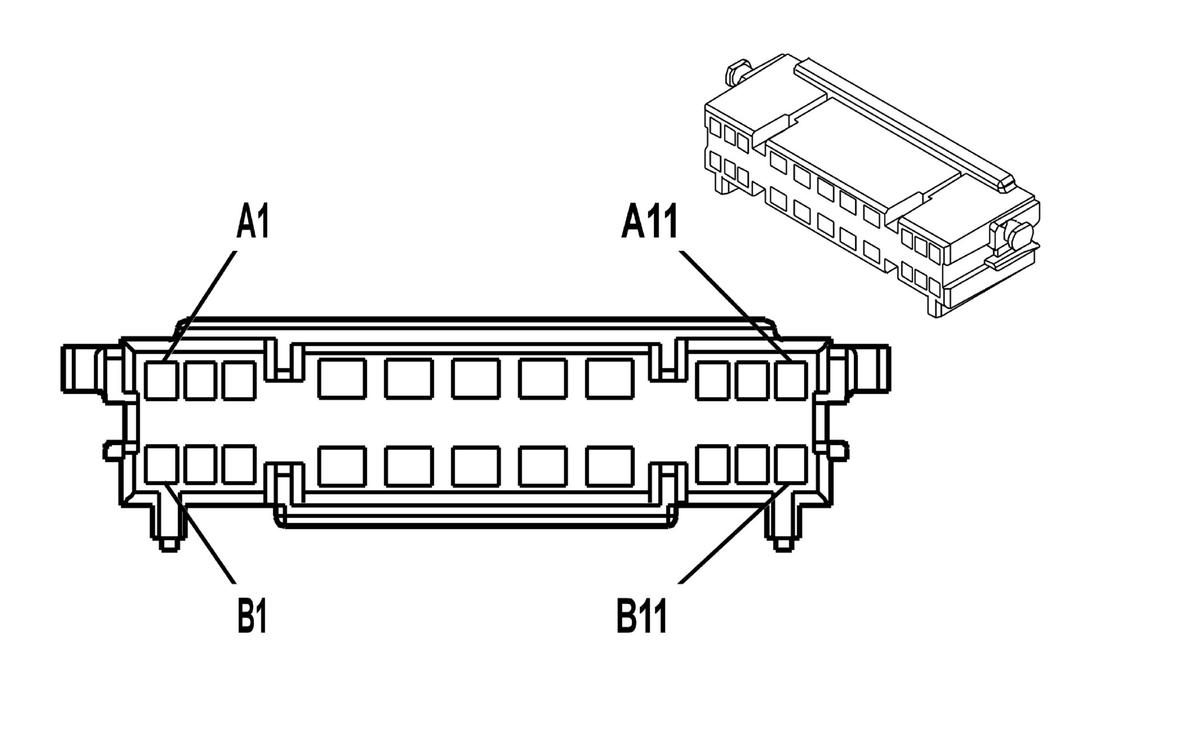

Connector Part Information Harness Type: Passenger Door OEM Connector: 15326063 Service Connector: Service by Harness Description: 22-Way F 150, 280 GT Series (GY)	Connector Part Information Harness Type: Body OEM Connector: 15326064 Service Connector: 15326064 Description: 22-Way M 150, 280 GT Series (GY)

Terminal part information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-14 (GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-4A (PU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	13575500	J-35616-3 (GY)	J-38125-215A	15304702	Delphi 19	2	4
IV	13575500	J-35616-3 (GY)	J-38125-215A	15304702	Delphi 19	E	4
V	13575500	J-35616-3 (GY)	J-38125-215A	15304702	Delphi 19	E	C
VI	13575505	J-35616-5 (PU)	J-38125-215A	15304722	Delphi 8	E	C
VII	13575507	J-35616-5 (PU)	J-38125-215A	15304724	Delphi 8	2	A
VIII	13575510	J-35616-5 (PU)	J-38125-215A	15304724	Delphi 8	A	D
IX	13575511	J-35616-5 (PU)	J-38125-215A	15304722	Delphi 8	E	C

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
A1	0.8	OG	1853	I	-	Right Front Midrange Speaker Control (+)	A1	0.8	OG	1853	III	-
A2	0.8	TN	294	I	-	Door Lock Actuator Unlock Control	A2	0.8	TN	294	III	-
A3	0.8	OG	2267	I	-	Mirror Heating Element Control	A3	0.8	OG	2267	III	-
A4	3	L-BU	166	II	-	Power Window Master Switch Right Front Up Signal	A4	3	L-BU	166	VIII	-
A5	0.8	BK	1850	II	AU3+A31/DEB/DE5/UFT	Ground	A5	-	-	-	-	-
A6	0.35	BN/WH	1498	II	-	Right Mirror Motor Up Control	A6	0.5	BN/WH	1498	IX	-
A7	0.35	OG/WH	881	II	-	Right Mirror Motor Right Control	A7	0.5	OG/WH	881	IX	-
A8	0.35	TN/WH	746	II	-	Right Front Door Ajar Switch Signal	A8	0.35	TN/WH	746	VI	-
A9	0.35	BK	1850	I	-	Ground	A9	0.35	BK	1850	V	-
A10	0.5	D-GN	2134	I	-	Right Front Side Impact Sensing Module Signal	A10	0.5	D-GN	2134	IV	-
A11	0.35	L-BU	244	I	-	Passenger Door Lock Switch Lock Control	A11	0.35	L-BU	244	V	-
B1	0.8	D-GN	1953	I	-	Right Front Midrange Speaker (-) Low Reference	B1	0.8	D-GN	1953	III	-
B2	0.8	GY	295	I	-	Door Lock Actuator Lock Control	B2	0.8	GY	295	III	-
B3	0.5 0.5	GY D-BU/WH	5861 1315	II I	UFT -UFT	Passenger Side Object Detection LED Signal 1 Right Front Turn Signal Lamp Control	B3	0.5 0.5	GY D-BU/WH	5861 1315	IX IV	UFT -UFT
B4	3	TN	167	II	-	Power Window Master Switch Right Front Down Signal	B4	3	TN	167	VIII	-
B5	3	D-GN	1001	II	-	Retained Accessory Power Ignition	B5	3	D-GN	1001	VIII	-
B6	0.35	BN/WH	230	II	-	Instrument Panel Lamp Dimming Control	B6	0.35	BN/WH	230	VI	-
B7	0.35	PU/WH	889	II	-	Right Mirror Motor Down Control	B7	0.5	PU/WH	889	IX	-
B8	0.35	L-GN	1177	II	-	Right Front Door Open Switch Signal	B8	0.35	L-GN	1177	VI	-
B9	-	-	-	-	-	Not Occupied	B9	-	-	-	-	-
B10	0.5	WH/BK	6629	I	-	Right Front Side Impact Sensing Module Low Reference	B10	0.5	WH/BK	6629	IV	-
B11	0.35	D-BU	245	I	-	Passenger Door Lock Switch Unlock Control	B11	0.35	D-BU	245	V	-
