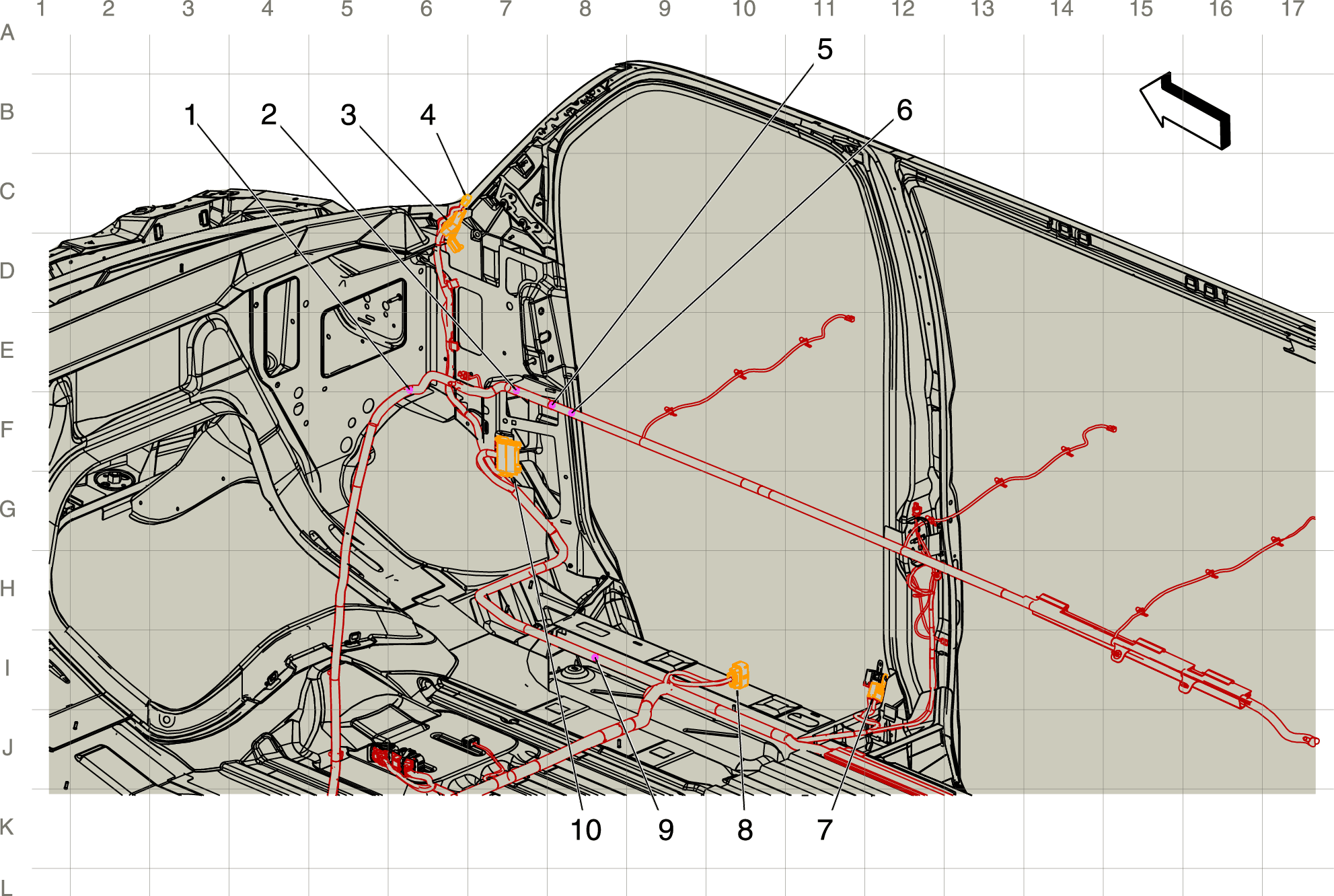

Body Harness Routing - Right Front of Passenger Compartment (1 of 2)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J312 Body Harness (WRF) |
| 2. J313 Body Harness (WRF) |
| 3. X205 Front Headliner Harness to Body Harness X205 Headliner Harness to Body Harness |
| 4. X204 Body Harness to Headliner Harness X204 Body Harness to Headliner Harness |
| 5. J356 Body Harness |
| 6. J316 Body Harness (WRF) |
| 7. JX348 Body Harness JX348 Splice Pack |
| 8. X306 Body Harness to Passenger Seat Harness X306 Body Harness to Passenger Seat Harness |
| 9. J334 Body Harness (UVC) |
| 10. X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness |
