Camshaft Position Sensor Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

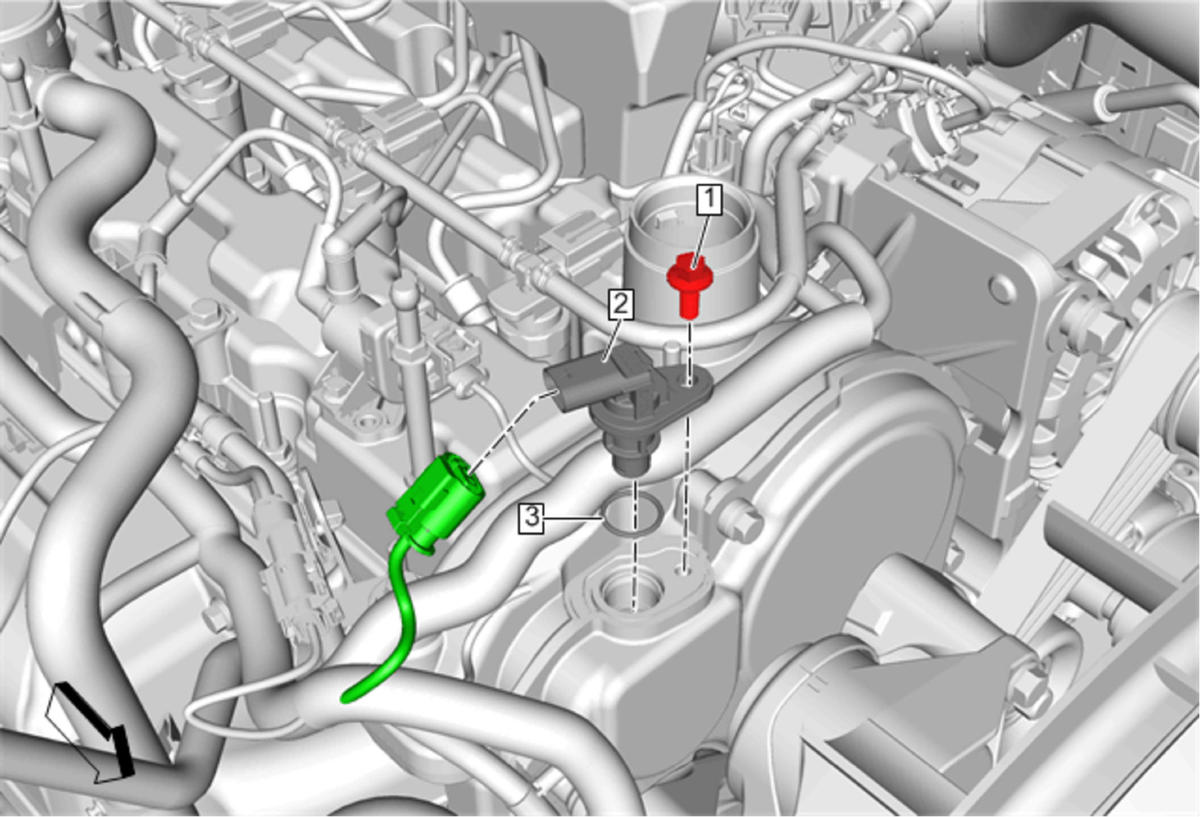

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Assembly Replacement |
|
| 1 | Camshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 11 N.m (97 lb in) |
| 2 | Camshaft Position Sensor Procedure Disconnect the electrical connector from the camshaft position sensor. |
| 3 | Camshaft Position Sensor Seal
NOTE:
If reinstalling the sensor, inspect the seal and replace as needed. Always install the NEW seal supplied with the sensor. |
