Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Install the power steering pump bracket with the power steering pump bracket bolts.
Install the power steering pump bracket (1) with the 3 power steering pump bracket bolts.
- CAUTION:

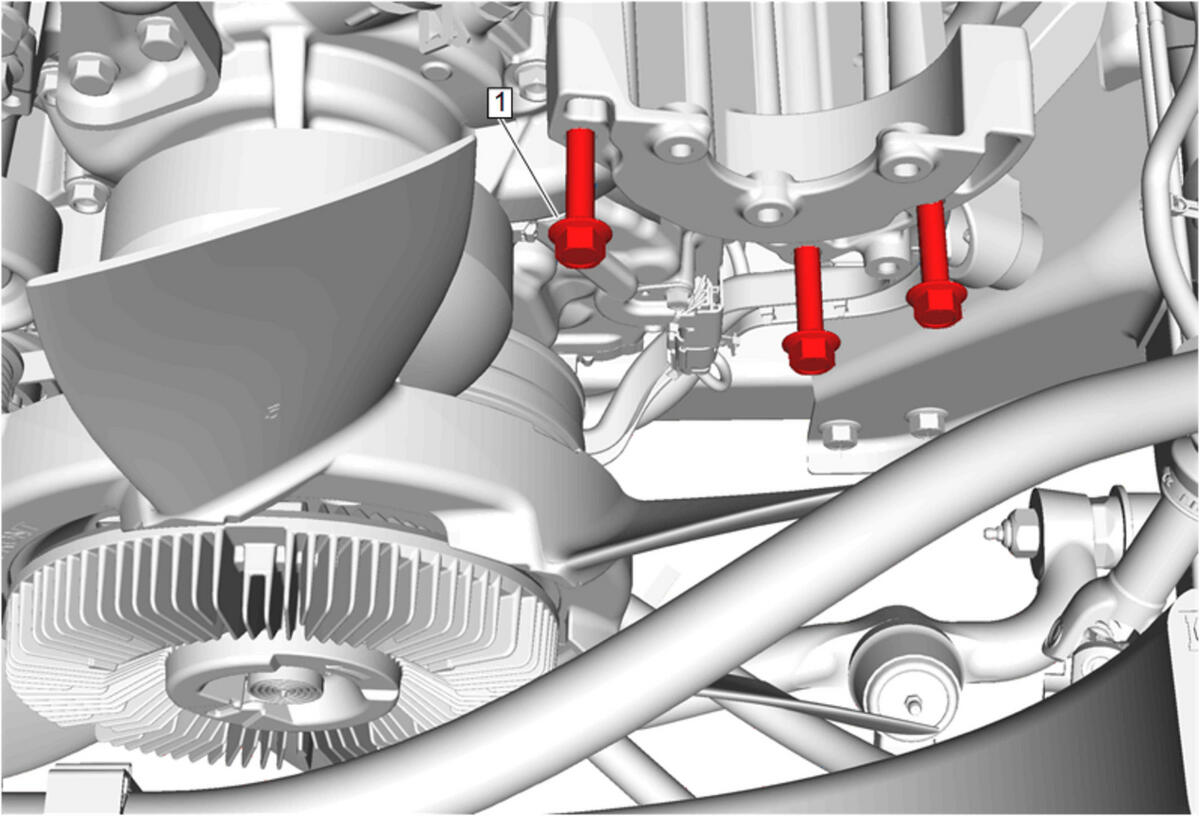

Power Steering Pump Bracket Bolt(1) - Install and tighten[3x]58 N.m (43 lb ft)
Power Steering Pump(1) - Install - Power Steering Pump Replacement (With LWN) , or Power Steering Pump Replacement (With LC8 L96) , or Power Steering Pump Replacement (With LV1)
Power Brake Booster Inlet Hose(3) @ Power Steering Pump - Install - Power Brake Booster Inlet Hose Replacement (With LWN) , or Power Brake Booster Inlet Hose Replacement (Without LWN)
- Power Steering Fluid Cooler Hose(2) @ Power Steering Pump - Install - Power Steering Cooler Pipe/Hose Replacement (Without LWN, Without Brake Warning Indicator) , or Power Steering Cooler Pipe/Hose Replacement (Without LWN, With Brake Warning Indicator)
- Power Steering Fluid Reservoir Outlet Hose(1) @ Power Steering Pump - Install - Power Steering Fluid Reservoir Outlet Hose Replacement (With LWN) , or Power Steering Fluid Reservoir Outlet Hose Replacement (Without LWN)
- Install the upper fan shroud. Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
