Air Cleaner Outlet Duct Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

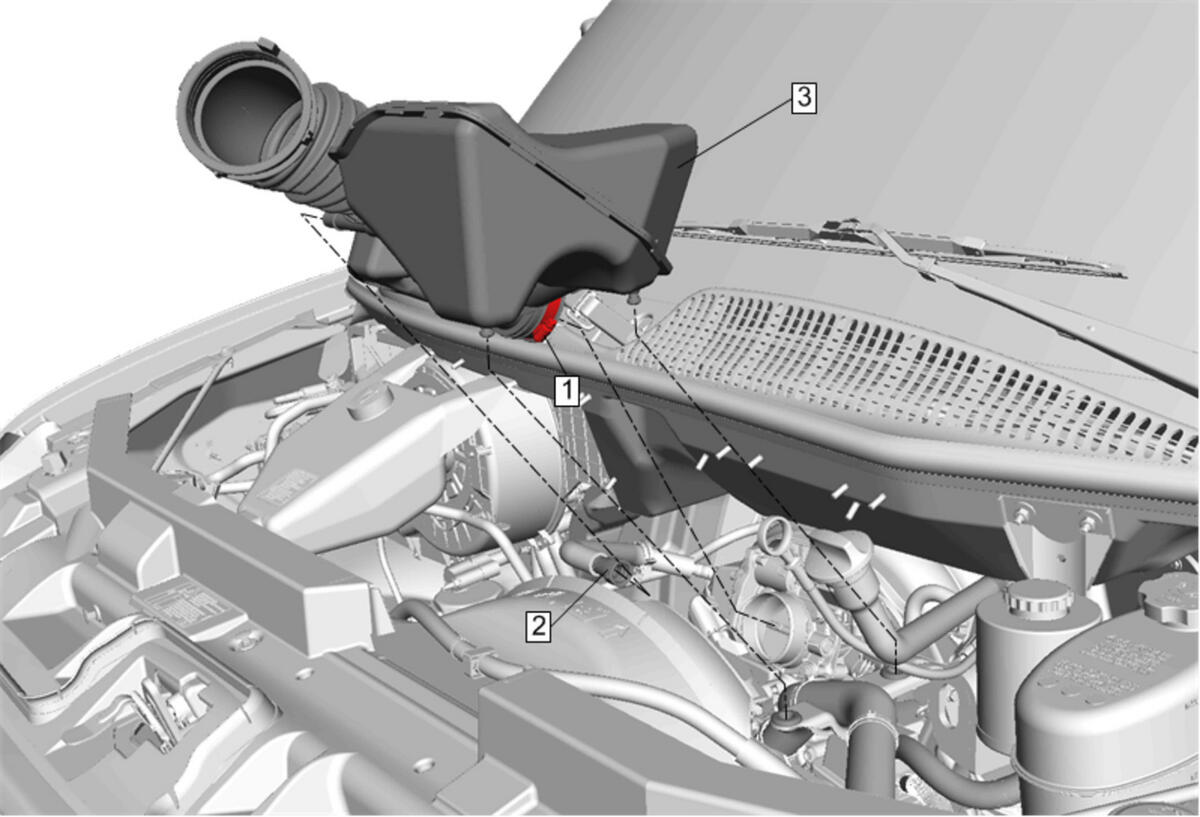

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Assembly Replacement |
|
| 1 | Air Cleaner Outlet Duct Clamp
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Positive Crankcase Ventilation Tube Procedure PCV Tube @ Air Cleaner Outlet Duct - Disconnect - Plastic Collar Quick Connect Fitting Service |
| 3 | Air Cleaner Outlet Duct Procedure Remove the air cleaner outlet duct from the retainers. |
