Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:

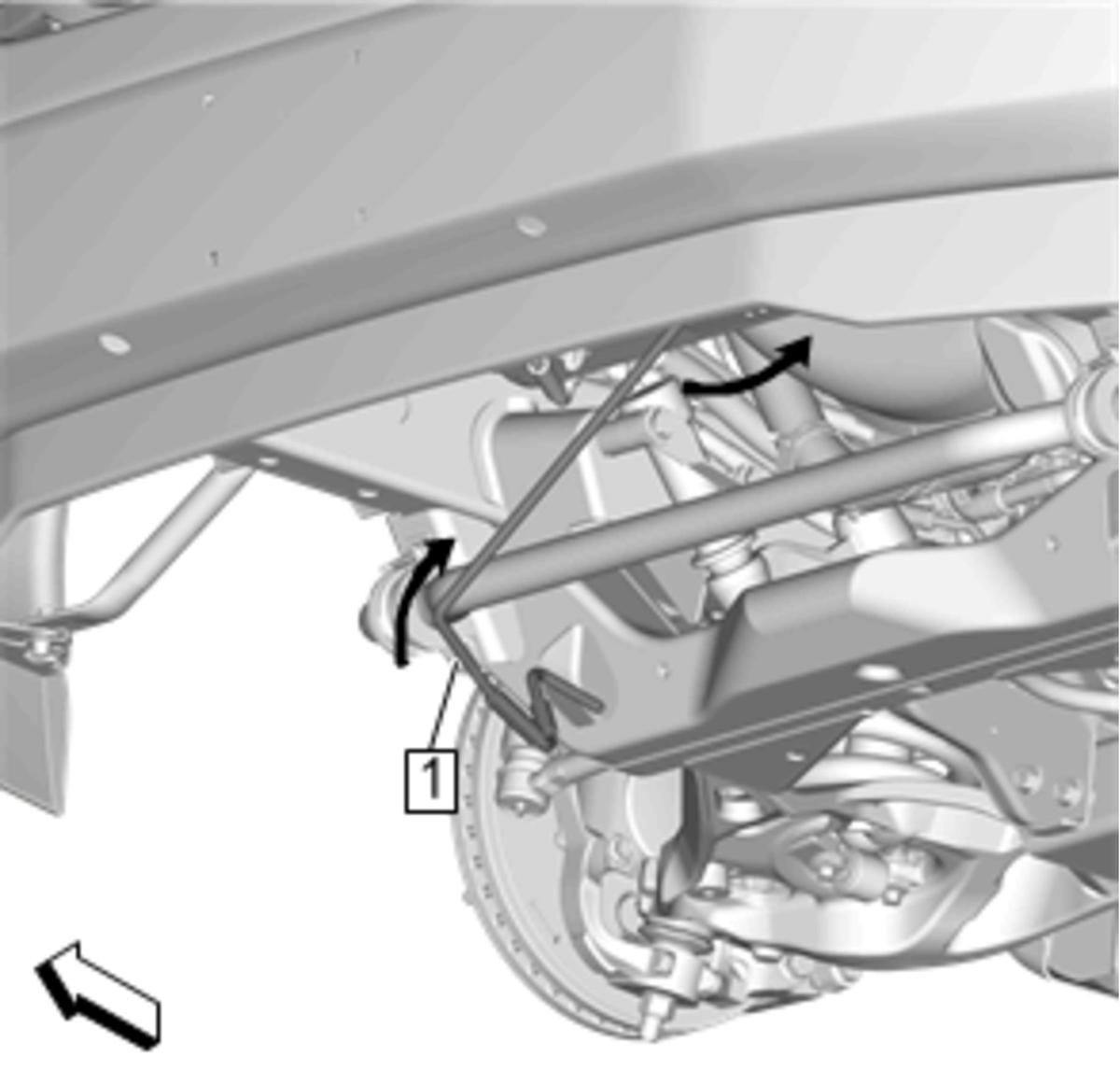

From underneath the vehicle, guide the left side of the power steering gear outlet hose (1) into the engine compartment and then maneuver the right side of the hose into position on the vehicle frame.

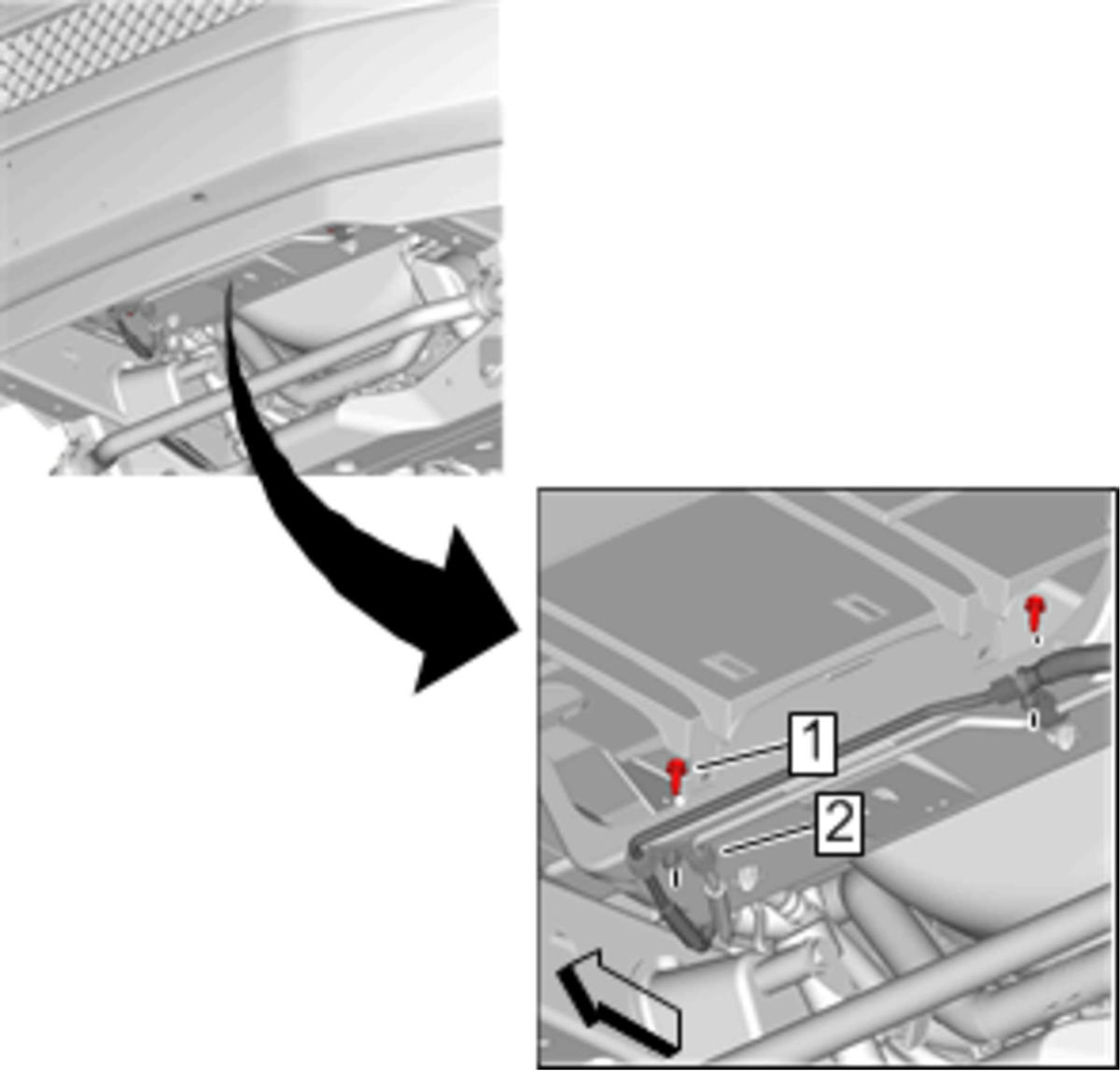

Power Brake Booster Inlet Hose Bracket (2) - Install[2x]
- Power Brake Booster Inlet Hose Bracket Bolt (1) - Install and tighten[2x]5 N.m (44 lb in)

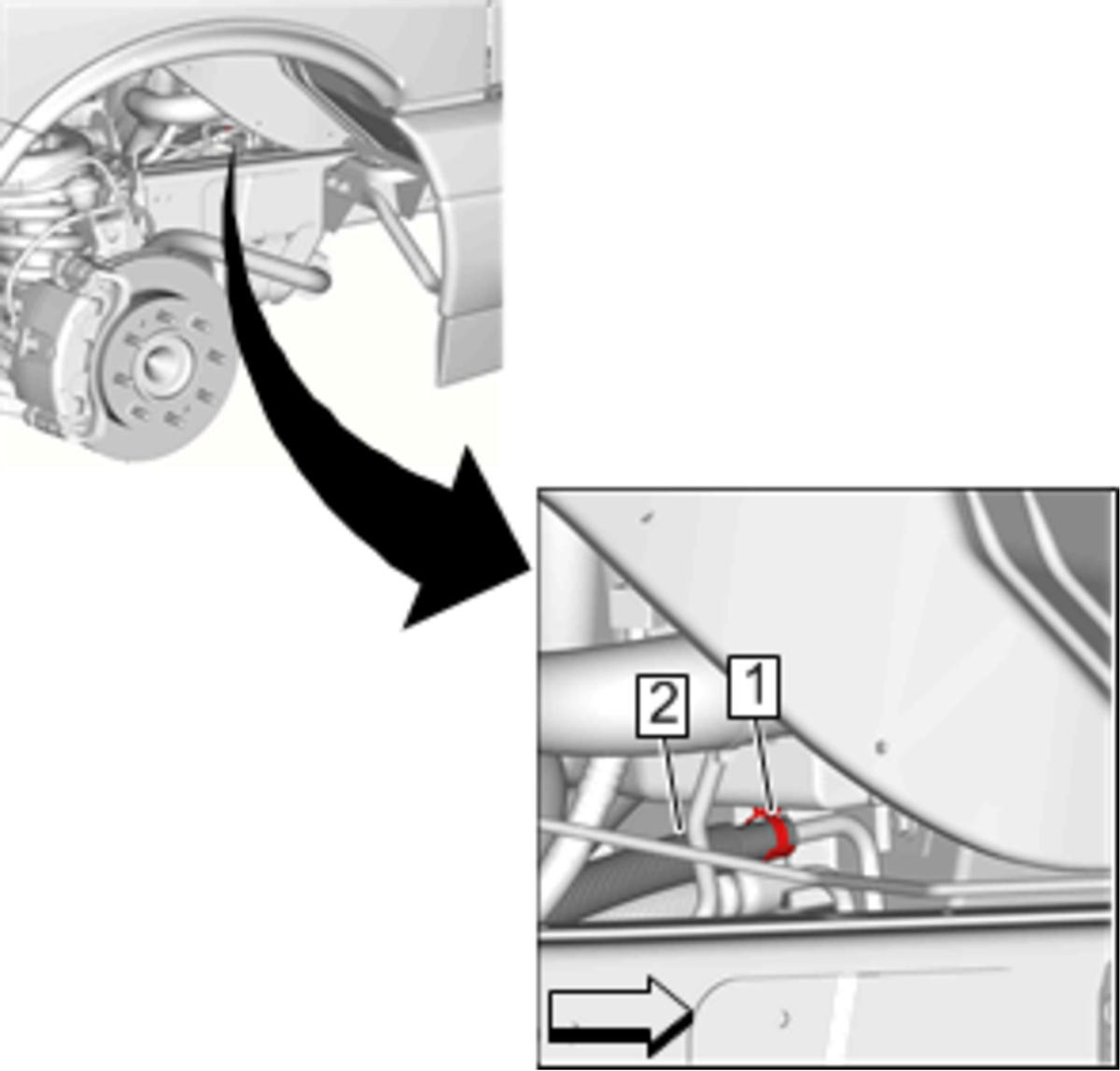

Power Steering Fluid Reservoir Inlet Hose(2) @ Power Steering Gear Outlet Hose - Install
- Power Steering Fluid Reservoir Inlet Hose Clamp(1) @ Power Steering Gear Outlet Hose - Engage

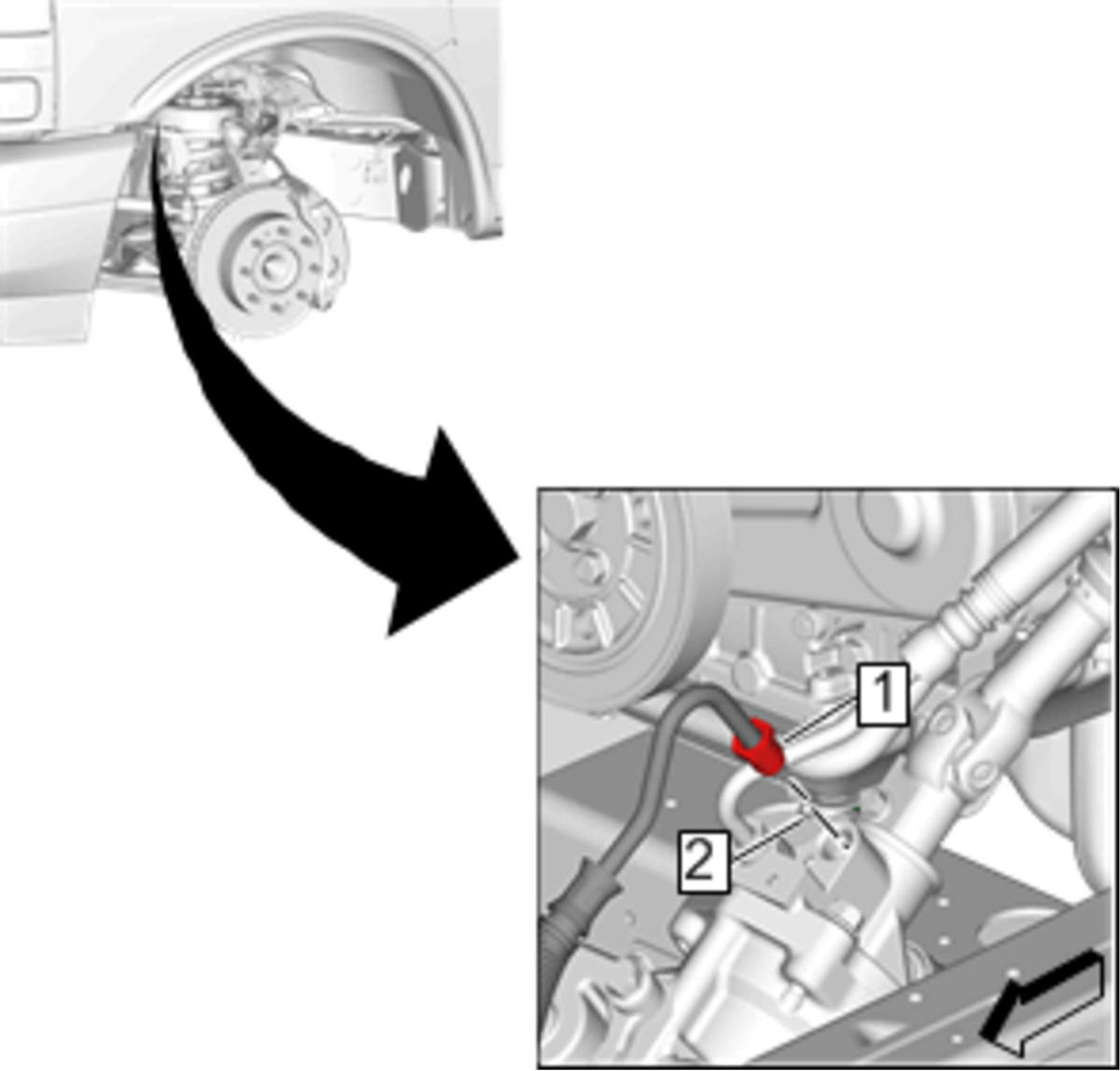

Install a NEW power steering gear outlet hose seal (2) on the power steering gear outlet hose.
Apply a small amount of power steering fluid on the seal to aid in installation.
- Power Steering Gear Outlet Hose(1) @ Steering Gear - Install and tighten34 N.m (25 lb ft)
- Engine Protection Shield - Install - Engine Protection Shield Replacement
- Front Wheelhouse Splash Shield-Right Side - Install - Wheelhouse Splash Shield Replacement (Left Side) , or Wheelhouse Splash Shield Replacement (Right Side)
- Front Wheelhouse Splash Shield-Left Side - Install - Wheelhouse Splash Shield Replacement (Left Side) , or Wheelhouse Splash Shield Replacement (Right Side)
- Fill and bleed the power steering system. Power Steering System Bleeding
CAUTION:
Refer to Fastener Caution .
CAUTION:
Refer to Component Fastener Tightening Caution .
