Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Position the power steering fluid reservoir (2) on the vehicle.
- Power Steering Fluid Reservoir Nut (1) - Install and tighten[2x]8 N.m (71 lb in)

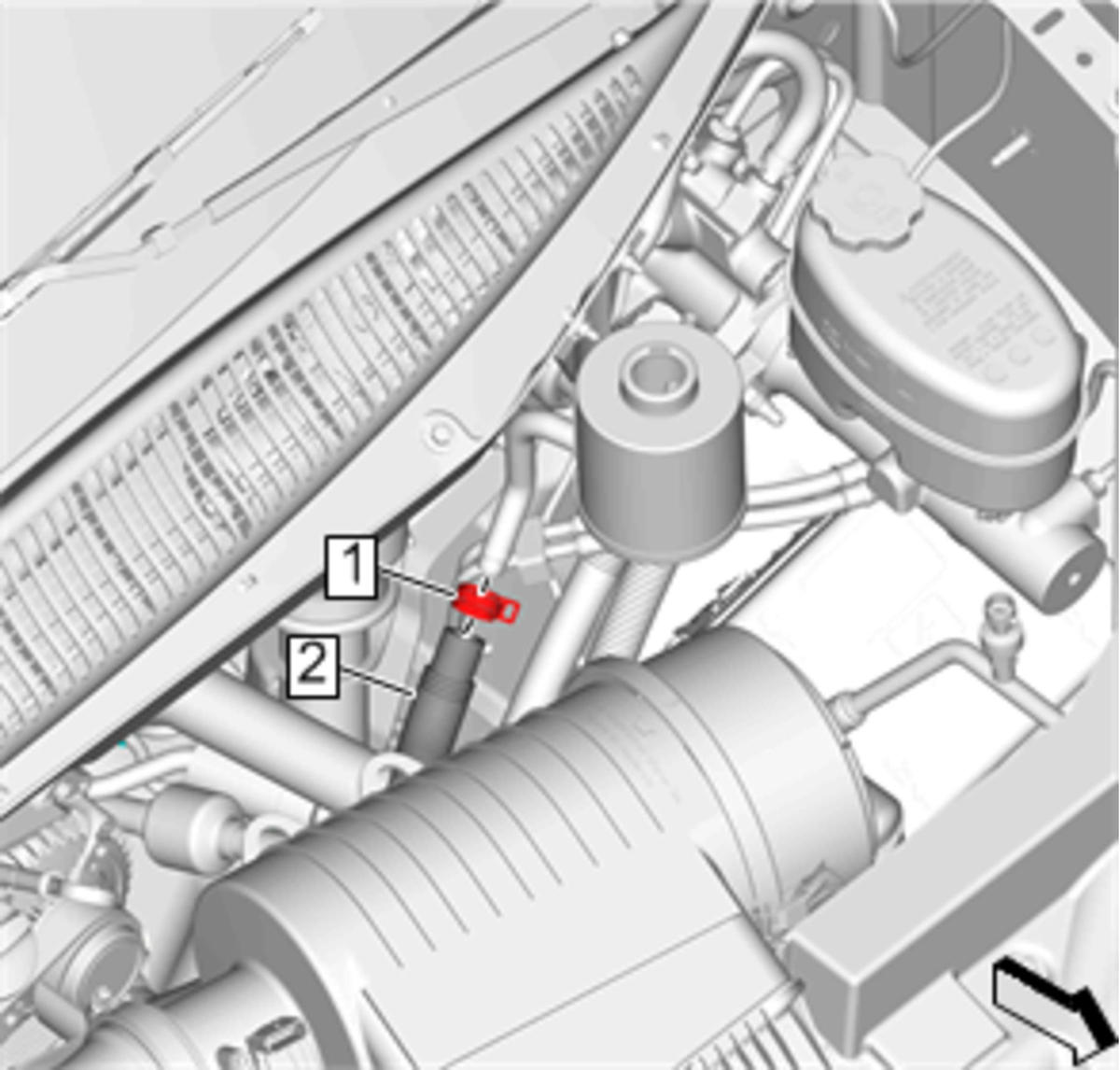

Power Steering Fluid Reservoir Outlet Hose(2) @ Power Steering Fluid Reservoir - Install
- Power Steering Fluid Reservoir Outlet Hose Clamp(1) @ Power Steering Fluid Reservoir - Engage

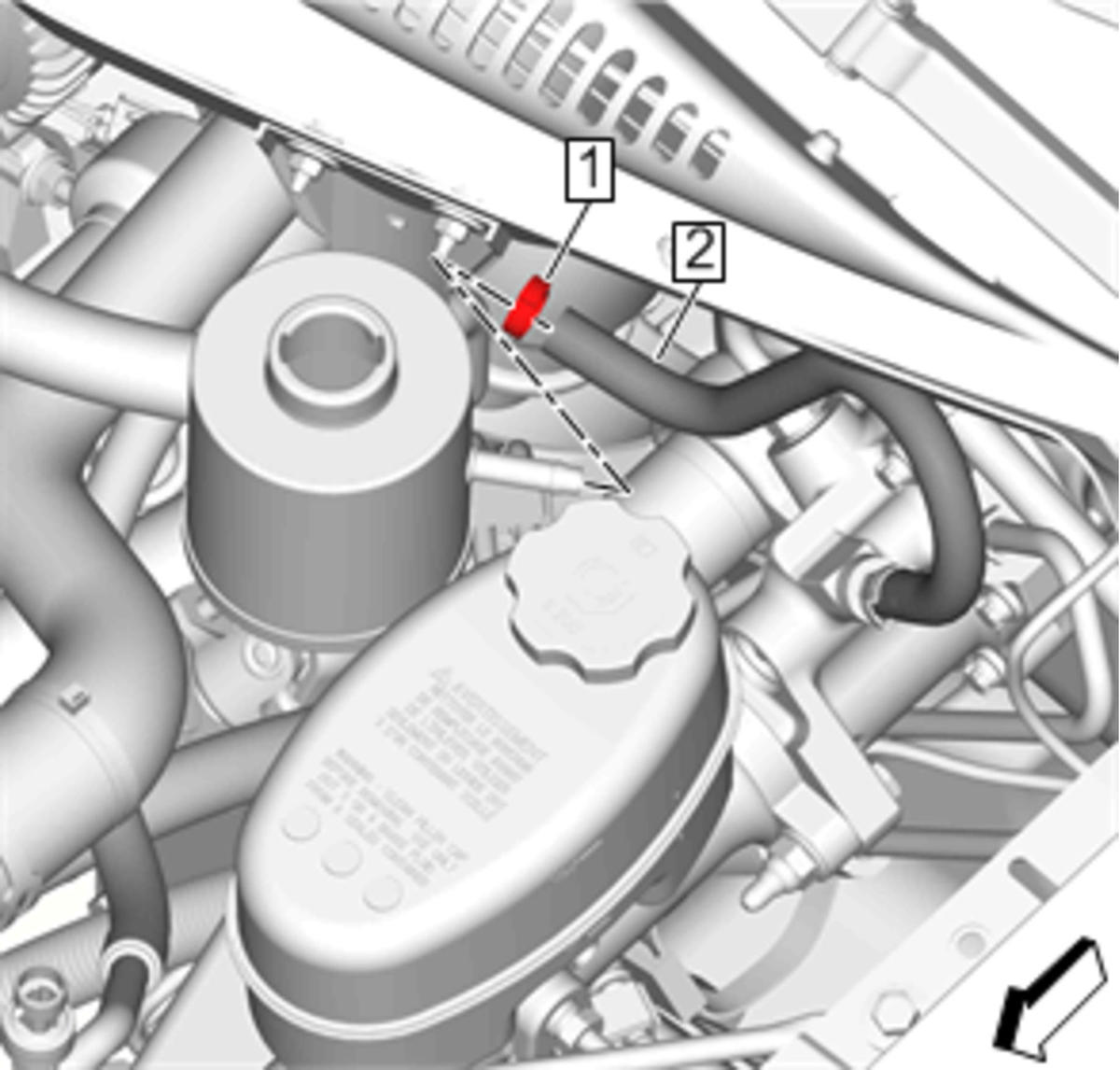

Power Brake Booster Outlet Hose(2) @ Power Steering Fluid Reservoir - - Install
- Power Brake Booster Outlet Hose Clamp(1) @ Power Steering Fluid Reservoir - Install Power Brake Booster Outlet Hose Replacement (With LWN, Booster to Reservoir) , or Power Brake Booster Outlet Hose Replacement (With LWN, Booster to Gear) , or Power Brake Booster Outlet Hose Replacement (Without LWN, Booster to Reservoir) , or Power Brake Booster Outlet Hose Replacement (Without LWN, Booster to Gear)
Install a NEW clamp.
- Charge Air Cooler Outlet Air Hose - Install - Charge Air Cooler Outlet Air Hose Replacement
- Fill and bleed the power steering system. Power Steering System Bleeding
CAUTION:
Refer to Fastener Caution .
